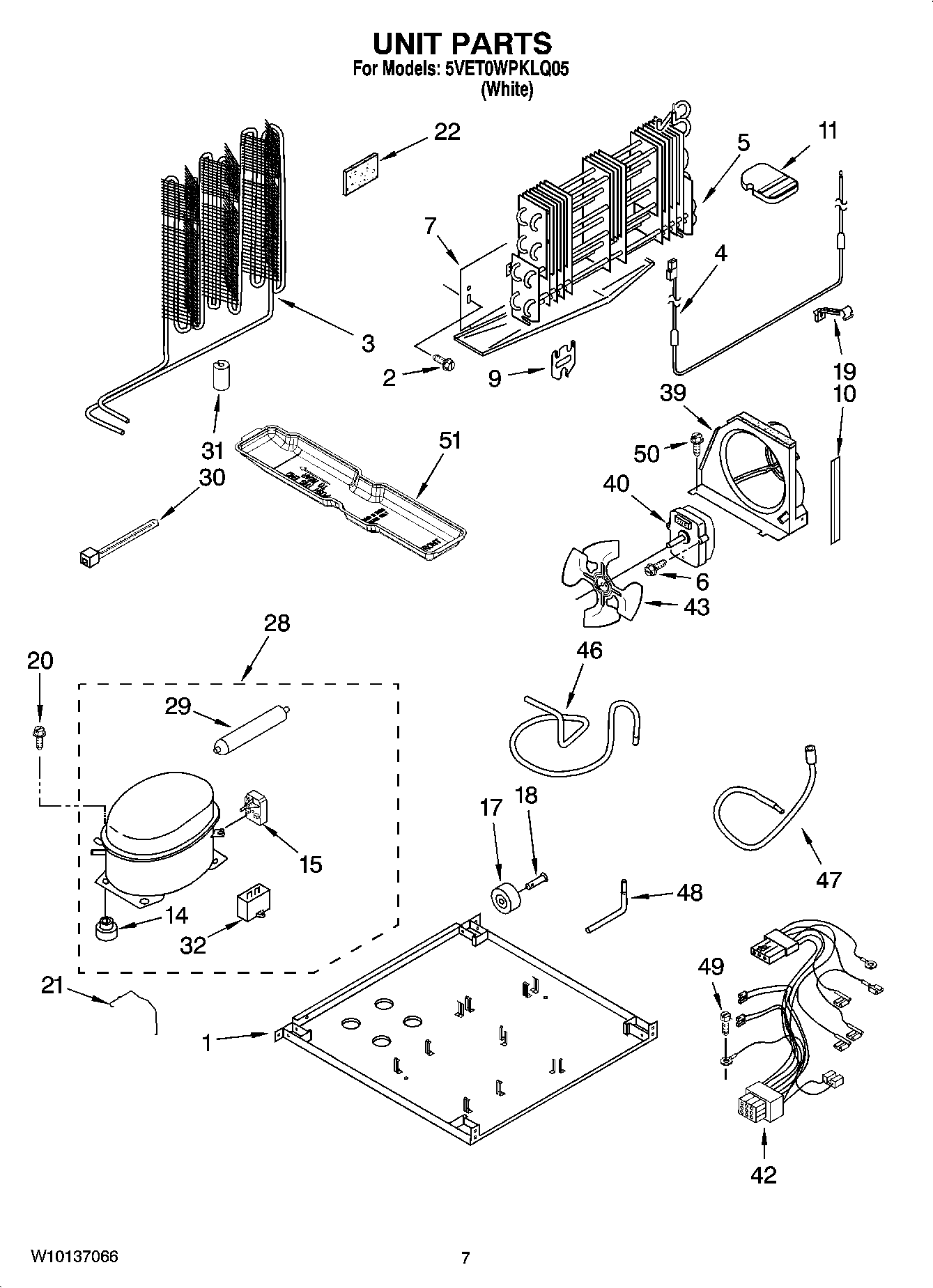

5VET0WPKLQ05 04 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 4.23 Ozs. (R134A)
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
	WP978025 Whirlpool Refrigerator Valve
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	WP2214960 Whirlpool Refrigerator Condenser
4	W10123579 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	Support Block
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	2321301 Whirlpool Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Strap, Bale
22	W11553819 Whirlpool Refrigerator Insulation
28	W10170300 Whirlpool Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	W10852725 Whirlpool Refrigerator Grommet
32	WP2201147 Whirlpool Refrigerator Capacitor
32	2321245 Whirlpool Refrigerator Capacitor
39	Air Baffle
40	WP2321271 Whirlpool Refrigerator Condenser Motor
42	Wire Assembly, Unit
43	W11458267 Whirlpool Refrigerator Fan Blade
46	2205533 Whirlpool Refrigerator Tube
47	2214924 Whirlpool Refrigerator Tube
48	2154109 Whirlpool Refrigerator Tube
49	WP489128 Whirlpool Refrigerator Screw
50	3400518 Whirlpool Oven Foot Mount Screw
51	WP2254574 Whirlpool Refrigerator Evaporator Tray
