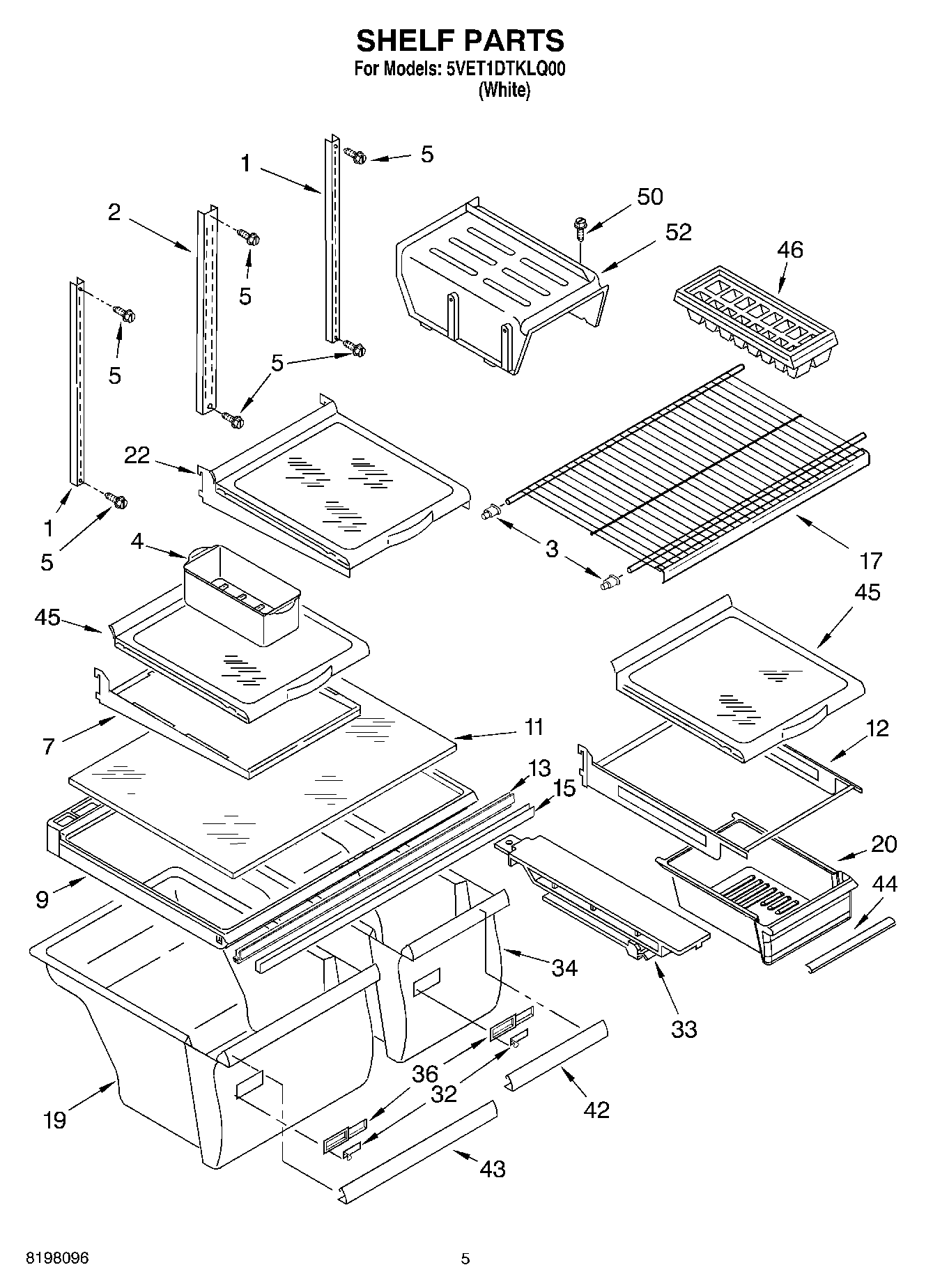

| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder |
| 3 | 2163762 Whirlpool Refrigerator Cup Assembly |
| 4 | W10136387A Whirlpool Refrigerator Egg Container |
| 7 | Frame Assembly, Shelf (3) |
| 9 | WP2314548 Whirlpool Refrigerator Cover |
| 11 | WP2169921 Whirlpool Refrigerator Glass Shelf |
| 12 | Frame Assembly, Meat Shelf |
| 13 | Gasket, Crisper Cover |
| 15 | WP2172748 Whirlpool Drawer Support |
| 17 | WP2176275 Whirlpool Refrigerator Wire Shelf |
| 19 | W10854037 Whirlpool Refrigerator Crisper Pan |
| 20 | PAN-MEAT |
| 22 | Shelf, Assembly Spillguard (4) |
| 32 | WP2176222 Whirlpool Refrigerator Slide |
| 33 | WP2163835 Whirlpool Track Assembly |
| 34 | W10856580 Whirlpool Crisper Pan |
| 36 | WP2212446 Whirlpool Refrigerator Control Body |
| 42 | Trim, Crisper Pan |
| 43 | WP2195341 Whirlpool Refrigerator Pan Trim |
| 44 | Trim, Meat Pan |
| 45 | Shelf, Assembly Spillguard (4) |
| 46 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 50 | WP489478 Whirlpool Refrigerator Screw |
| 52 | Shelf, Ice Tray |
