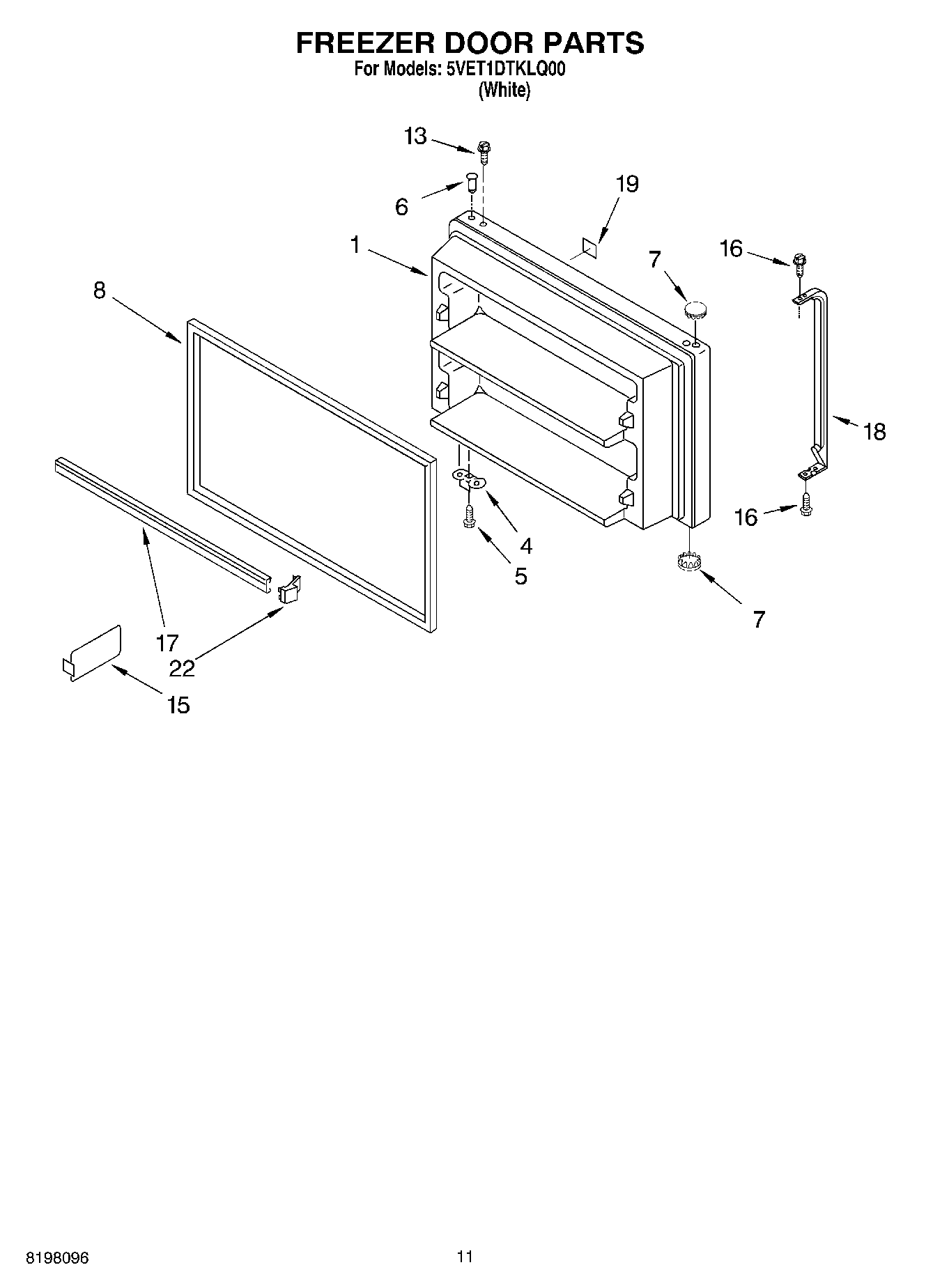

5VET1DTKLQ00 06 – FREEZER DOOR, OPTIONAL

Products

Position	Product
1	Freezer Door (Includes Illus. 2,6 & 8)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
13	WP8281206 Whirlpool Refrigerator Screw
15	Divider-Door
16	WP489357 Whirlpool Recessed Screw
17	Trim-Door (2)
18	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
19	Nameplate (White)
22	285006 Whirlpool Spray
22	WPL 799833
22	WPL 876029
22	WP505587 Whirlpool Refrigerator Sealer
22	WPW10190943 Whirlpool Refrigerator Icemaker
22	ENDCAP
22	Almond (Uncut)
22	72032 Whirlpool Touch Up Paint Black
22	WPL 799832
22	Enamel, Black (1 Qt. Uncut)
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	350956 Whirlpool Spray Assembly
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	WP72107 Whirlpool Touchup
22	212643 Whirlpool Refrigerator Permagum Sealer
22	350942 Whirlpool Spray Paint
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	4392901 Whirlpool Biscuit Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP542638 Whirlpool Refrigerator Grease
22	Torx Key
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	TAPE, VINYL (3/4 X 108``)
22	350930 Whirlpool White Spray Paint
