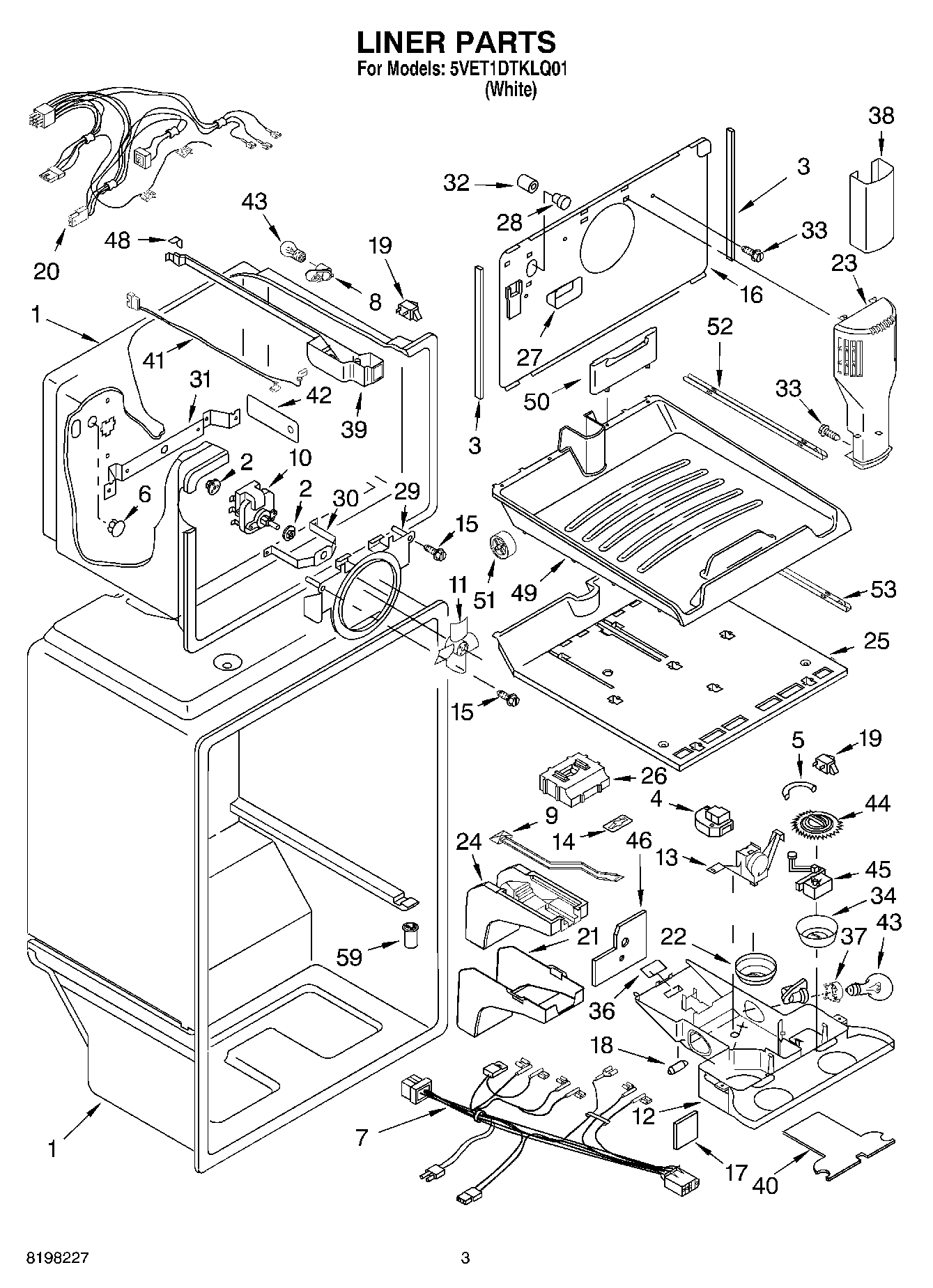

5VET1DTKLQ01 02 – LINER

5VET1DTKLQ01 02 – LINER

Written by

in

5VET1DTKLQ01 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2321259 Whirlpool Refrigerator Defrost Timer
5	Thermostat Tube Barrier
6	940014 Whirlpool Refrigerator Primary Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WP2321273 Whirlpool Refrigerator Evaporator Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	Clip, Defrost Timer
15	WP693995 Whirlpool Screw
16	Cover-Evaporator
17	Foil, Control Box
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	Cover, Hole
28	WP941839 Whirlpool Refrigerator Button Plug
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	Bracket, Evap. Fan, Rear
32	WP487996 Whirlpool Refrigerator Cap Tube
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2175210 Whirlpool Refrigerator Shroud
38	Sleeve
39	Housing Base
40	Shield
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	WP67002552 Whirlpool Refrigerator Light Bulb
44	Post, Damper
45	Bracket, Damper Knob
46	Shield, heat
48	Gasket, Rear
49	Pullout, Freezer Floor (Includes Item 56)
50	REAR FENCE PULL-OUT FREEZER FLOOR
51	Roller, Slide
52	Side Support, Floor Assembly
53	Center Support, Floor Assembly
59	WP2210509 Whirlpool Refrigerator Tub Valve
