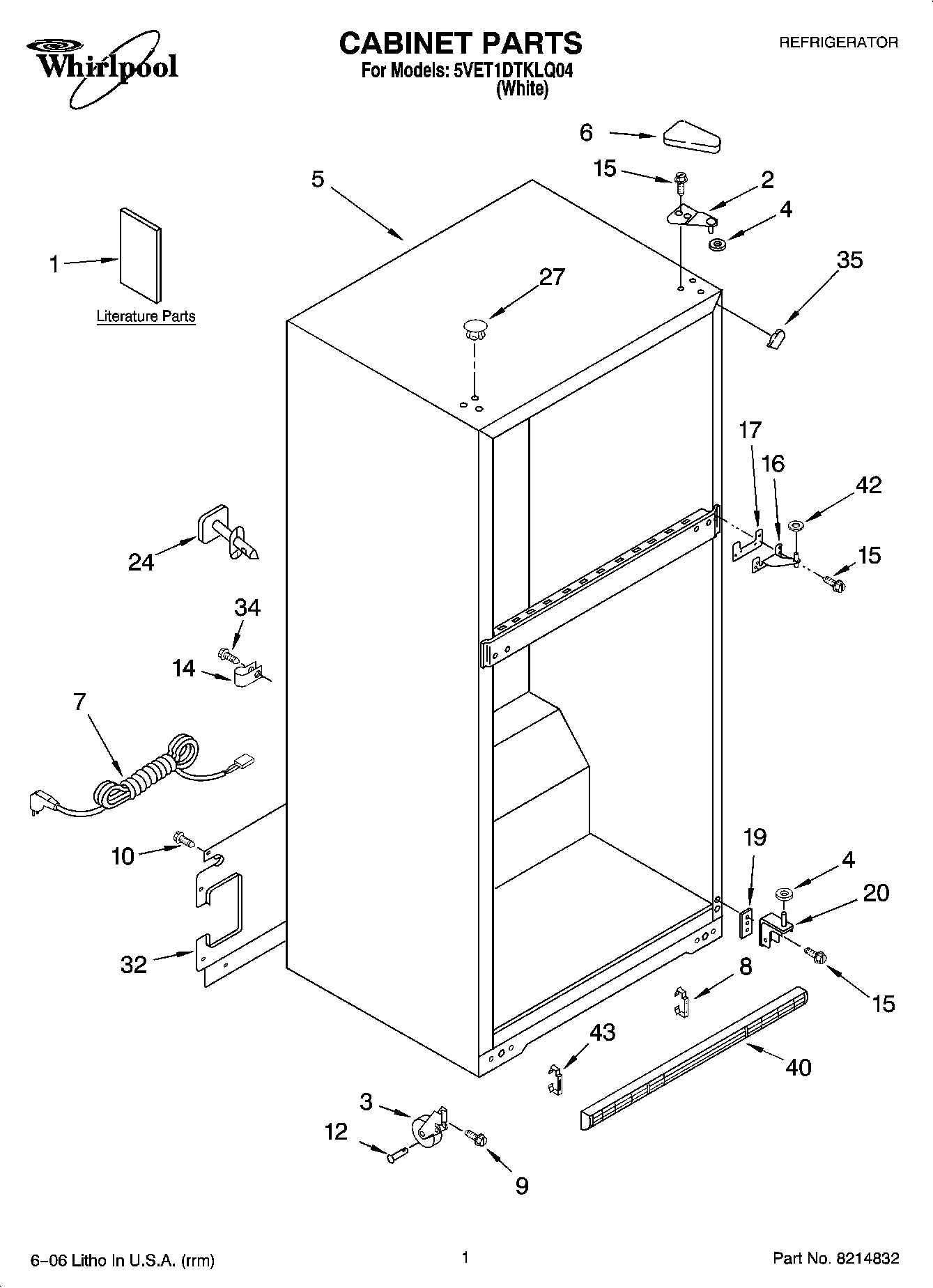

5VET1DTKLQ04 01 – CABINET PARTS

5VET1DTKLQ04 01 – CABINET PARTS

Written by

in

5VET1DTKLQ04 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Serivce & Wiring Sheet
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP487576 Whirlpool Washer
5Cabinet, (Not A Serviceable Part)
6WP2213360 Whirlpool Refrigerator Cover
7Service Cord
82254385 Whirlpool Refrigerator Clip
9WP3400504 Whirlpool Refrigerator Screw
10WP489427 Whirlpool Refrigerator Screw
12W11594405 Whirlpool Axle
14489348 Whirlpool Refrigerator Tube Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
19Shim, Bottom Hinge
20WP2254473 Whirlpool Refrigerator Door Hinge
24Fitting, Water Tube (Not Serviced)
27WP2151652 Whirlpool Refrigerator Button Plug
32WP2189475 Whirlpool Refrigerator Unit Cover
34WP489464 Whirlpool Refrigerator Screw
35WPW10283959 Whirlpool Refrigerator Filler
40WP2254386 Whirlpool Refrigerator Grille
42WP489467 Whirlpool Hinge Shim
43CLIP, GRILLE
