5VET2WPKLQ01 03 – LINER

5VET2WPKLQ01 03 – LINER

Written by

in

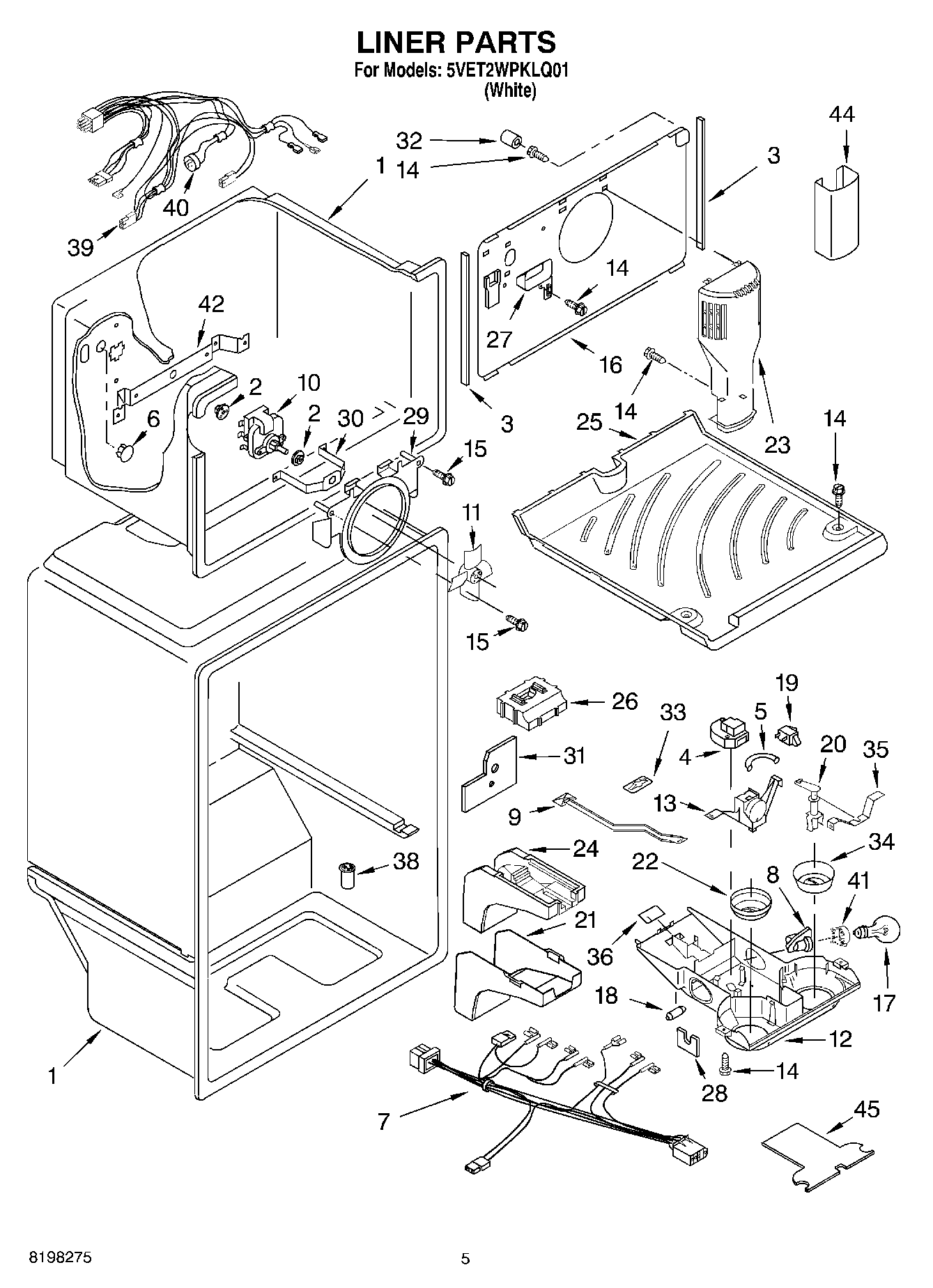

5VET2WPKLQ01 03 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Timer, Defrost
5Thermostat Tube Barrier
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WP2321273 Whirlpool Refrigerator Evaporator Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
14WP489478 Whirlpool Refrigerator Screw
15WP693995 Whirlpool Screw
16Cover, Evaporator
17WP67002552 Whirlpool Refrigerator Light Bulb
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Post, Damper
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Floor, Freezer
26AIR SEPARATOR ASSEMBLY
27Cover, Hole
28Foil, Control Box
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
31Shield, heat
32WP487996 Whirlpool Refrigerator Cap Tube
33Clip, Defrost Timer
34Knob, Damper
35Bracket, Damper Knob
36WP2205079 Whirlpool Refrigerator Seal
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly, Freezer Compartment
40WP2182381 Whirlpool Refrigerator Bimetallic Defrost
41WP2175210 Whirlpool Refrigerator Shroud
42Bracket, Evap. Fan, Rear
44Sleeve
45Shield
