5VET2WPKLQ01 04 – UNIT

5VET2WPKLQ01 04 – UNIT

Written by

in

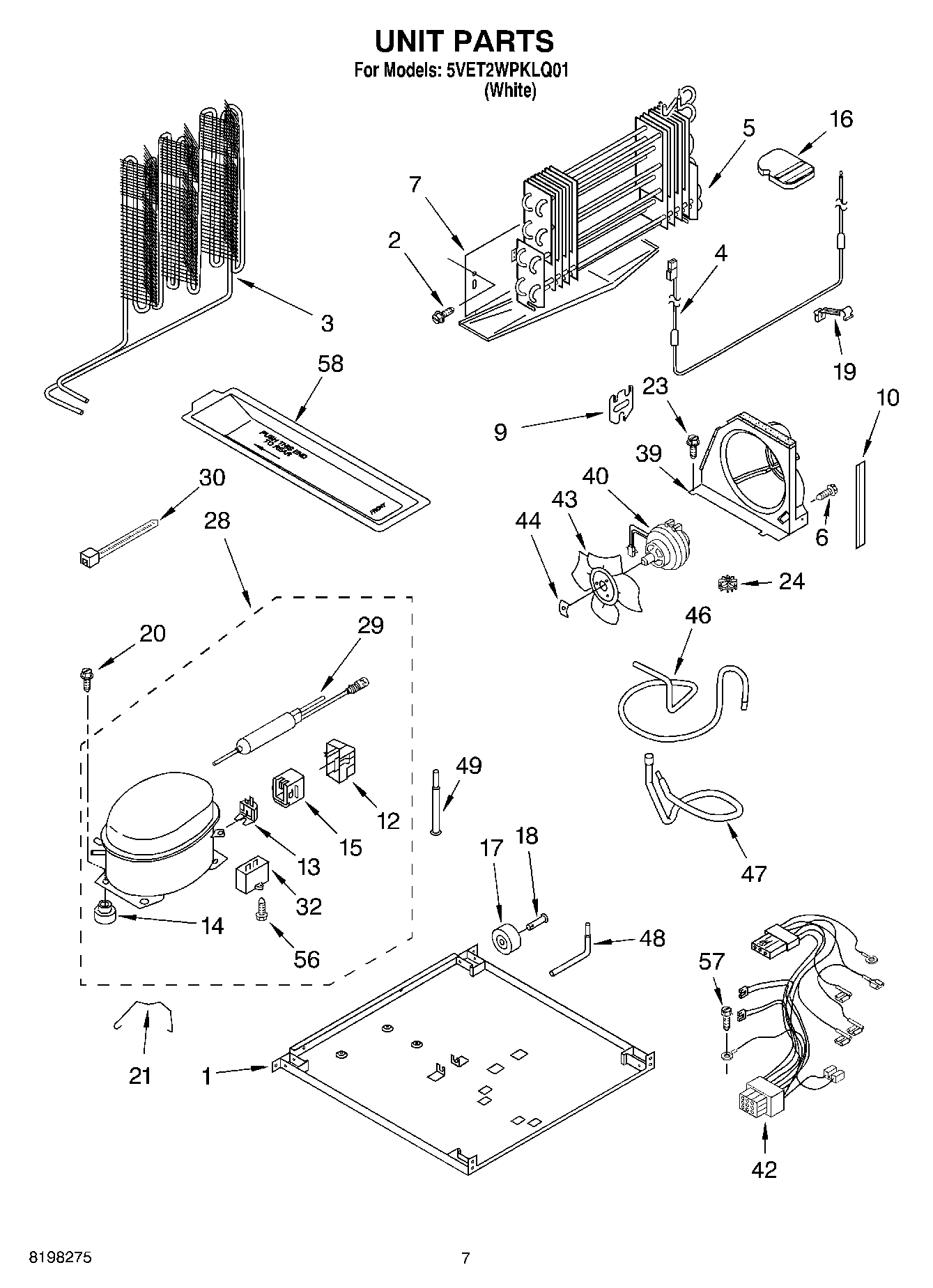

5VET2WPKLQ01 04 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	WP2214960 Whirlpool Refrigerator Condenser
4	Heater, Defrost
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
12	WP61002138 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	Start-Device Combination (Start Relay and Overload for Production Compressor Only)
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	STRAP
23	3400518 Whirlpool Oven Foot Mount Screw
24	Grommet
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Compressor (Includes Items 12, 13, 14, 15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WP2201147 Whirlpool Refrigerator Capacitor
32	2321245 Whirlpool Refrigerator Capacitor
39	Air Baffle
40	8201703 Whirlpool Refrigerator Condenser Motor
42	Wire Assembly, Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
46	2205533 Whirlpool Refrigerator Tube
47	2214924 Whirlpool Refrigerator Tube
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Transition
56	W11693756 Whirlpool Screw Assembly
57	WP489128 Whirlpool Refrigerator Screw
58	876764 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (5/8“)
58	978026 Whirlpool Refrigerator Primary Valve
58	WP978025 Whirlpool Refrigerator Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	Evaporator Tray
58	VALVE, ACCESS (1/2“)
