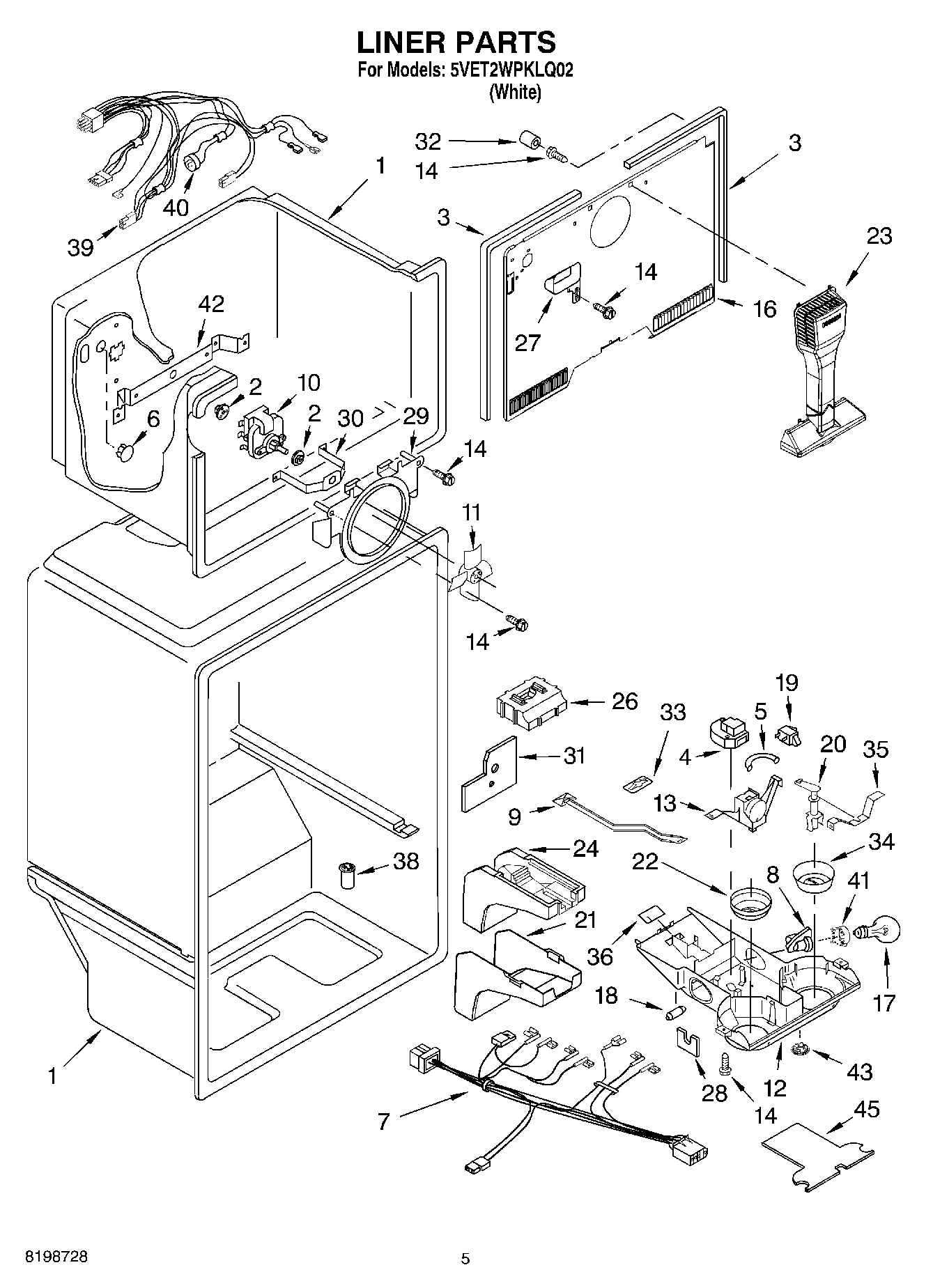

5VET2WPKLQ02 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Timer, Defrost
5	Thermostat Tube Barrier
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WP2321273 Whirlpool Refrigerator Evaporator Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	WP489478 Whirlpool Refrigerator Screw
15	WP693995 Whirlpool Screw
16	Cover, Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	AIR SEPARATOR ASSEMBLY
27	Cover, Hole
28	Foil, Control Box
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	Shield, heat
32	WP487996 Whirlpool Refrigerator Cap Tube
33	Clip, Defrost Timer
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
38	WP2210509 Whirlpool Refrigerator Tub Valve
39	Wire Assembly, Freezer Compartment
40	WP2182381 Whirlpool Refrigerator Bimetallic Defrost
41	WP2175210 Whirlpool Refrigerator Shroud
42	Bracket, Evap. Fan, Rear
43	940014 Whirlpool Refrigerator Primary Button Plug
45	Shield
