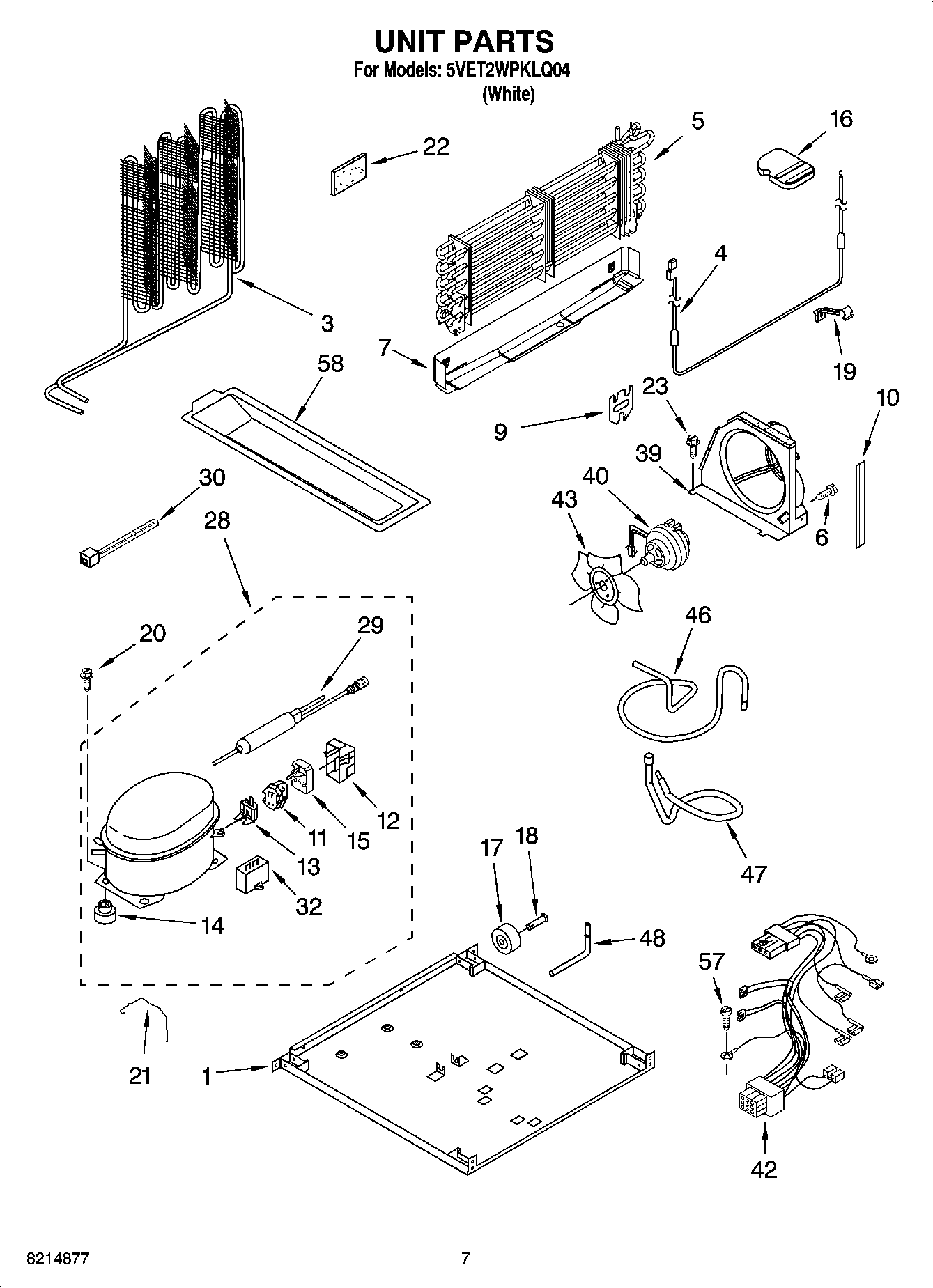

5VET2WPKLQ04 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
3	WP2214960 Whirlpool Refrigerator Condenser
4	Heater, Defrost
5	EVAPORATOR ASSY.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	WP2262184 Whirlpool Refrigerator Start Relay
12	WP61002138 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	Start-Device, Combination (Start Relay and Overload for Production Compressor Only)
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Strap, Bale
22	W11553819 Whirlpool Refrigerator Insulation
23	3400518 Whirlpool Oven Foot Mount Screw
28	Compressor (Includes Items 12, 13, 14, 15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	2321245 Whirlpool Refrigerator Capacitor
32	WP2201147 Whirlpool Refrigerator Capacitor
39	Air Baffle
40	WP2321271 Whirlpool Refrigerator Condenser Motor
42	Wire Assembly, Unit
43	W11458267 Whirlpool Refrigerator Fan Blade
46	2205533 Whirlpool Refrigerator Tube
47	2214924 Whirlpool Refrigerator Tube
48	2154109 Whirlpool Refrigerator Tube
57	WP489128 Whirlpool Refrigerator Screw
58	Following Parts Not Illustrated and Optional Parts Not Included
58	8201826 Whirlpool Refrigerator Evaporator Tray
58	REFRIGERANT CHARGE 4.23 Ozs. (R134A)
58	876764 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
58	978030 Whirlpool Refrigerator Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (5/8“)
