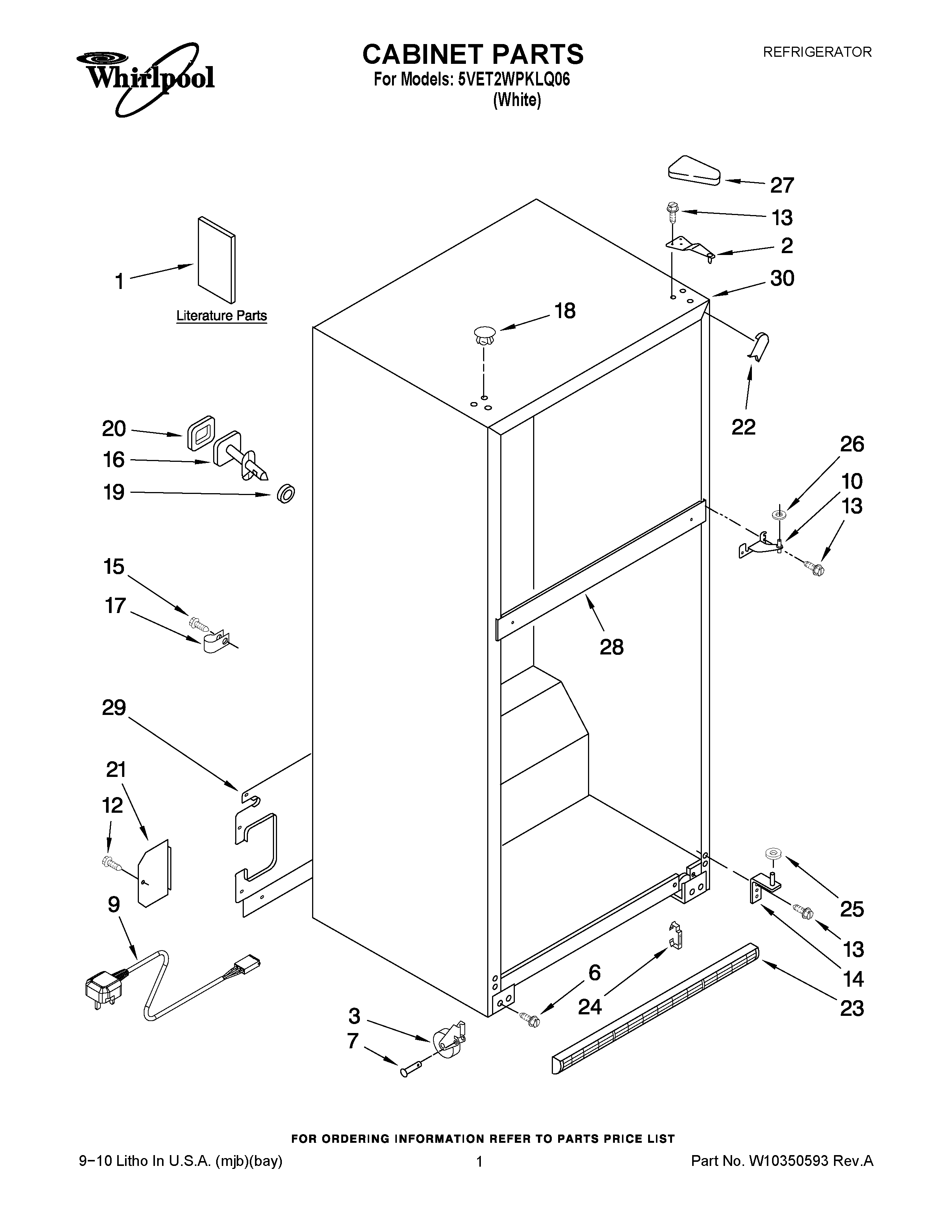

5VET2WPKLQ06 01 – CABINET PARTS

5VET2WPKLQ06 01 – CABINET PARTS

Written by

in

5VET2WPKLQ06 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
6WP3400504 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
9W10123575 Whirlpool Refrigerator Power Cord
10WP2254618 Whirlpool Center Door Hinge
12WP489464 Whirlpool Refrigerator Screw
13WP489497 Whirlpool Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
17489348 Whirlpool Refrigerator Tube Clamp
18WP2151652 Whirlpool Refrigerator Button Plug
21Cover, Water Valve
22WPW10283959 Whirlpool Refrigerator Filler
23Grille (White)
24CLIP, GRILLE
25WP487576 Whirlpool Washer
26WP489467 Whirlpool Hinge Shim
27WP2213360 Whirlpool Refrigerator Cover
29Cover, Unit
30CABINET (NOT A SERVICEABLE PART)
