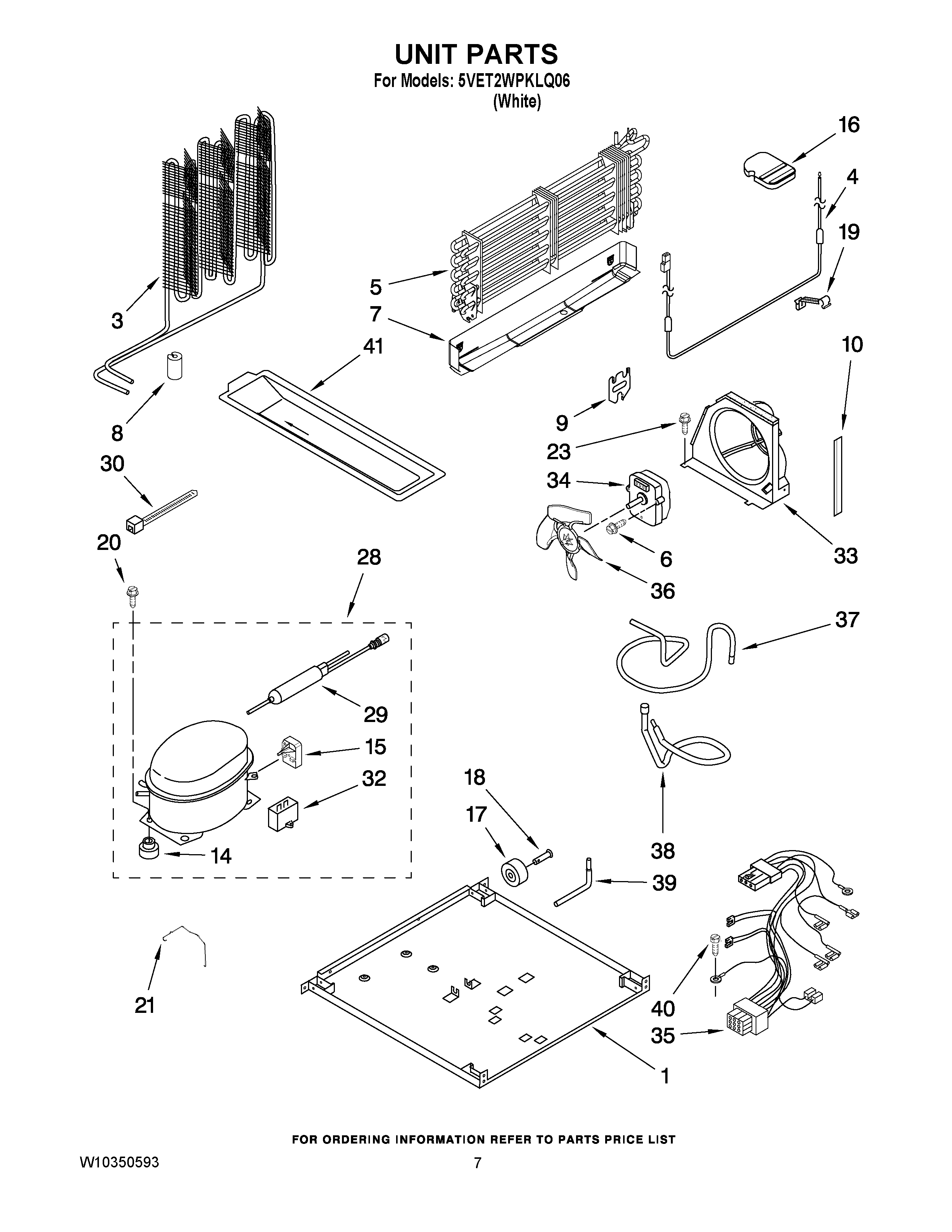

5VET2WPKLQ06 04 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	Plate, Unit Mounting
3	Condenser
4	W10123580 Whirlpool Heater
5	EVAPORATOR ASSY.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	2321301 Whirlpool Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Strap, Bale
23	3400518 Whirlpool Oven Foot Mount Screw
28	W10170300 Whirlpool Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	2321245 Whirlpool Refrigerator Capacitor
33	Air Baffle
34	WP2321271 Whirlpool Refrigerator Condenser Motor
35	Wire Assembly, Unit
36	W11458267 Whirlpool Refrigerator Fan Blade
37	TUBE, DISCHARGE
38	2214924 Whirlpool Refrigerator Tube
39	2154109 Whirlpool Refrigerator Tube
40	WP489128 Whirlpool Refrigerator Screw
41	WP2254574 Whirlpool Refrigerator Evaporator Tray
