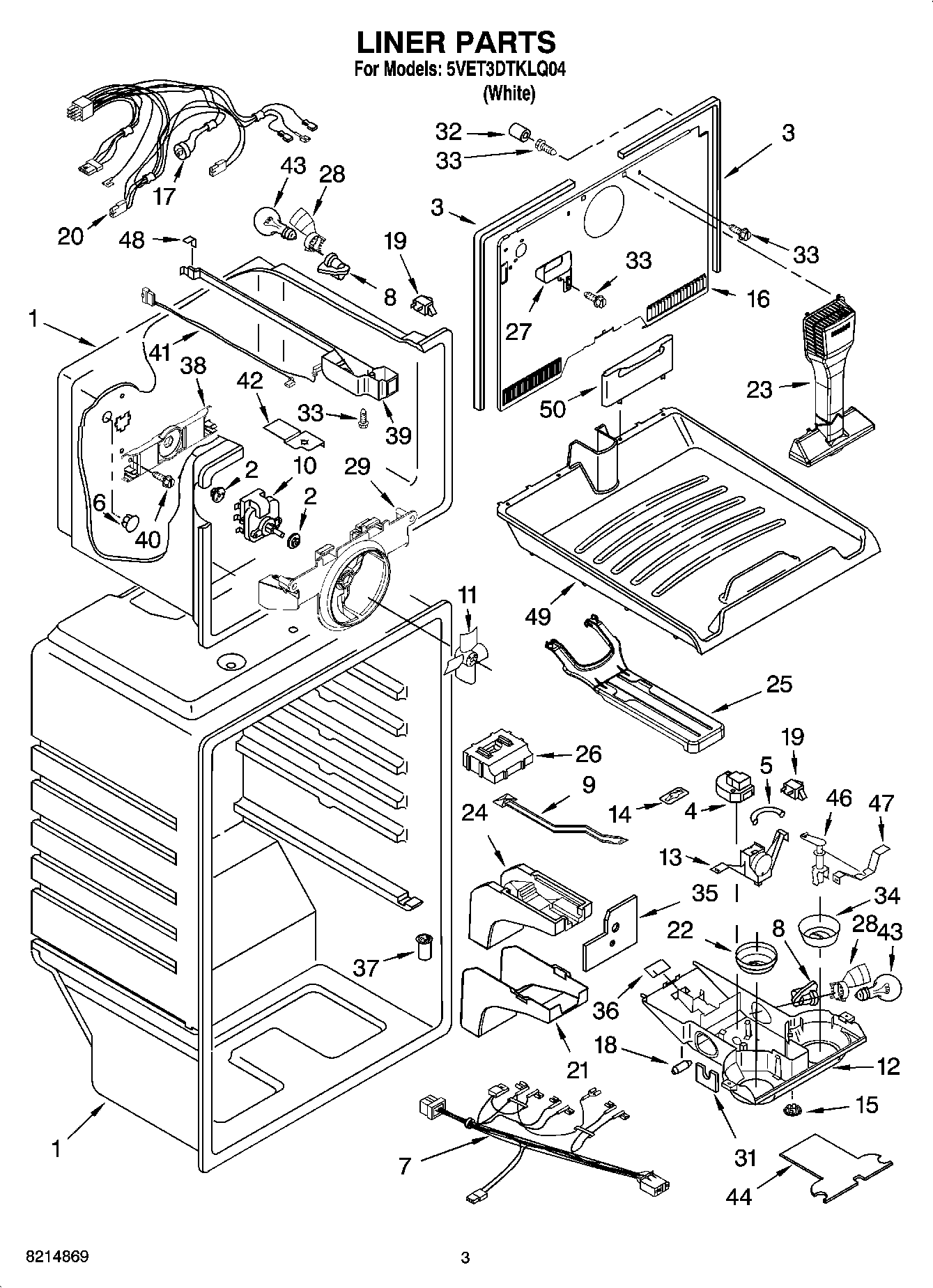

5VET3DTKLQ04 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Timer, Defrost
5	Thermostat Tube Barrier
6	WP941839 Whirlpool Refrigerator Button Plug
7	2310174 Whirlpool Refrigerator Wire Harness
8	Shroud, Freezer Light
9	Damper, Air
10	WP2321273 Whirlpool Refrigerator Evaporator Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	Clip, Defrost Timer
15	940014 Whirlpool Refrigerator Primary Button Plug
16	Cover, Evaporator
17	WP2182381 Whirlpool Refrigerator Bimetallic Defrost
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, F.C. (Includes Item 40)
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Retainer, Freezer Floor
26	AIR SEPARATOR ASSEMBLY
27	Cover, Hole
28	WP2175210 Whirlpool Refrigerator Shroud
29	BRACKET, FAN MOTOR
31	Foil, Control Box
32	WP487996 Whirlpool Refrigerator Cap Tube
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
35	Shield, heat
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2210509 Whirlpool Refrigerator Tub Valve
38	2254454 Whirlpool Refrigerator Bracket
39	Housing Base
40	WP488163 Whirlpool Refrigerator Screw
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	WP67002552 Whirlpool Refrigerator Light Bulb
44	Shield
46	Post, Damper
47	Bracket, Damper Knob
48	Gasket, Rear
49	Pullout, Freezer Floor
50	REAR FENCE PULL-OUT FREEZER FLOOR
