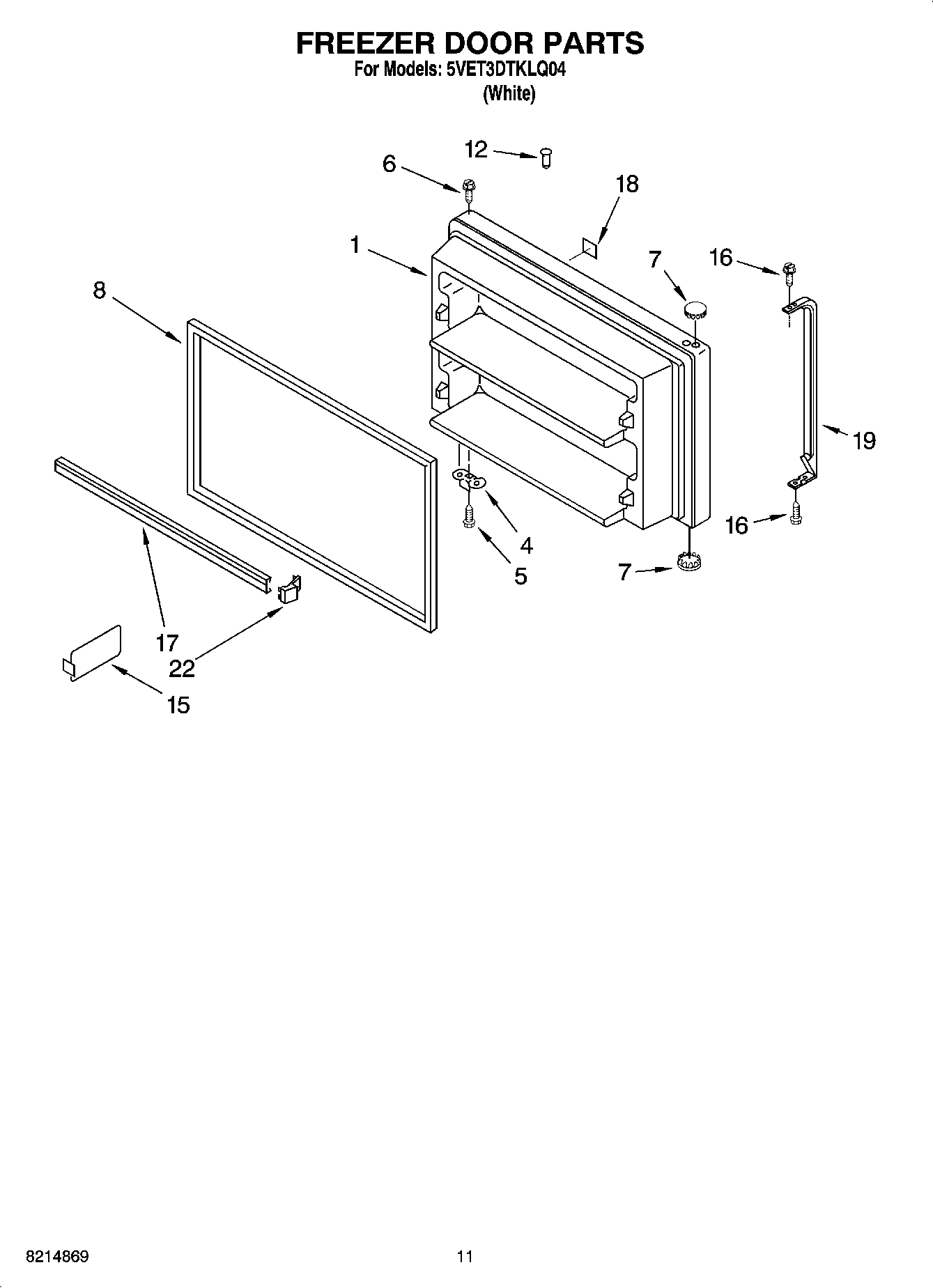

5VET3DTKLQ04 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI141344A
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI141345A
WPW10190943 Whirlpool Refrigerator Icemaker
WPL ARI141341A
WPL ARI141342A
WPL ARI141343A
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP542638 Whirlpool Refrigerator Grease
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
1Freezer Door (Includes No.8) (White)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
12WP2183003 Whirlpool Thimble
15Divider-Door
16WP489357 Whirlpool Recessed Screw
17Trim, Door Shelf (2)
18Nameplate (White)
194388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
22ENDCAP
