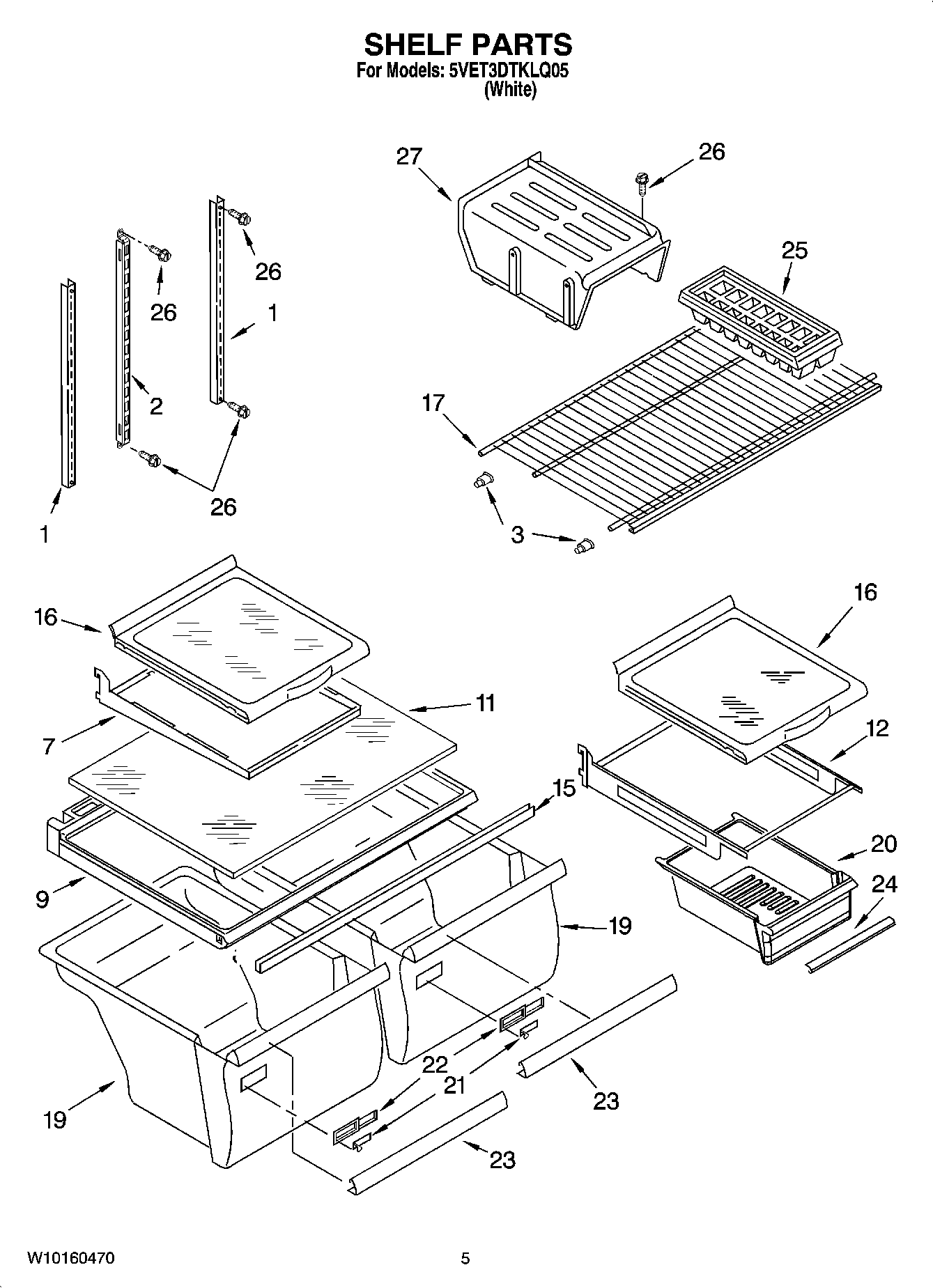

5VET3DTKLQ05 03 – SHELF PARTS

5VET3DTKLQ05 03 – SHELF PARTS

Written by

in

5VET3DTKLQ05 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
32163762 Whirlpool Refrigerator Cup Assembly
7Frame Assembly, Shelf
9WP2314549 Whirlpool Refrigerator Cover
11WP2176225 Whirlpool Glass Shelf
12Frame Assembly, Meat Shelf
15WP2172748 Whirlpool Drawer Support
16WP999520 Whirlpool Refrigerator Glass Shelf
17Shelf, Freezer
19W10854037 Whirlpool Refrigerator Crisper Pan
20WP2218132K Whirlpool Crisper Meat Pan
21WP2176222 Whirlpool Refrigerator Slide
22WP2212446 Whirlpool Refrigerator Control Body
23WP2195341 Whirlpool Refrigerator Pan Trim
24Trim, Meat Pan
25WP841180A Whirlpool Microwave Glass Turntable Tray
26WP489478 Whirlpool Refrigerator Screw
27Shelf, Ice Tray
