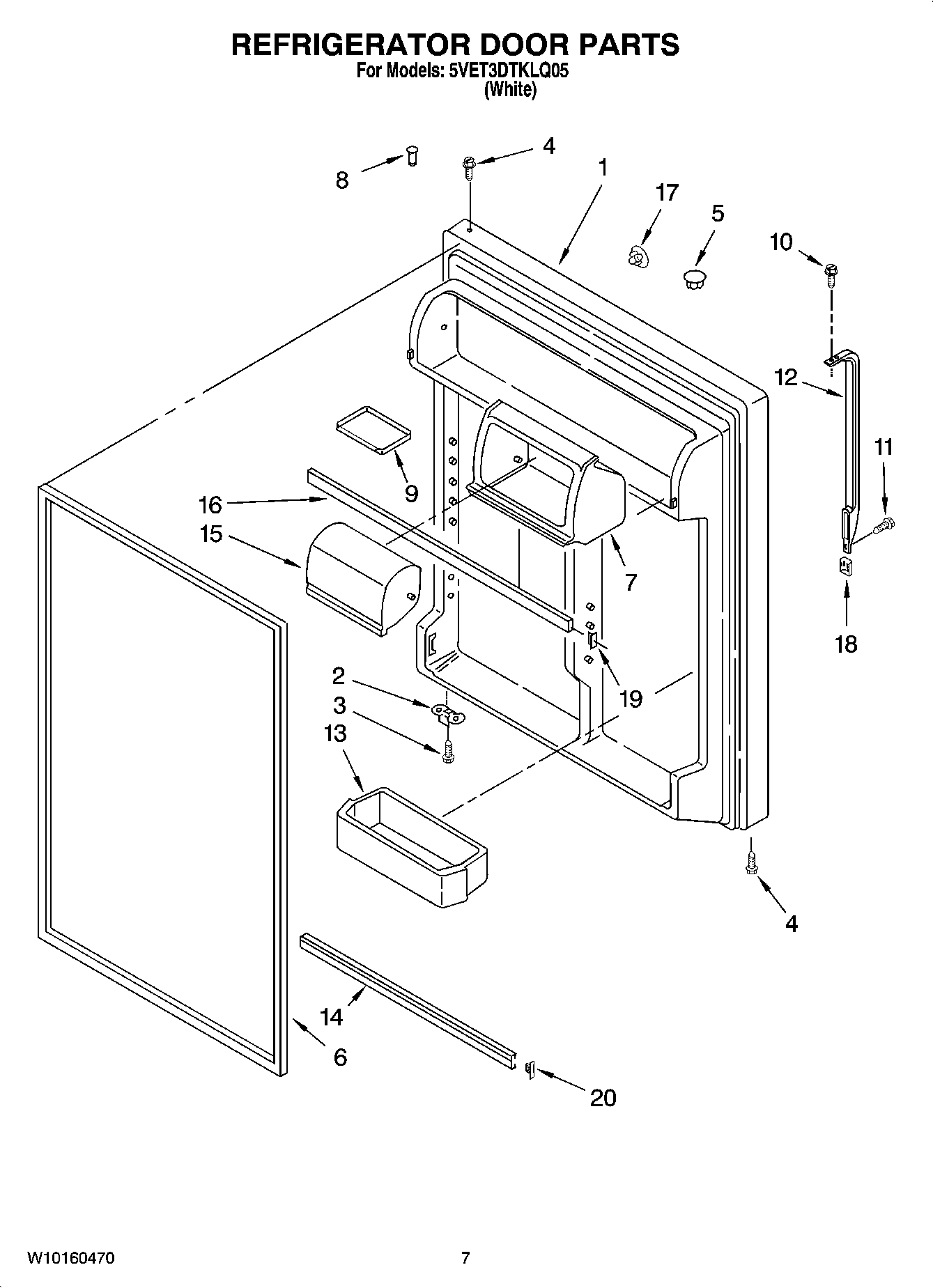

5VET3DTKLQ05 04 – REFRIGERATOR DOOR PARTS

5VET3DTKLQ05 04 – REFRIGERATOR DOOR PARTS

Written by

in

5VET3DTKLQ05 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes No.8 & No.12) (White)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4WP8281206 Whirlpool Refrigerator Screw
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
62159061 Whirlpool Refrigerator Door Gasket
7Housing Compartment
8WP2314293 Whirlpool Refrigerator Thimble
9Tray, Door
108534058 Whirlpool Refrigerator Screw
11WP8281146 Whirlpool Screw
124388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
13BIN-CNTLVR
14WPW10421486 Whirlpool Refrigerator Door Trim
15DOOR-COMP
16Trim, Door Shelf
17WP2189000 Whirlpool Refrigerator Handle Plug
18WP2193353W Whirlpool Refrigerator Trim Handle
19Endcap, Door Trim
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
