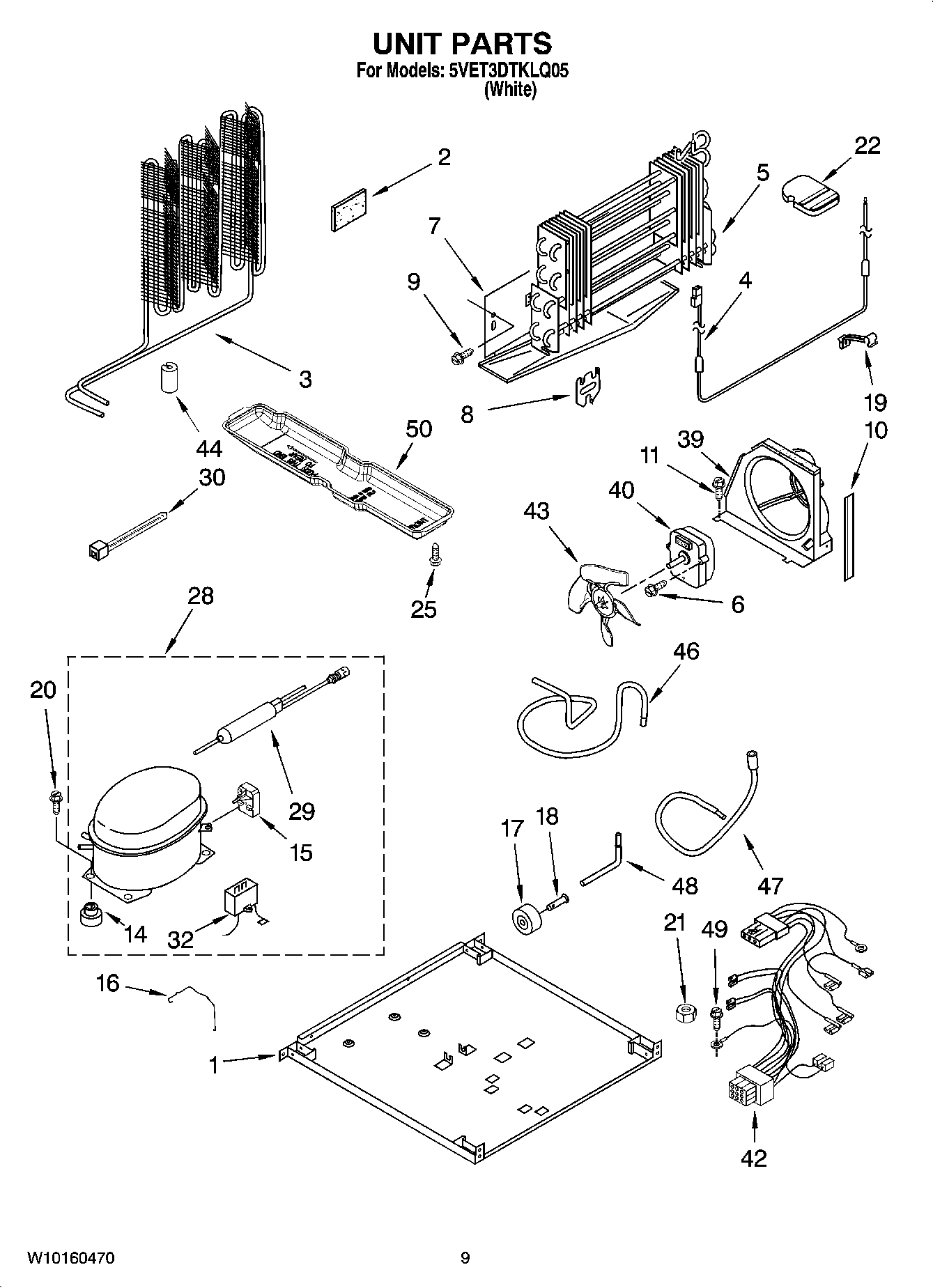

5VET3DTKLQ05 05 – UNIT PARTS

Products

Position	Product
	WP978025 Whirlpool Refrigerator Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 4.0 Ozs. (R134A)
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	W10123580 Whirlpool Heater
5	EVAPORATOR ASSY.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	WP489478 Whirlpool Refrigerator Screw
10	Extension, Air Baffle
11	3400518 Whirlpool Oven Foot Mount Screw
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	2321301 Whirlpool Start Device
16	Strap, Bale
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Nut (Not Serviced)
22	Support Block
25	W11693756 Whirlpool Screw Assembly
28	W10170300 Whirlpool Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	2321245 Whirlpool Refrigerator Capacitor
32	WP2201147 Whirlpool Refrigerator Capacitor
39	Air Baffle
40	WP2321271 Whirlpool Refrigerator Condenser Motor
42	Wire Assembly, Unit
43	W11458267 Whirlpool Refrigerator Fan Blade
44	W10852725 Whirlpool Refrigerator Grommet
46	2205533 Whirlpool Refrigerator Tube
47	2214924 Whirlpool Refrigerator Tube
48	2154109 Whirlpool Refrigerator Tube
49	WP489128 Whirlpool Refrigerator Screw
50	WP2254574 Whirlpool Refrigerator Evaporator Tray
