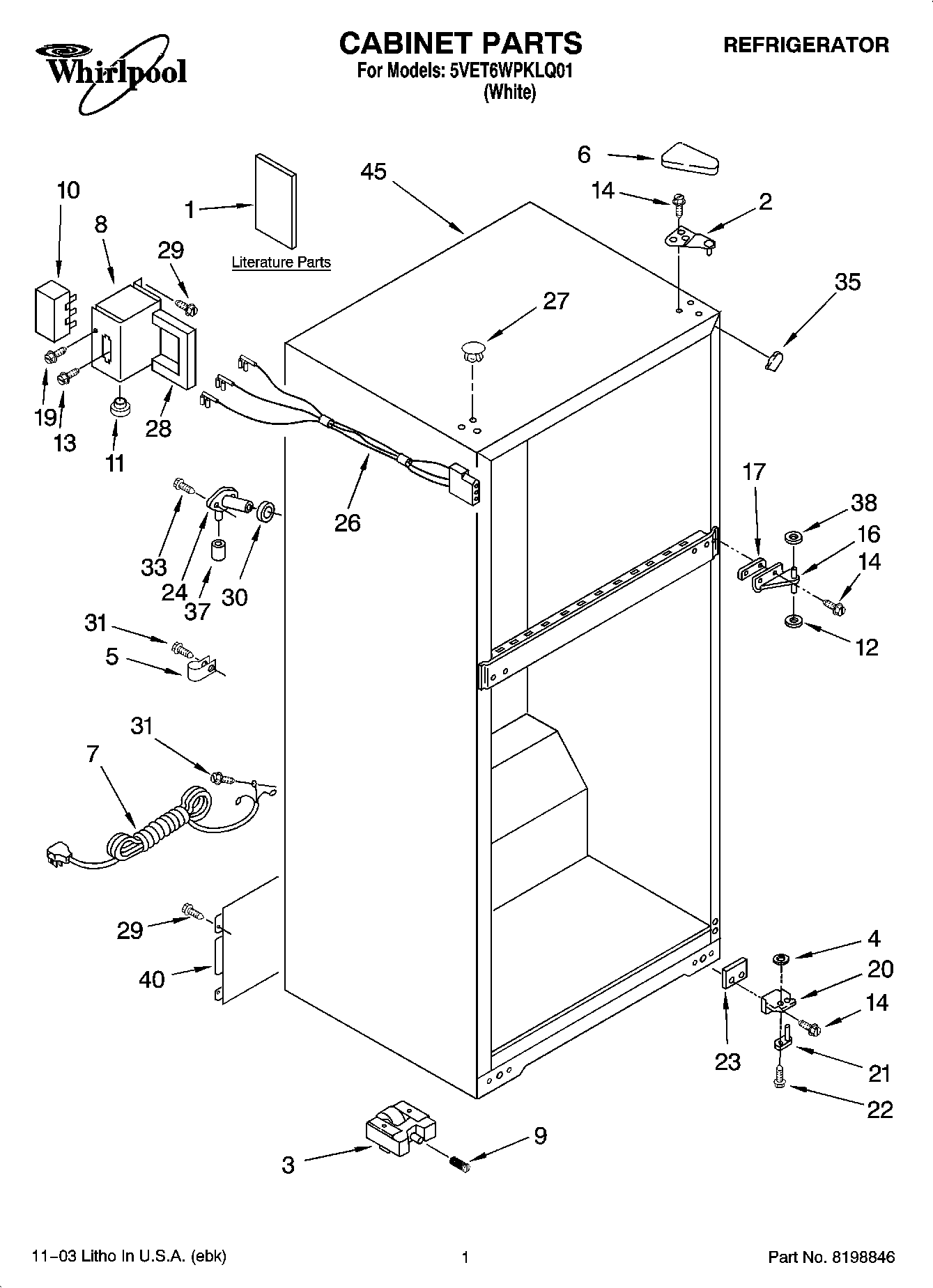

5VET6WPKLQ01 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Service & Wiring Sheet)
1	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Use & Care Guide)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP488296 Whirlpool Washer Refrigerator
5	489348 Whirlpool Refrigerator Tube Clamp
6	WP2213360 Whirlpool Refrigerator Cover
7	Service Cord
8	Enclosure, Terminal Block
9	2222100 Whirlpool Refrigerator Screw
10	Terminal Block
11	Bushing
12	WP489467 Whirlpool Hinge Shim
13	WPW10272364 Whirlpool Refrigerator Screw
14	WP489497 Whirlpool Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
19	WP489399 Whirlpool Refrigerator Screw
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	WP3428970 Whirlpool Refrigerator Screw
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
26	Wire Assembly
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Gasket
29	WP250830 Whirlpool Refrigerator Screw
30	WP1106508 Whirlpool Refrigerator Gasket
31	WP489442 Whirlpool Refrigerator Screw
33	WP488729 Whirlpool Refrigerator Door Screw
35	W10859322 Whirlpool Refrigerator Filler
37	WP487996 Whirlpool Refrigerator Cap Tube
38	WP487802 Whirlpool Refrigerator Washer
40	2213762 Whirlpool Refrigerator Unit Cover
45	Cabinet (Not A Serviceable Part)
