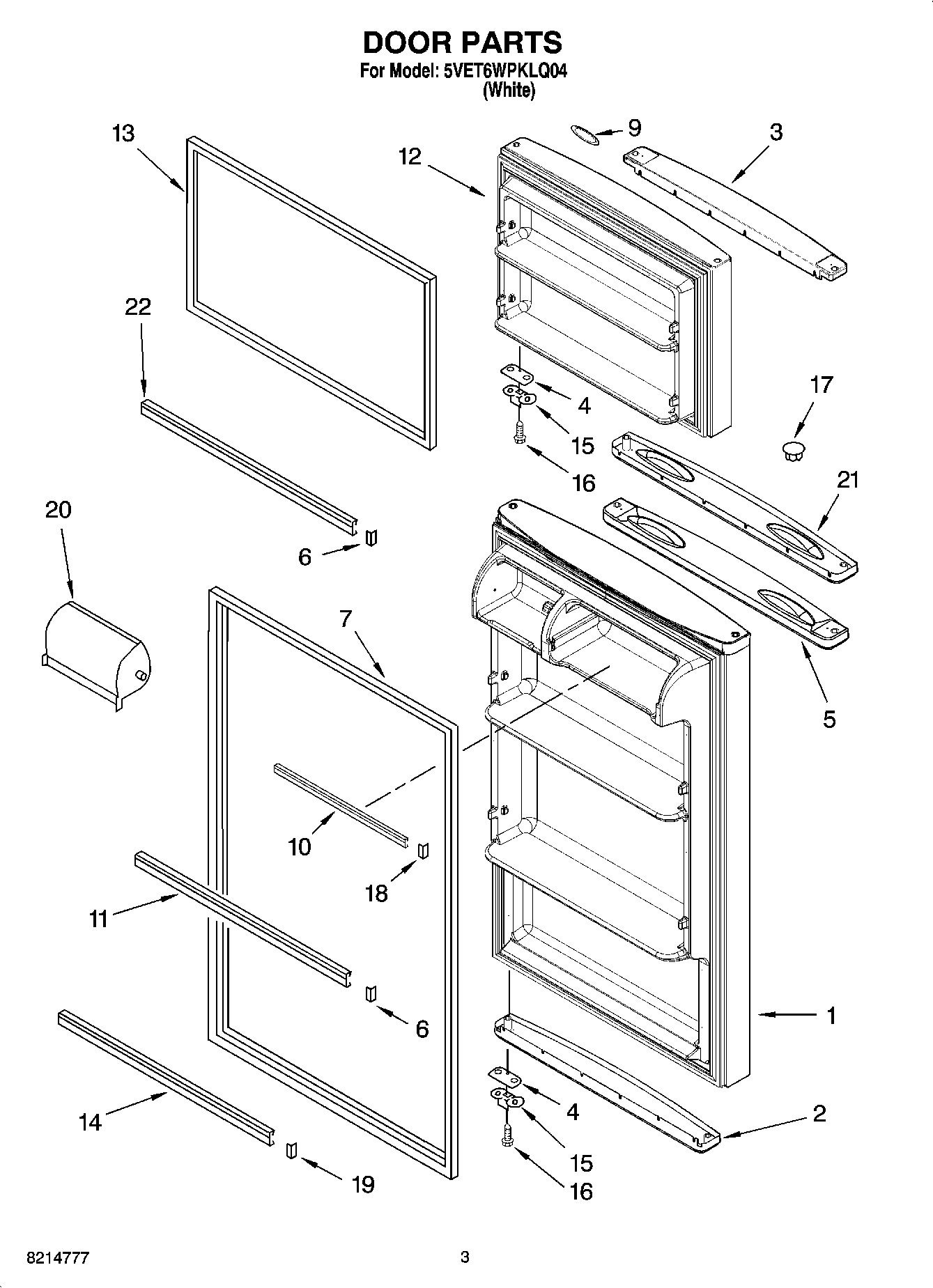

5VET6WPKLQ04 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Items 2, 5 & 7)
2	Endcap, Bottom (White)
3	2265644W Whirlpool Refrigerator Door Trim
4	WP2258681W Whirlpool Refrigerator Shim
6	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
7	WP2319265T Whirlpool Refrigerator FIP Gasket
9	WP2213265 Whirlpool Refrigerator Nameplate
10	W11129820 Whirlpool Refrigerator Door Trim
12	Freezer Door (Includes Items 3, 13 & 21)
13	WP2319263T Whirlpool Refrigerator FIP Gasket
14	WP2266738 Whirlpool Refrigerator Door Trim
15	W11745278 Whirlpool Bracket
16	SCREW
17	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
18	ENDCAP-TRM
19	ENDCAP
20	DOOR-COMP
21	2265645W Whirlpool Refrigerator Handle
22	WP2266727 Whirlpool Refrigerator Door Trim
