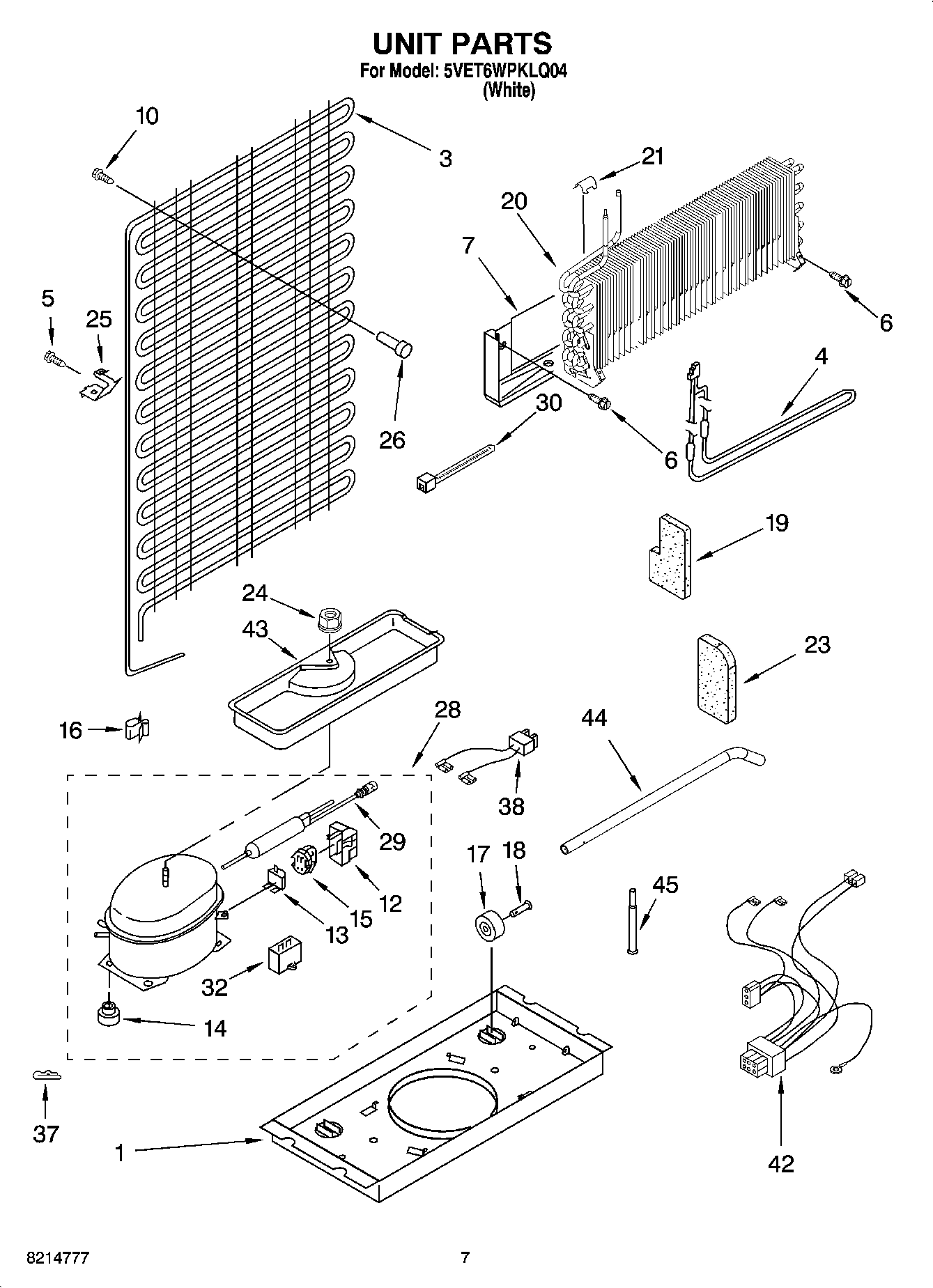

5VET6WPKLQ04 04 – UNIT PARTS

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2167357 Whirlpool Refrigerator Heater
5	WP965173 Whirlpool Dishwasher Screw
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
10	Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
12	WP61002138 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	WP2262184 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
28	Compressor (Includes Items 11,12,13,14,15, 21, 29, 32, 38 And 56) (Also Order)
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WP2201147 Whirlpool Refrigerator Capacitor
37	Clip, Compressor
38	Wire Assembly
42	Wire Assy. Unit
43	Tray, Evaporator
44	2264423 Whirlpool Tube
45	Following Parts Not Illustrated and Optional Parts Not Included
45	978026 Whirlpool Refrigerator Primary Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	978030 Whirlpool Refrigerator Valve
45	WP978025 Whirlpool Refrigerator Valve
45	VALVE, ACCESS (1/2“)
45	VALVE, ACCESS (5/8“)
45	W11661102 Whirlpool Tube
45	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
