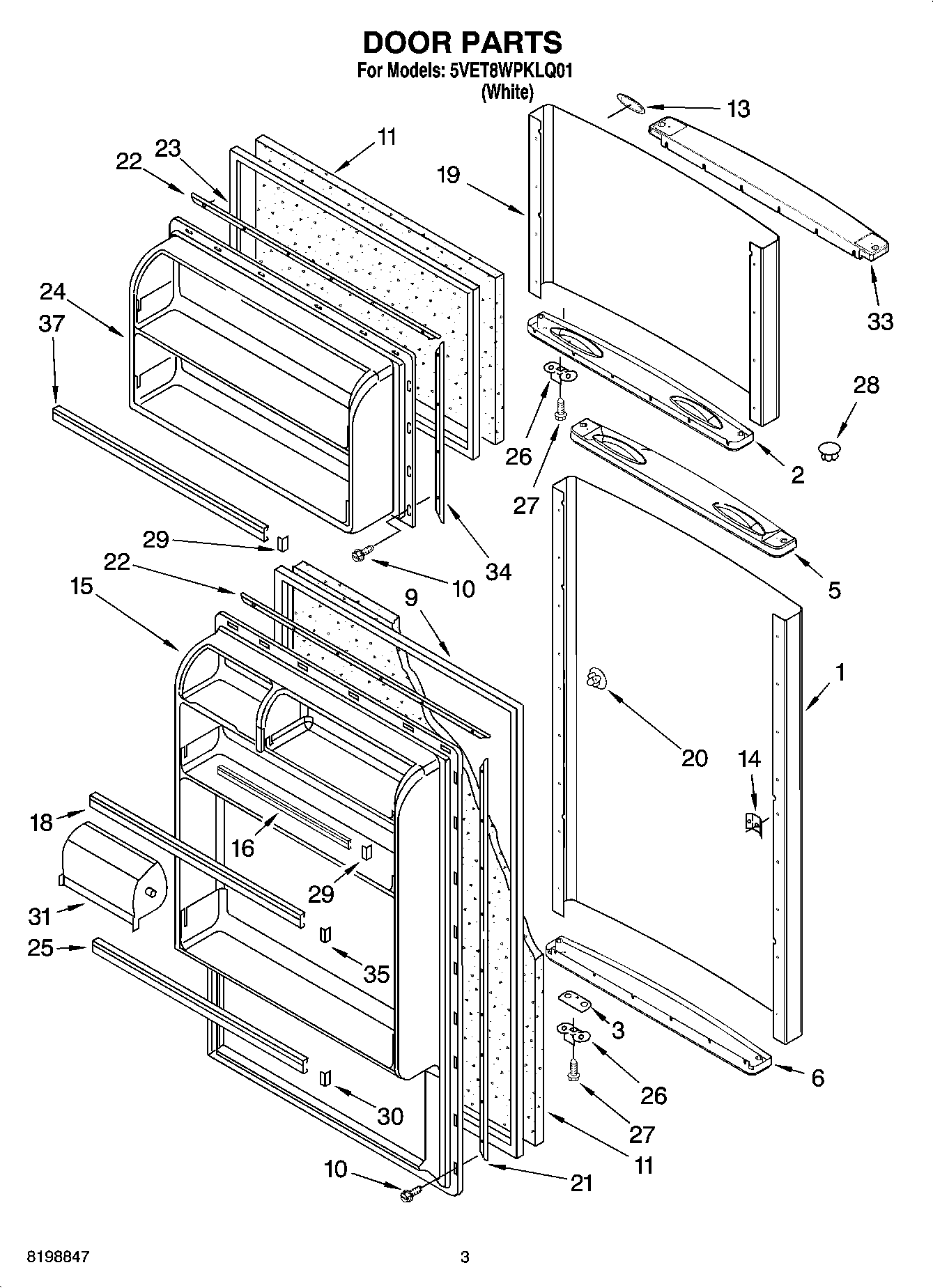

5VET8WPKLQ01 02 – DOOR PARTS

5VET8WPKLQ01 02 – DOOR PARTS

Written by

in

5VET8WPKLQ01 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Includes Items 5 & 6) (Also order Item 11)
3WP2258681W Whirlpool Refrigerator Shim
52265645W Whirlpool Refrigerator Handle
6Endcap, Bottom (White)
9WP2319264T Whirlpool Door Gasket
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
13WP2213265 Whirlpool Refrigerator Nameplate
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
16Trim, Door Shelf (Upper)
18WP2266738 Whirlpool Refrigerator Door Trim
19Freezer Door Panel (Includes Items 2 & 33) (Also order Item 11) (White)
20WP2189000 Whirlpool Refrigerator Handle Plug
21Retainer, Gasket
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
25Trim, Door Shelf (Lower)
26W11745278 Whirlpool Bracket
27SCREW
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30Plug-Trim
31Compartment Door
332265644W Whirlpool Refrigerator Door Trim
34Retainer, Gasket
35WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
37WP2266727 Whirlpool Refrigerator Door Trim
