5VET8WPKLQ04 02 – DOOR PARTS

5VET8WPKLQ04 02 – DOOR PARTS

Written by

in

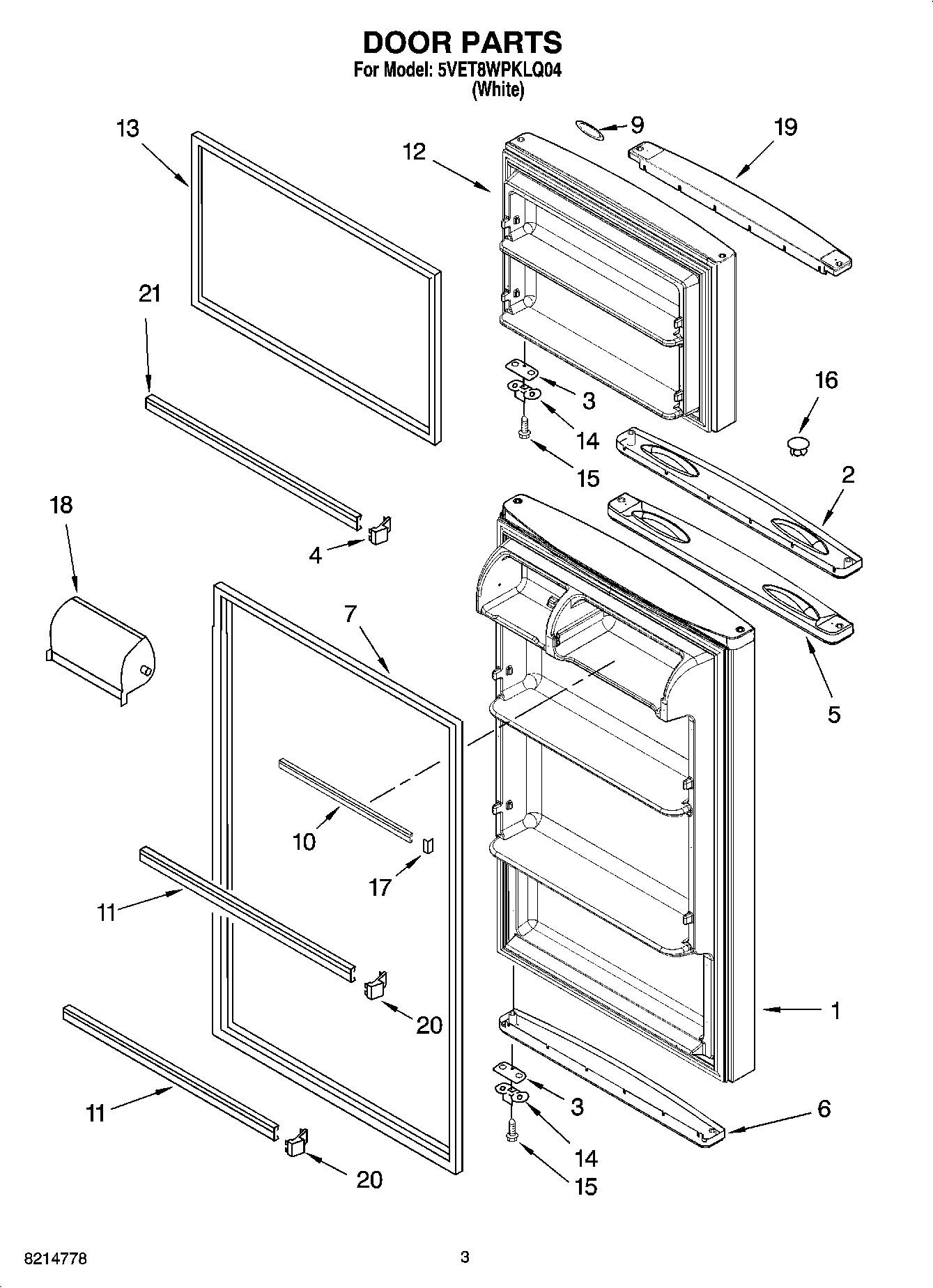

5VET8WPKLQ04 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 5,6 & 9) (White)
22265645W Whirlpool Refrigerator Handle
3WP2258681W Whirlpool Refrigerator Shim
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
6Endcap, Bottom (White)
7WP2319264T Whirlpool Door Gasket
9WP2213265 Whirlpool Refrigerator Nameplate
10W11129820 Whirlpool Refrigerator Door Trim
11WP2266738 Whirlpool Refrigerator Door Trim
122316367W Whirlpool Refrigerator DOR-FIP WH (DROP SHIP)
13WP2319263T Whirlpool Refrigerator FIP Gasket
14W11745278 Whirlpool Bracket
15SCREW
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17ENDCAP-TRM
18Compartment Door
192265644W Whirlpool Refrigerator Door Trim
20ENDCAP
21WP2266727 Whirlpool Refrigerator Door Trim
