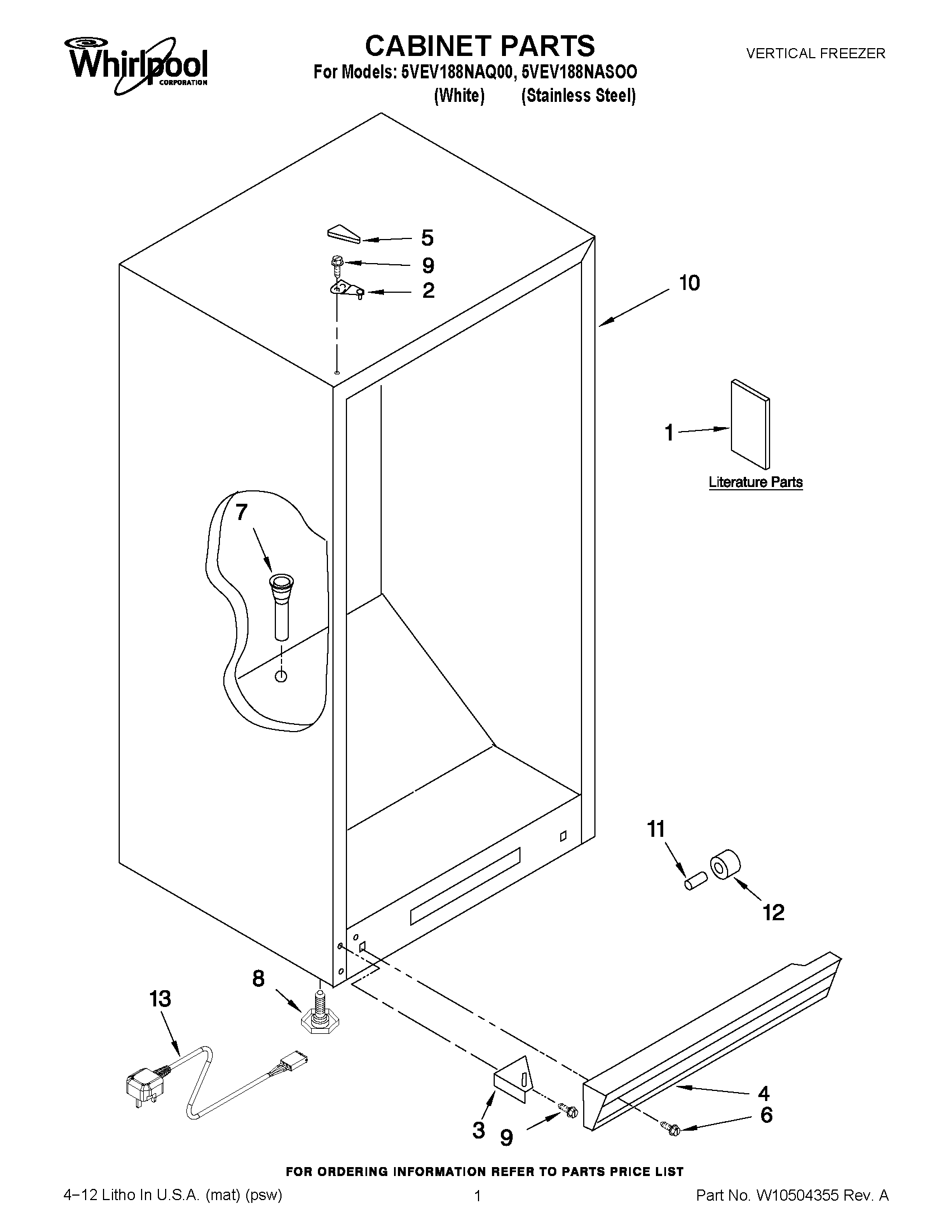

5VEV188NASOO 01 – CABINET PARTS

Products

PositionProduct
1OWNERS MANUAL
2TOP HINGE (BLACK)
2TOP HINGE (WHITE)
3WPW10487730 Whirlpool Door Hinge
3WPW10487729 Whirlpool Door Hinge
4GRILLE (SILVER)
4GRILLE (WHITE)
5COVER, HINGE (WHITE)
5COVER, HINGE (SILVER)
6SCREW
7GROMMET, DRAIN
8LEG, LEVELER
9SCREW
10CABINET (NOT A SERVICEABLE PART)
11AXLE
12ROLLER, FRONT
13W10123575 Whirlpool Refrigerator Power Cord
