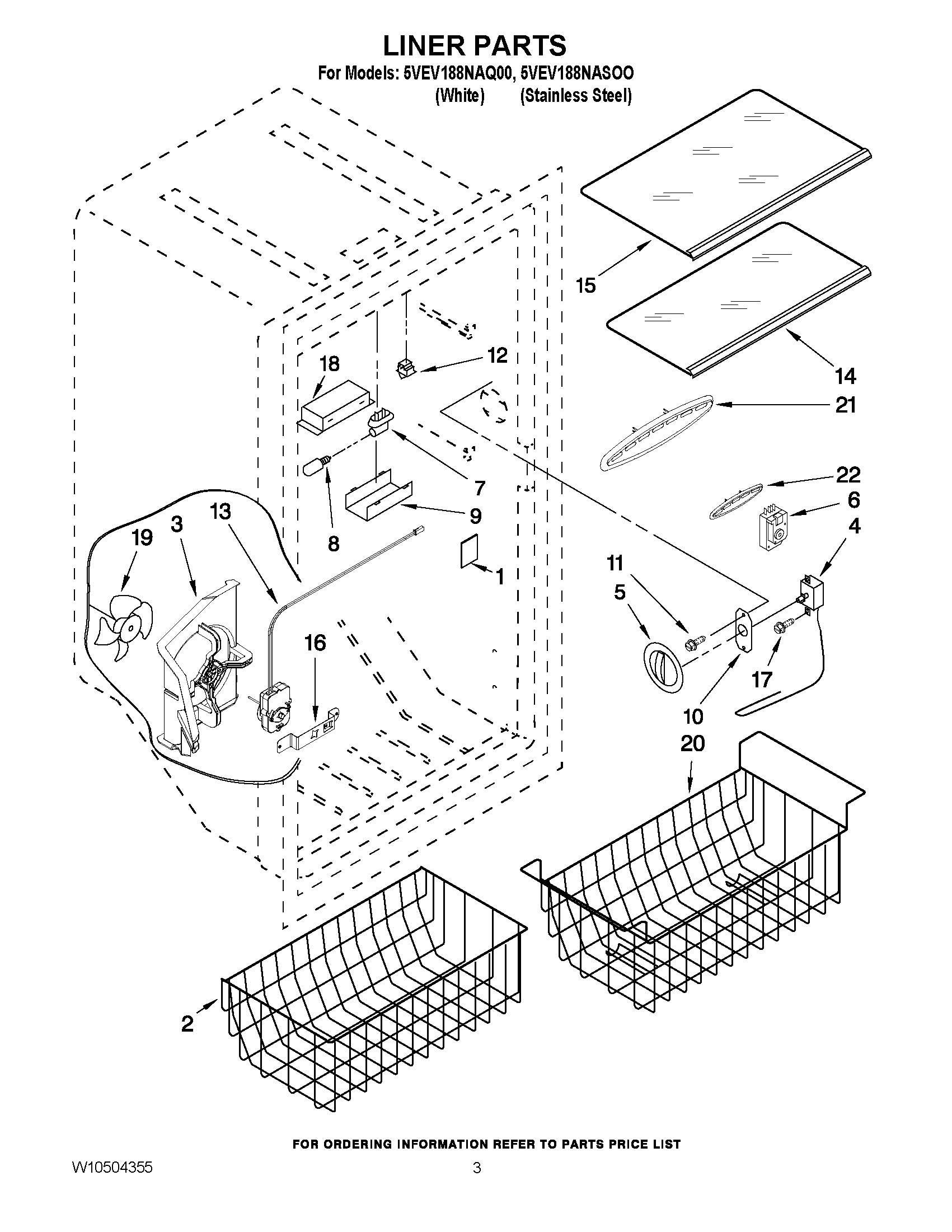

5VEV188NASOO 02 – LINER PARTS

Products

Position	Product
1	COVER, ICEMAKER HOLE
2	BASKET, WIRE
3	SHROUD, CONDENSER MOTOR
4	THERMOSTAT
5	KNOB, THERMOSTAT
6	TIMER, DEFROST
7	W11447232 Whirlpool Refrigerator Socket
8	WP67002552 Whirlpool Refrigerator Light Bulb
9	SHIELD, LIGHT
10	PLATE, THERMOSTAT
11	SCREW
12	SWITCH, LIGHT
13	MOTOR, CONDENSER
14	SHELF, MIDDLE
15	SHELF, TOP
16	WPW10467271 Whirlpool Bracket
17	SCREW
18	BRACKET, LIGHT
19	BLADE, CONDENSER FAN
20	BASKET
21	AIR DIFFUSER, LONG
22	AIR DIFFUSER, SHORT
