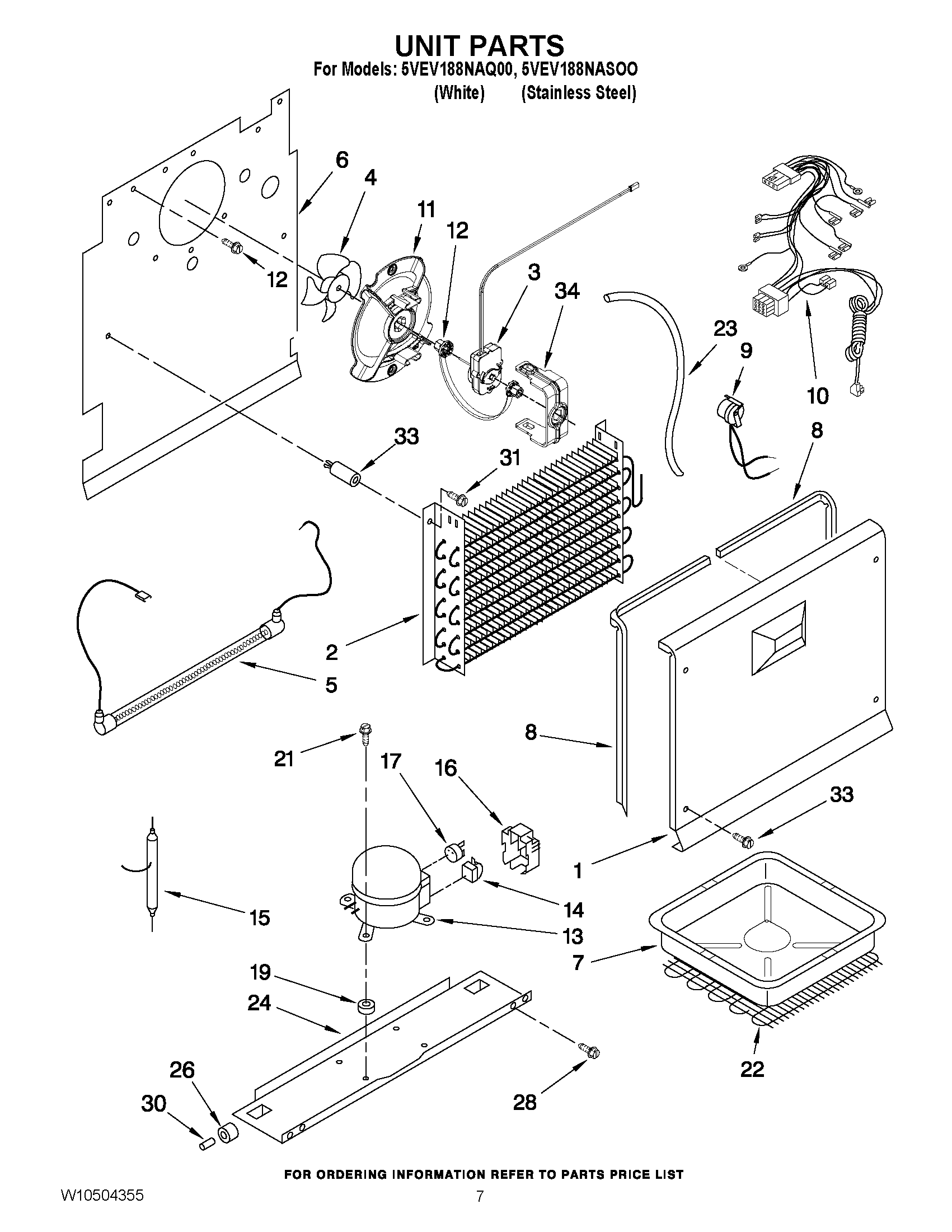

5VEV188NASOO 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	EVAPORATOR
3	WPW10312014 Whirlpool Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	W10426849 Whirlpool Refrigerator Heater
6	W10452115 Whirlpool Refrigerator Heat Shield
7	PAN, DRAIN
8	GASKET, COVER EVAPORATOR (RIGHT SIDE)
8	GASKET, COVER EVAPORATOR (LEFT SIDE)
9	W10491892 Whirlpool Refrigerator Defrost Bimetal
10	HARNESS, WIRING (WITH POWER CORD)
11	W10457575 Whirlpool Refrigerator Evaporator Cover
12	W11690160 Whirlpool Grommet
13	W10183407 Whirlpool Refrigerator Compressor
14	RELAY
15	W10843121 Whirlpool Refrigerator Tube
16	WP61002138 Whirlpool Refrigerator Terminal Cover
17	OVERLOAD
19	WP2163786 Whirlpool Refrigerator Grommet
21	BOLT, COMPRESSOR
22	CONDENSER
23	HEAT, EXCHANGER
24	PAN, COMPRESSOR
26	ROLLER, FRONT
28	SCREW
30	AXLE
31	SCREW
33	GROMMET
34	CLIP, EVAPORATOR MOTOR
