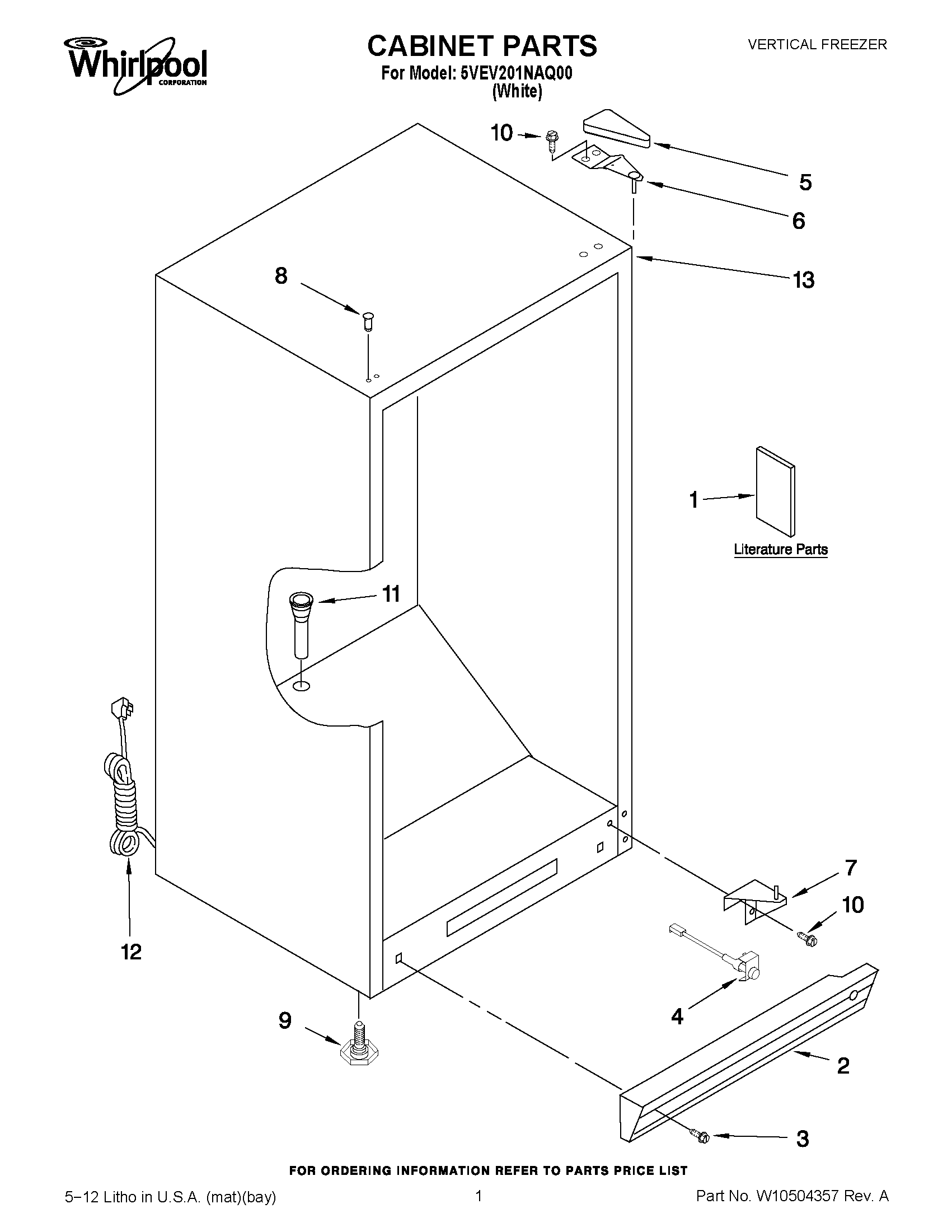

5VEV201NAQ00 01 – CABINET PARTS

Written by

Products

Position	Product
1	OWNERS MANUAL
2	GRILLE
3	SCREW
4	POWER LIGHT ASSEMBLY
5	COVER, HINGE (WHITE)
6	TOP HINGE (WHITE)
7	BOTTOM HINGE (WHITE)
8	PLUG, HOLE
9	LEG, LEVELER
10	SCREW
11	GROMMET, DRAIN
12	W10123575 Whirlpool Refrigerator Power Cord
13	CABINET (NOT A SERVICEABLE PART)
