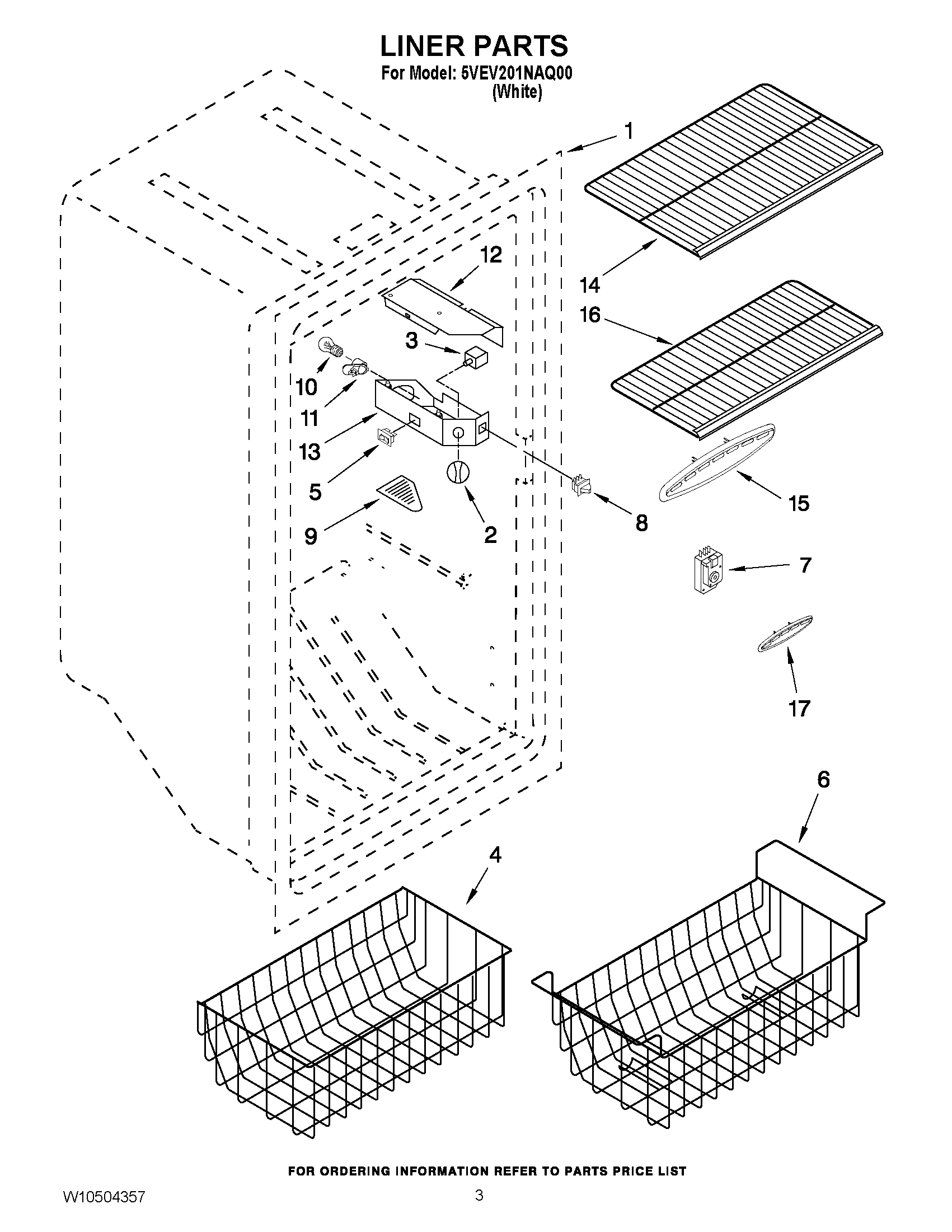

5VEV201NAQ00 02 – LINER PARTS

5VEV201NAQ00 02 – LINER PARTS

Written by

in

5VEV201NAQ00 02 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2KNOB, CONTROL
3WPW10474749 Whirlpool Refrigerator Thermostat
4BASKET, W/STOP
5SWITCH, ALARM
6BASKET, WIRE
7TIMER, DEFROST
8SWITCH, LIGHT
9LENS, LIGHT
10WP67002552 Whirlpool Refrigerator Light Bulb
11W11447232 Whirlpool Refrigerator Socket
12SHIELD, LIGHT
13BOX, CONTROL
14SHELF, UPPER WIRE
15AIR DIFFUSER, LONG
16SHELF, LOWER WIRE
17AIR DIFFUSER, SHORT
