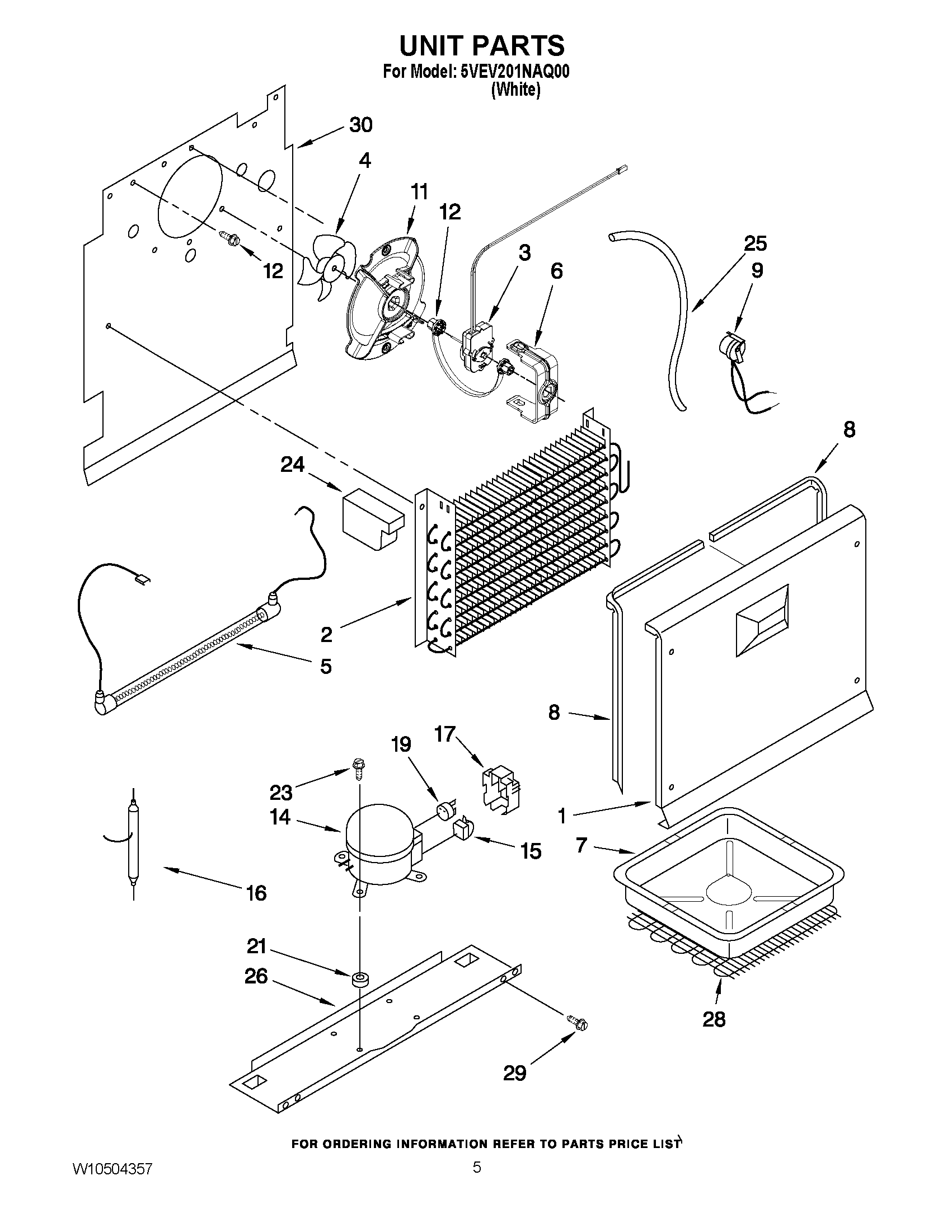

5VEV201NAQ00 03 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	EVAPORATOR
3	WPW10312014 Whirlpool Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	W10426849 Whirlpool Refrigerator Heater
6	CLIP, EVAPORATOR MOTOR
7	PAN, DRAIN
8	GASKET, COVER EVAPORATOR (RIGHT SIDE)
8	GASKET, COVER EVAPORATOR (LEFT SIDE)
9	W10491892 Whirlpool Refrigerator Defrost Bimetal
11	W10457575 Whirlpool Refrigerator Evaporator Cover
12	W11690160 Whirlpool Grommet
14	W10183407 Whirlpool Refrigerator Compressor
15	RELAY
16	W10843121 Whirlpool Refrigerator Tube
17	WP61002138 Whirlpool Refrigerator Terminal Cover
19	OVERLOAD
21	WP2163786 Whirlpool Refrigerator Grommet
23	BOLT, COMPRESSOR
24	W10452121 Whirlpool Evaporator Block
25	HEAT, EXCHANGER
26	WPW10470133 Whirlpool Compressor Pan
28	CONDENSER
29	SCREW
30	W10452115 Whirlpool Refrigerator Heat Shield
