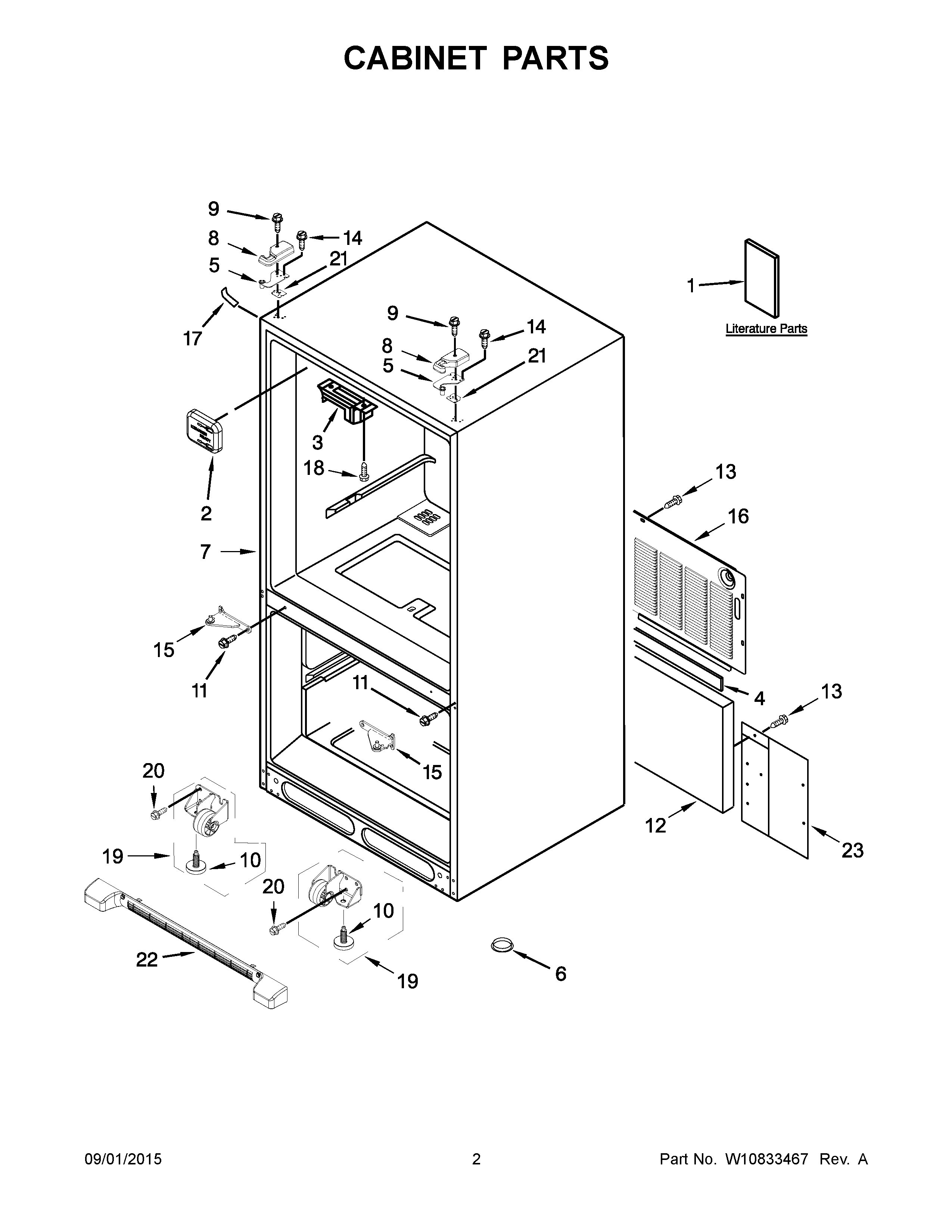

5VGF25SNEA00 02 – CABINET PARTS

5VGF25SNEA00 02 – CABINET PARTS

Written by

in

5VGF25SNEA00 02 – CABINET PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1TECH SHEET
2WP67001098 Whirlpool Refrigerator Tube Cover
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5AW11592374 Whirlpool Refrigerator Top Door Hinge
5W11592375 Whirlpool Door Hinge
6A3076901 Whirlpool Refrigerator Plug
7CABINET (NOT A SERVICEABLE PART)
8WPW10337648 Whirlpool Refrigerator Cover
8AWPW10191117 Whirlpool Refrigerator Cover
9WP8281196 Whirlpool Screw
10WPW10141622 Whirlpool Leveler
11WP33001882 Whirlpool Screw
12INSULATION, SOUND
1367006425 Whirlpool Refrigerator Screw
14WP489349 Whirlpool Refrigerator Screw
15W10917988 Whirlpool Refrigerator Door Hinge
16COVER, UNIT
17WP12587703AP Whirlpool Refrigerator Filler
18W10854958 Whirlpool Refrigerator Screw
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W11684617 Whirlpool Valve Cover
