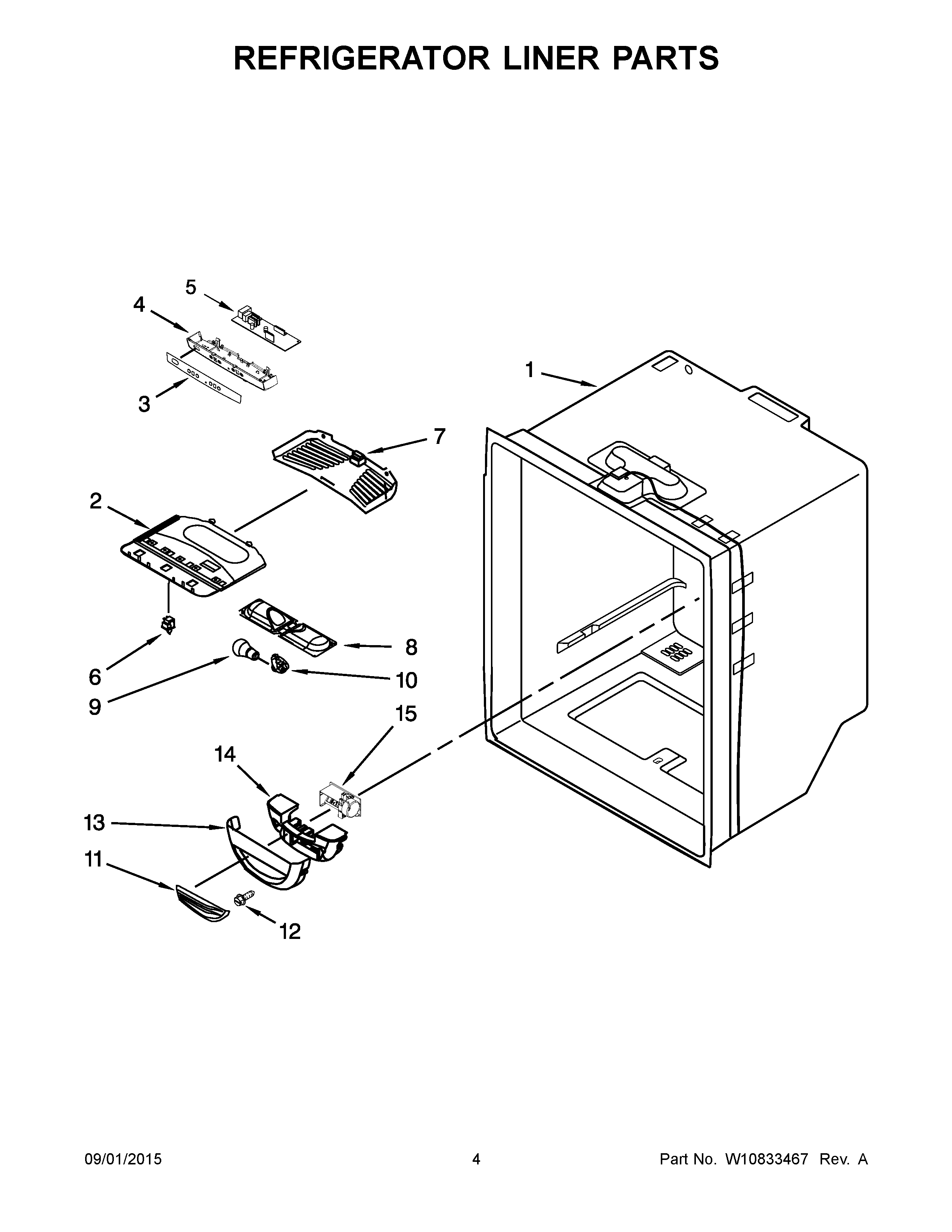

5VGF25SNEA00 03 – REFRIGERATOR LINER PARTS

5VGF25SNEA00 03 – REFRIGERATOR LINER PARTS

Written by

in

5VGF25SNEA00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIHARNESS, CONTROL (REFRIGERATOR)
NICABINET (NOT A SERVICEABLE PART)
2W10464764 Whirlpool Refrigerator Housing
3W10593588 Whirlpool Refrigerator Overlay
4WPW10464769 Whirlpool Refrigerator Housing
5WPW10708492-includeCORE Whirlpool WPW10708492 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W10716219 Whirlpool Light Bulb
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL, DAMPER
