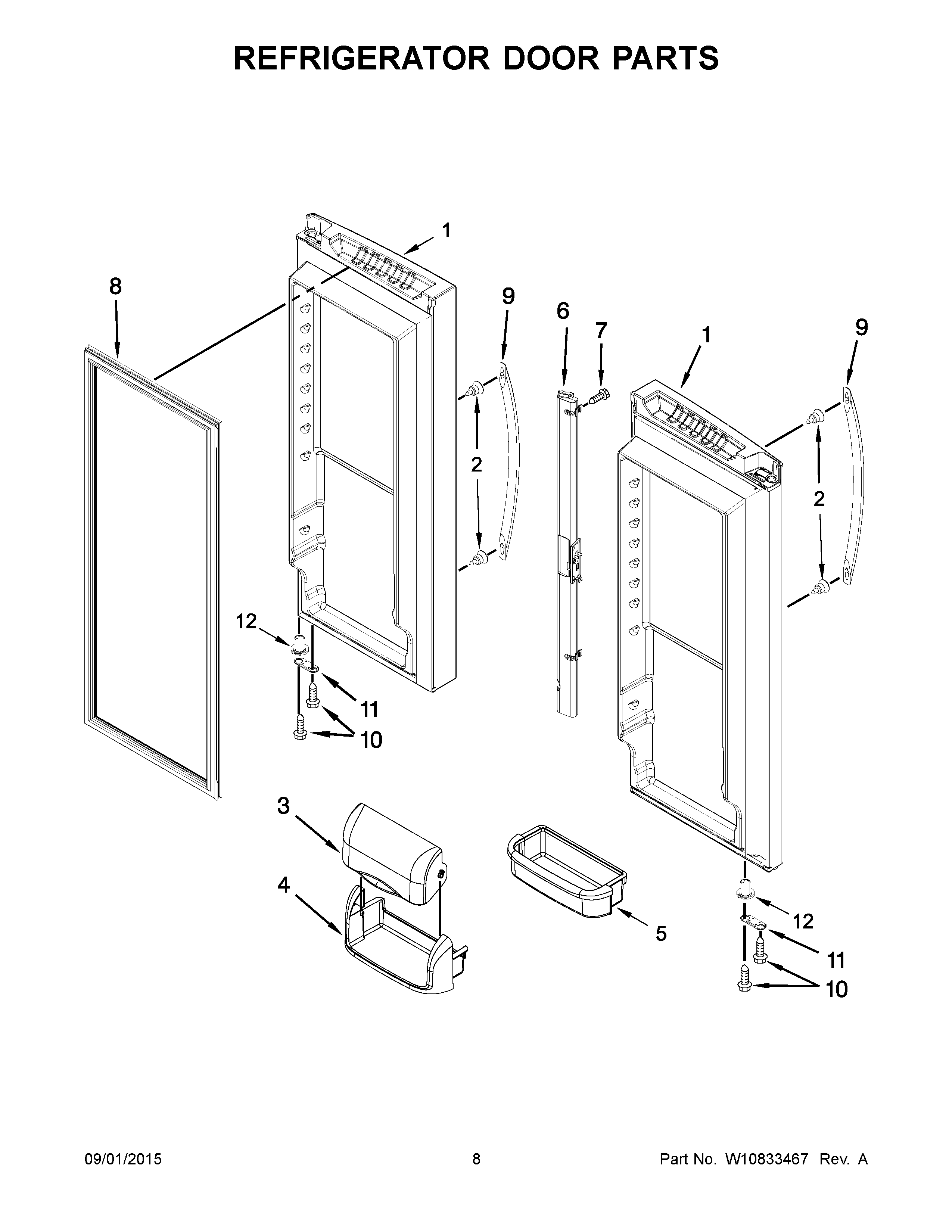

5VGF25SNEA00 05 – REFRIGERATOR DOOR PARTS

5VGF25SNEA00 05 – REFRIGERATOR DOOR PARTS

Written by

in

5VGF25SNEA00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ADOOR, REFRIGERATOR RH (SPARKLE STEEL)
1DOOR, REFRIGERATOR LH (SPARKLE STEEL)
2WPW10661886 Whirlpool Refrigerator Door Handle Screw
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5AWPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
612722811AP Whirlpool Rail Mullion
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11459378 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12WP12028505AP Whirlpool Closing Cam
