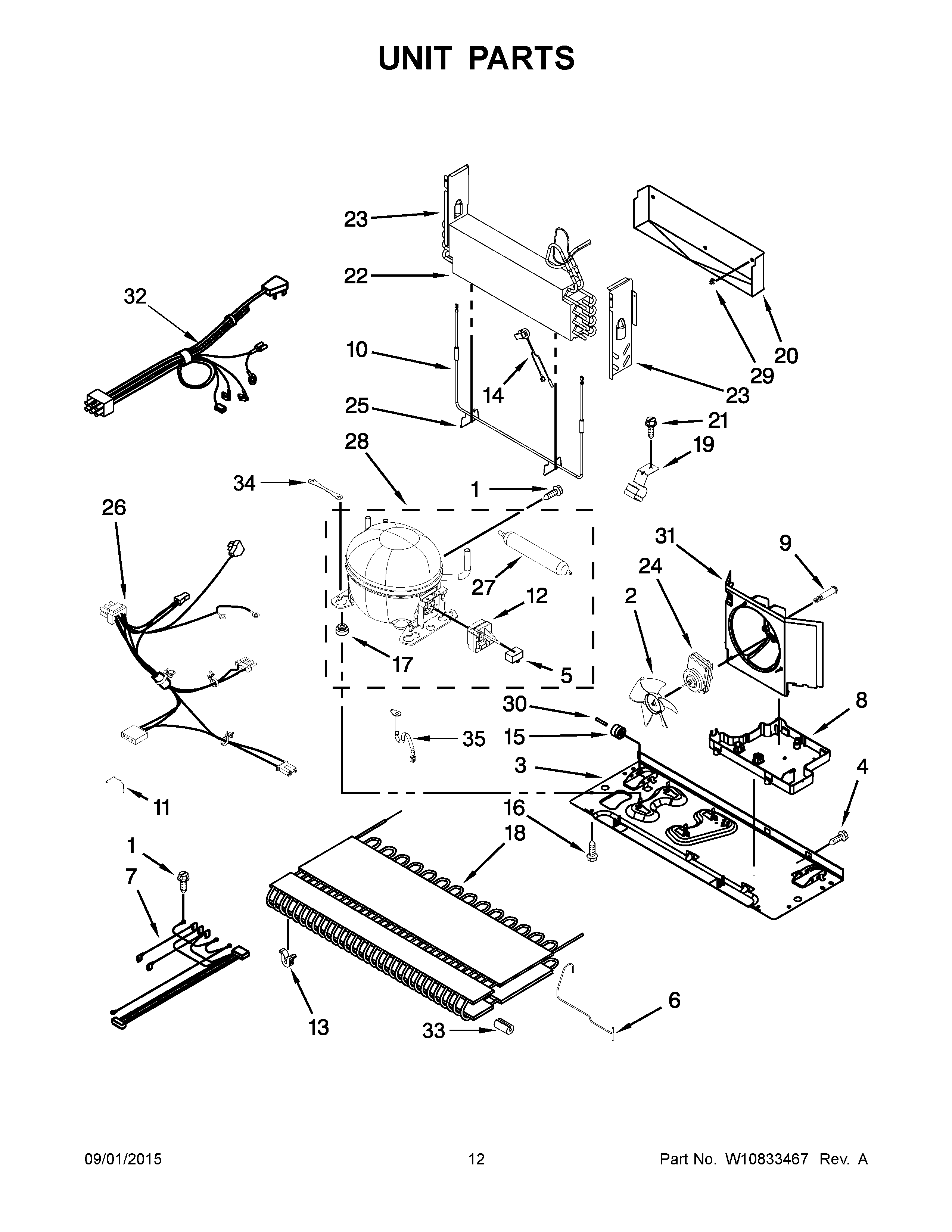

5VGF25SNEA00 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	2321245 Whirlpool Refrigerator Capacitor
6	W10242974 Whirlpool Refrigerator 25" Tube
7	HARNESS, EVAPORATOR HEATER
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER, DEFROST
11	Strap, Bale
12	START PROTECT, COMBO PRODUCTION
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W11084905 Whirlpool Refrigerator Bimetallic Defrost
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	W11256565 Whirlpool Refrigerator Evaporator
23	Dam (Left Side)
23A	Dam (Right Side)
24	WPW10246191 Whirlpool Refrigerator Motor
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	CORD, POWER
33	W10852725 Whirlpool Refrigerator Grommet
34	W10236396 Whirlpool Refrigerator Strap
35	W10619951 Whirlpool Drain Tube with Grommet
