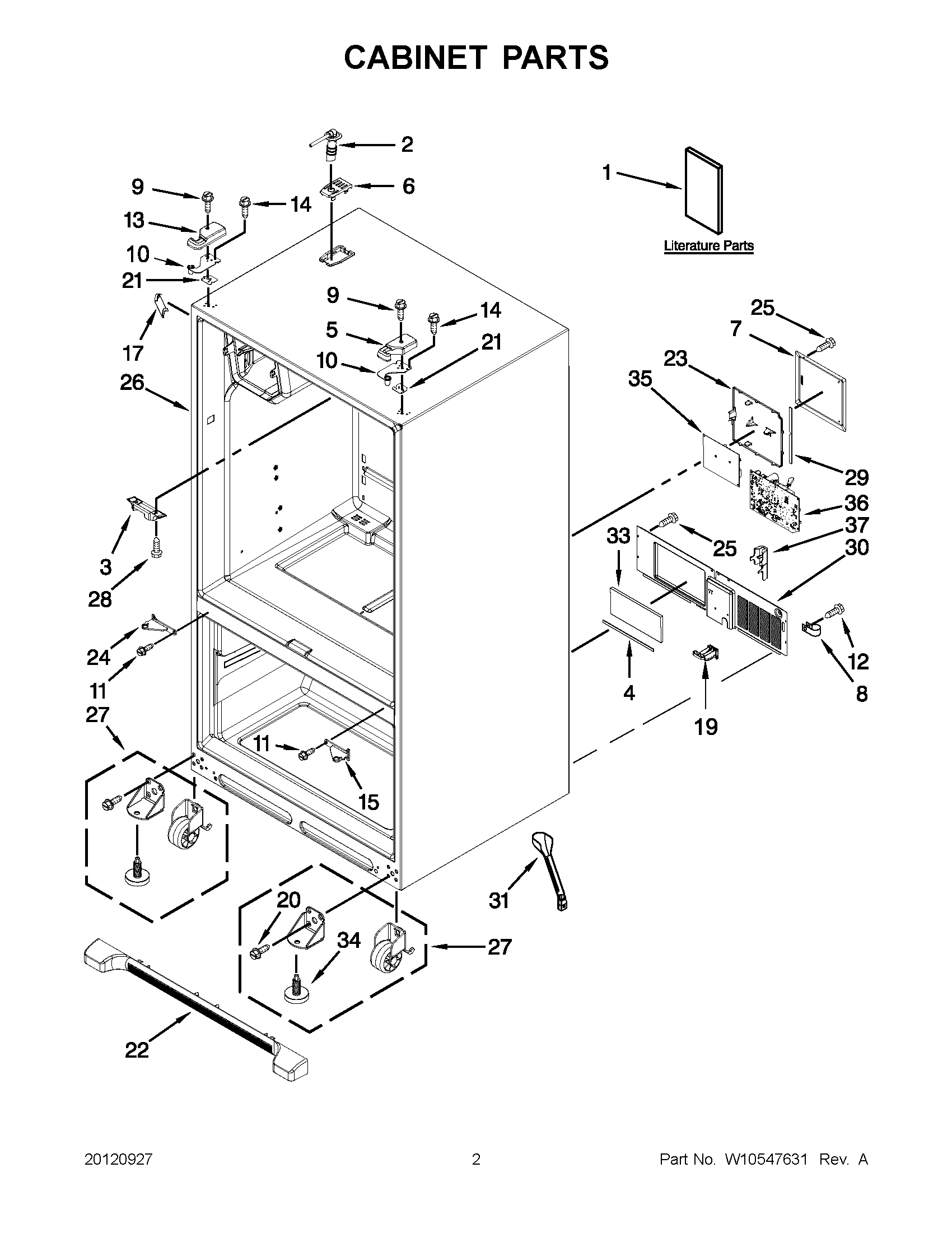

5VGI6FARAF00 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	USE & CARE GUIDE
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10191117 Whirlpool Refrigerator Cover
6	W10191141 Whirlpool Refrigerator Tube Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
12	67006425 Whirlpool Refrigerator Screw
13	WPW10337648 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
17	WP12587703AP Whirlpool Refrigerator Filler
19	W10485986 Whirlpool Tube Clamp
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
21	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W10296541 Whirlpool Refrigerator Wire Cover
24	W10917988 Whirlpool Refrigerator Door Hinge
25	W11686675 Whirlpool Screw
26	CABINET (NOT A SERVICEABLE PART)
27	WPW10515763 Whirlpool Refrigerator Cabinet Roller
27	WPW10515762 Whirlpool Refrigerator Cabinet Roller
28	W10854958 Whirlpool Refrigerator Screw
29	GASKET, HV BOX
30	COVER, UNIT
31	W10619951 Whirlpool Drain Tube with Grommet
33	INSULATION, SOUND
34	WPW10141622 Whirlpool Leveler
35	WPW10356041-includeCORE Whirlpool WPW10356041 Refrigerator Electronic Control Board + Core
36	W11106262 Whirlpool Electronic Control Board + Core
37	W10208592 Whirlpool Refrigerator Valve Cover
