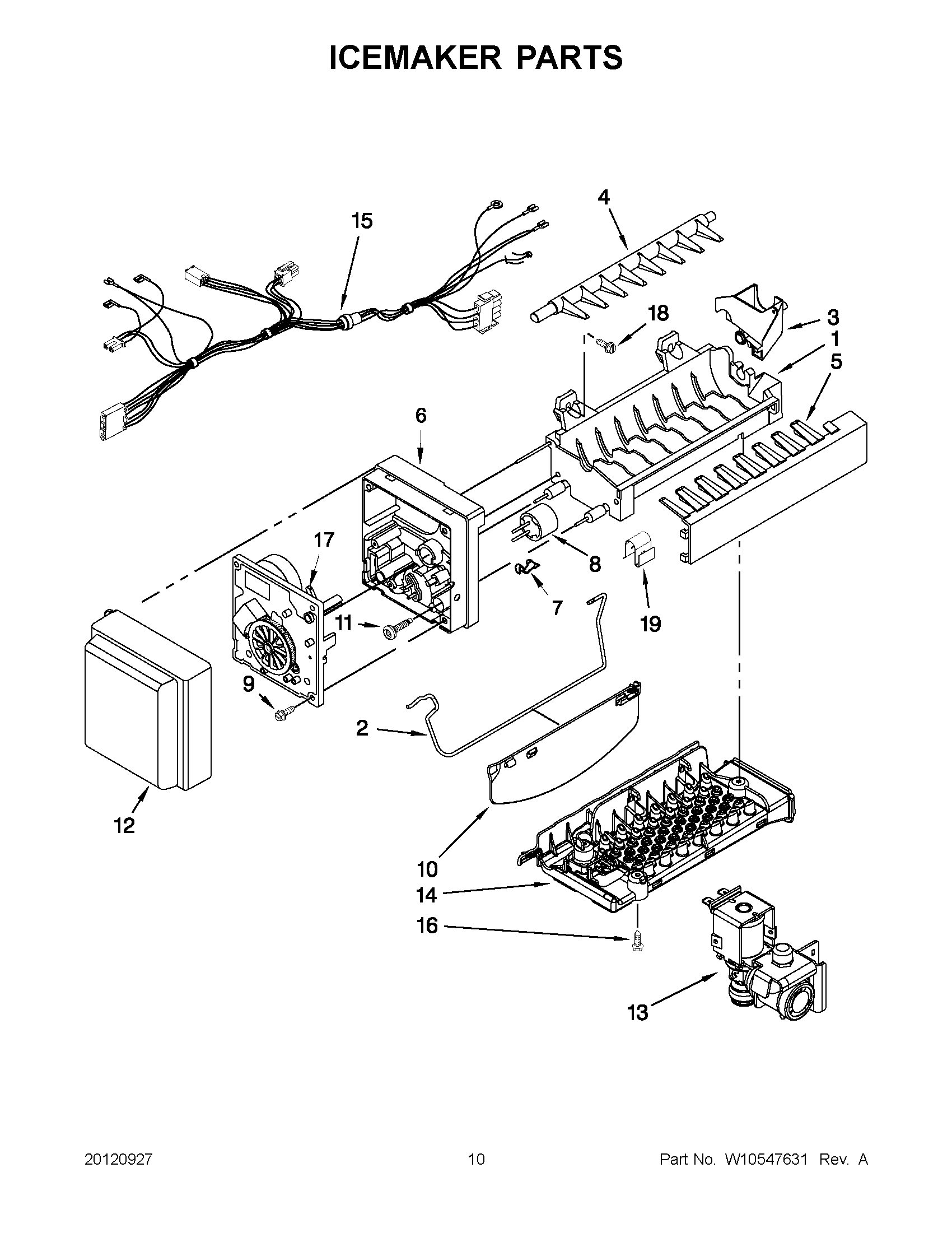

5VGI6FARAF00 05 – ICEMAKER PARTS

Products

Position	Product
1	WPW10379147 Whirlpool Ice Mold
2	WPW10175514 Whirlpool Refrigerator Shut-Off Arm
3	W10327050 Whirlpool Refrigerator Cup Fill
4	W10318914 Whirlpool Refrigerator Ejector Arm
5	WPW10122563 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
10	WPW10351019 Whirlpool Refrigerator Extension
11	W10001280 Whirlpool Refrigerator Screw
12	COVER, ICE MAKER
13	WPW10498988 Whirlpool Refrigerator Inlet Valve
14	WPW10312691 Whirlpool Refrigerator Air Baffle
15	HARNESS, ICE MAKER MODULE
16	67006425 Whirlpool Refrigerator Screw
17	W10190933 Whirlpool Refrigerator Motor Assembly
18	W10001240 Whirlpool Refrigerator Screw
19	WP628379 Whirlpool Refrigerator Clip
100	WPW10457318 Whirlpool Ice Maker
