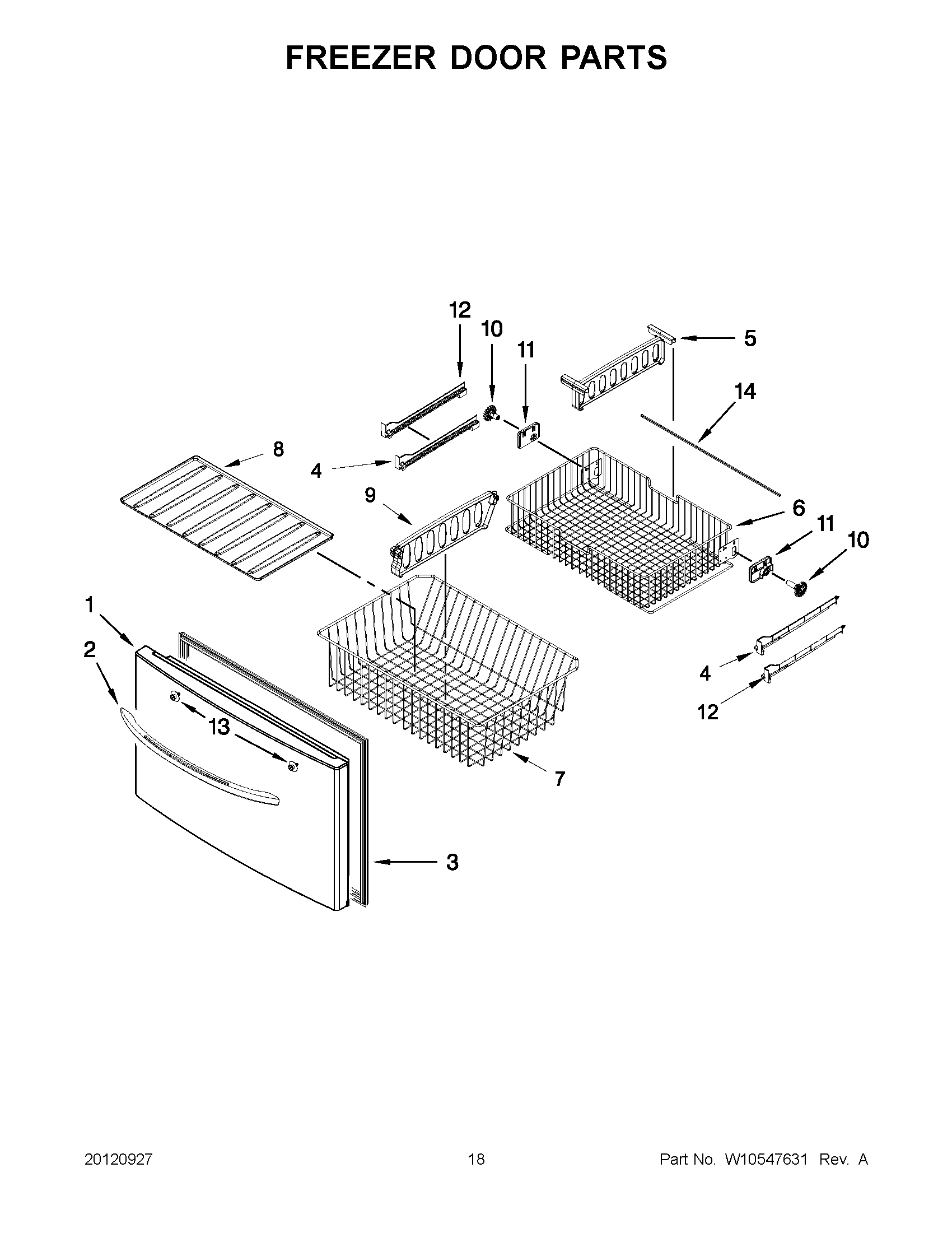

5VGI6FARAF00 09 – FREEZER DOOR PARTS

5VGI6FARAF00 09 – FREEZER DOOR PARTS

Written by

in

5VGI6FARAF00 09 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (SPARKLE STEEL)
2WPW10223025K Whirlpool Refrigerator Handle
3GASKET-FIP
4WPW10280608 Whirlpool Refrigerator Bracket
4WPW10280613 Whirlpool Refrigerator Bracket
5W10146439 Whirlpool Refrigerator Divider
6W11218042 Whirlpool Refrigerator Freezer Basket
7WPW10503184 Whirlpool Refrigerator Freezer Basket
8WP67006104 Whirlpool Refrigerator Tray
9W10847995 Whirlpool Divider Assembly
10WPW10474716 Whirlpool Refrigerator Gear
10WPW10474715 Whirlpool Refrigerator Gear
11W10348260 Whirlpool Refrigerator Bracket
11W10348259 Whirlpool Refrigerator Bracket Assembly
12W11489994 Whirlpool Refrigerator Rail
12W11489993 Whirlpool Refrigerator Rail
13WPW10288153 Whirlpool Refrigerator Screw
14W11173556 Whirlpool Refrigerator Shaft
