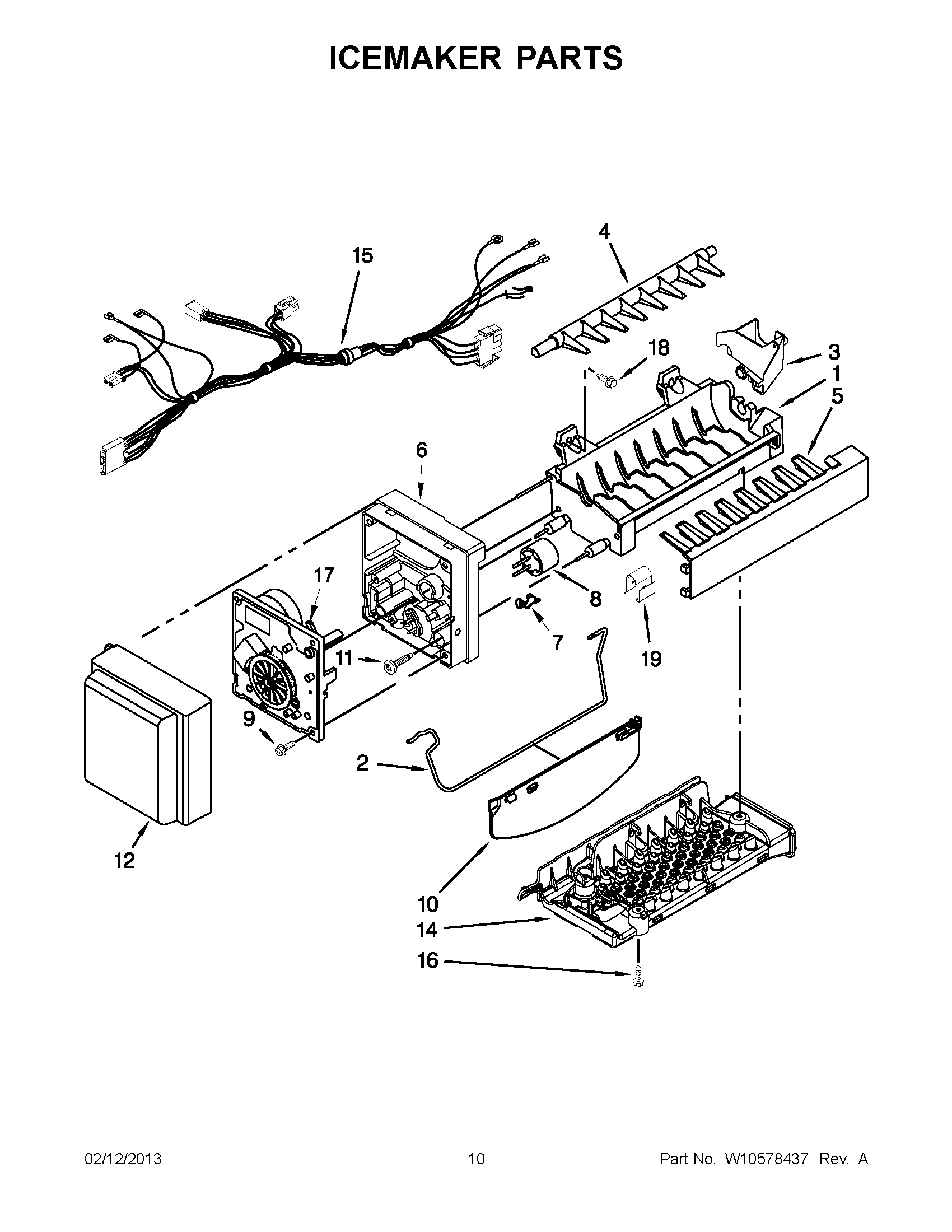

5VGI6FARAF01 05 – ICEMAKER PARTS

5VGI6FARAF01 05 – ICEMAKER PARTS

Written by

in

5VGI6FARAF01 05 – ICEMAKER PARTS

Products

PositionProduct
2WPW10175514 Whirlpool Refrigerator Shut-Off Arm
3W10327050 Whirlpool Refrigerator Cup Fill
4W10318914 Whirlpool Refrigerator Ejector Arm
5WPW10122563 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
10WPW10351019 Whirlpool Refrigerator Extension
11W10001280 Whirlpool Refrigerator Screw
12COVER, ICE MAKER
14WPW10312691 Whirlpool Refrigerator Air Baffle
15HARNESS, ICE MAKER MODULE
1667006425 Whirlpool Refrigerator Screw
17W10190933 Whirlpool Refrigerator Motor Assembly
18W10001240 Whirlpool Refrigerator Screw
19WP628379 Whirlpool Refrigerator Clip
100WPW10457318 Whirlpool Ice Maker
