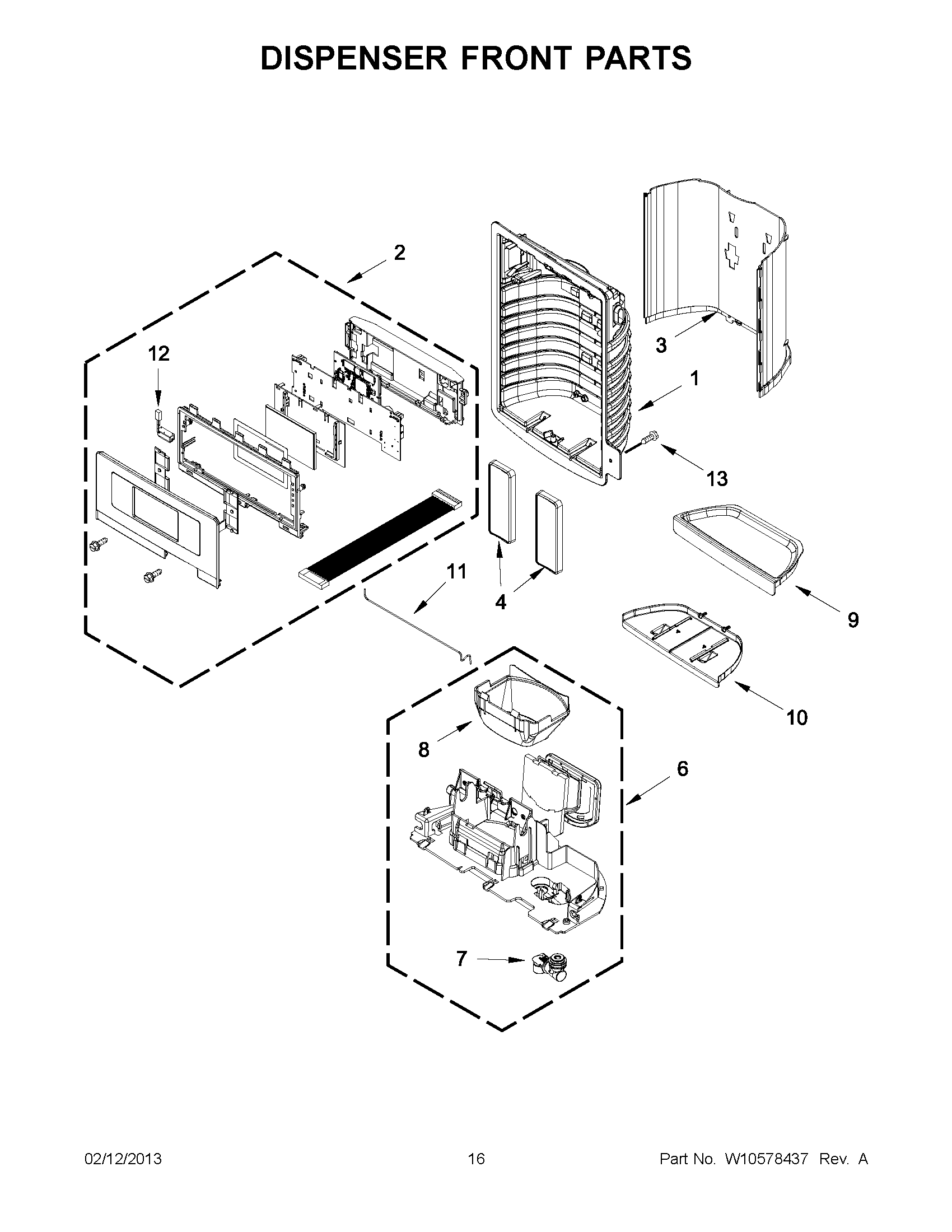

5VGI6FARAF01 08 – DISPENSER FRONT PARTS

5VGI6FARAF01 08 – DISPENSER FRONT PARTS

Written by

in

5VGI6FARAF01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11184112 Whirlpool Refrigerator Electronic Control Board + Core
3W11045978 Whirlpool Refrigerator Shield
4WPW10368730 Whirlpool Refrigerator Pad
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8WPW10435760 Whirlpool Refrigerator Ice Guide
9W11192301 Whirlpool Refrigerator Drip Tray
10WPW10267863 Whirlpool Refrigerator Drip Tray
11WPW10511930 Whirlpool Refrigerator Water Tube
12W11290115 Whirlpool Refrigerator Light
13WPW10273971 Whirlpool Screw
