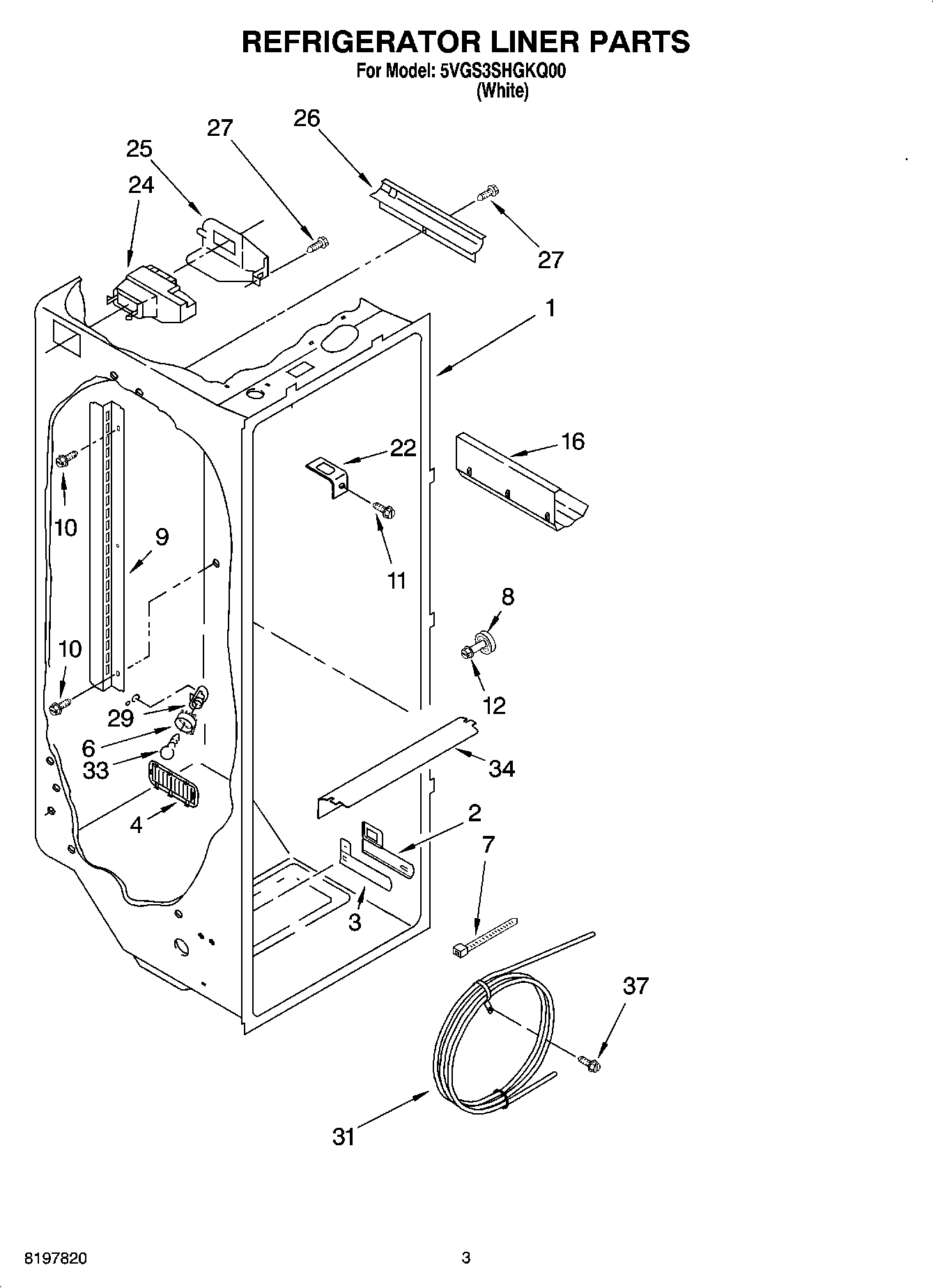

5VGS3SHGKQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
6	WP2175210 Whirlpool Refrigerator Shroud
7	WPW10339879 Whirlpool Wire Tie
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	Shelf Ladder
10	WP489478 Whirlpool Refrigerator Screw
11	WP488488 Whirlpool Refrigerator Screw
12	WP3400806 Whirlpool Screw
16	W10777924 Whirlpool Refrigerator Wine Rack
22	WP2256085 Whirlpool Refrigerator Retainer
24	WPW10129864 Whirlpool Refrigerator Diffuser
25	WP2212240 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
27	W10759522 Whirlpool Screw
29	4387478 Whirlpool Refrigerator Light Socket
31	WP2256126 Whirlpool Refrigerator Reservoir
33	WP67002552 Whirlpool Refrigerator Light Bulb
34	Light Lens
37	Screw (2)
