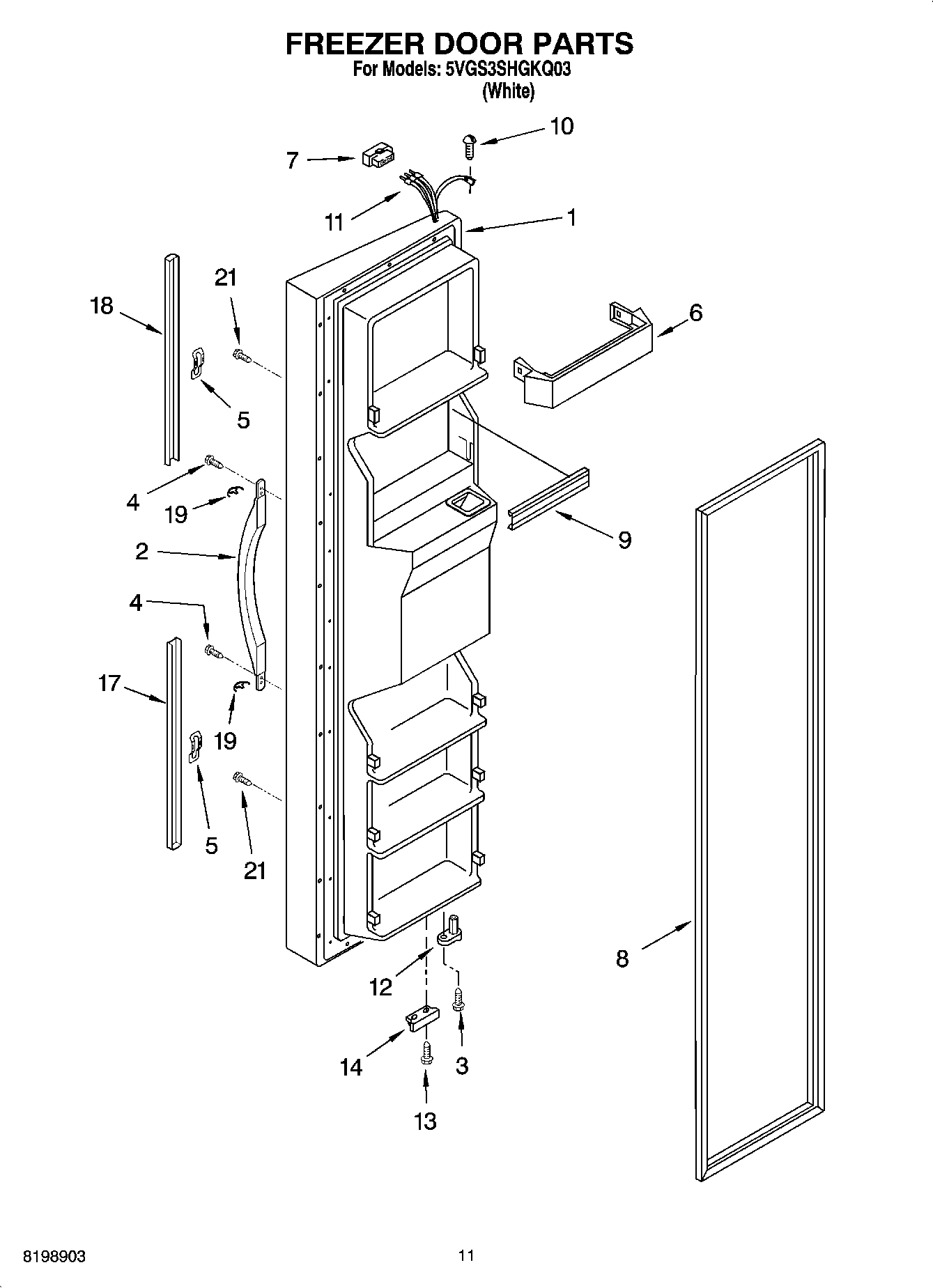

5VGS3SHGKQ03 07 – FREEZER DOOR PARTS

5VGS3SHGKQ03 07 – FREEZER DOOR PARTS

Written by

in

5VGS3SHGKQ03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2Handle (White)
3WP3400012 Whirlpool Refrigerator Screw
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
6WP2156021 Whirlpool Refrigerator Door Trim
7WP2154473 Whirlpool Refrigerator Connector
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
17Trim, Door-Bottom (White)
18Trim, Door-Top (White)
19Jewelry, Handle
21WP3400852 Whirlpool Refrigerator Screw
