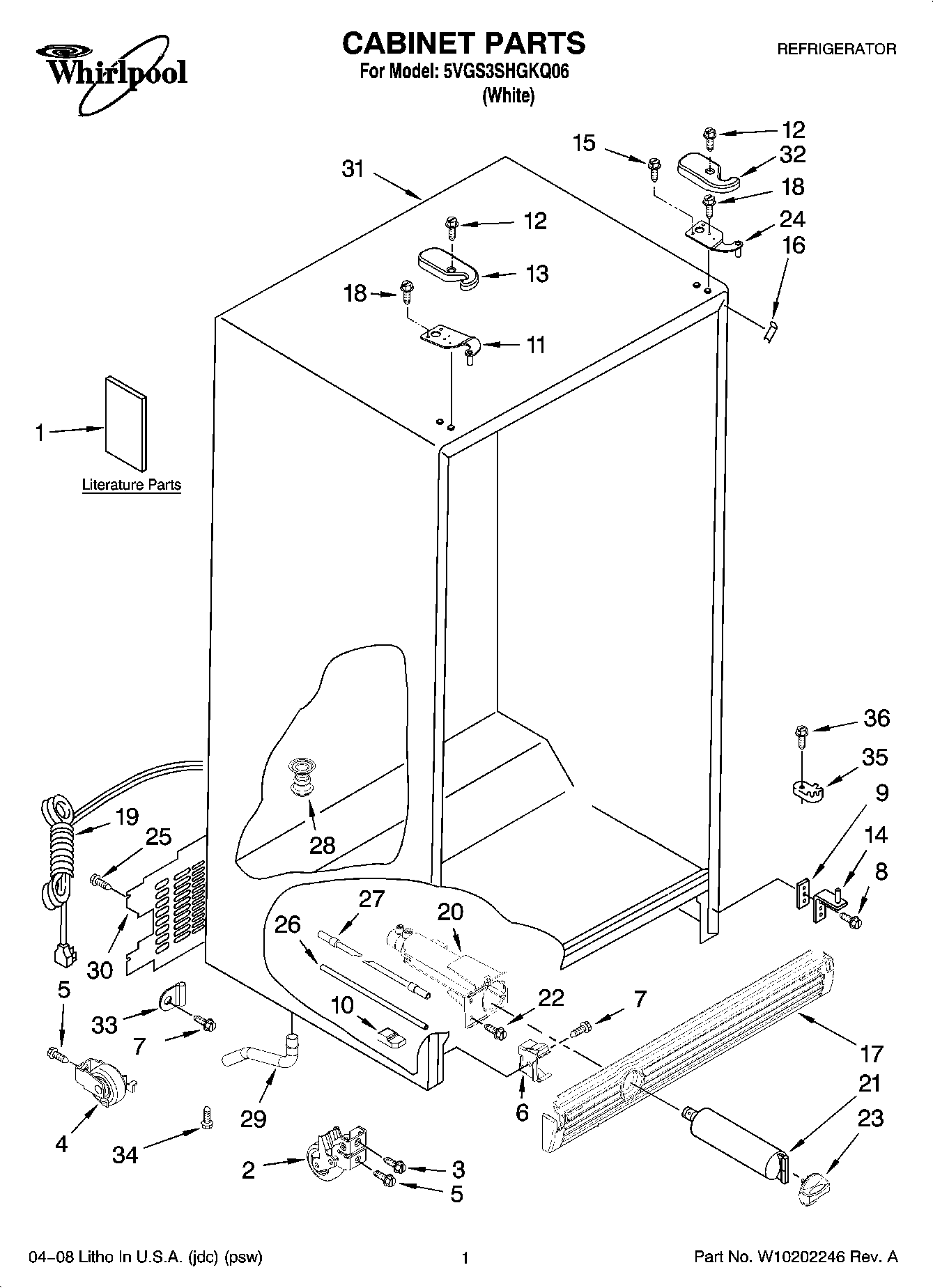

5VGS3SHGKQ06 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use & Care Guide
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP489497 Whirlpool Screw
9	WP2209697 Whirlpool Refrigerator Shim
10	Block, Housing Support
11	WP2203770 Whirlpool Refrigerator Door Hinge
12	WP8281227 Whirlpool Screw
13	WP2203407W Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	WP489128 Whirlpool Refrigerator Screw
16	Filler, Wrapper (White)
17	W10802713 Whirlpool Refrigerator Grille
19	Service Cord
20	WP2186443 Whirlpool Water Filter Housing
21	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
22	WP489500 Whirlpool Refrigerator Screw
23	WP2186494W Whirlpool Water Filter Cap
24	WP2203771 Whirlpool Refrigerator Door Hinge
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10350006 Whirlpool Refrigerator Water Tube
27	WP2304697 Whirlpool Refrigerator Water Tube
28	W11566763 Whirlpool Fitting
29	Extension Tube
30	Cover, Unit
31	Cabinet, (Not A Serviceable Part)
32	WP2203408W Whirlpool Refrigerator Cover
33	489348 Whirlpool Refrigerator Tube Clamp
35	WPW10329686 Whirlpool Door Cam Black
36	WP489483 Whirlpool Screw
