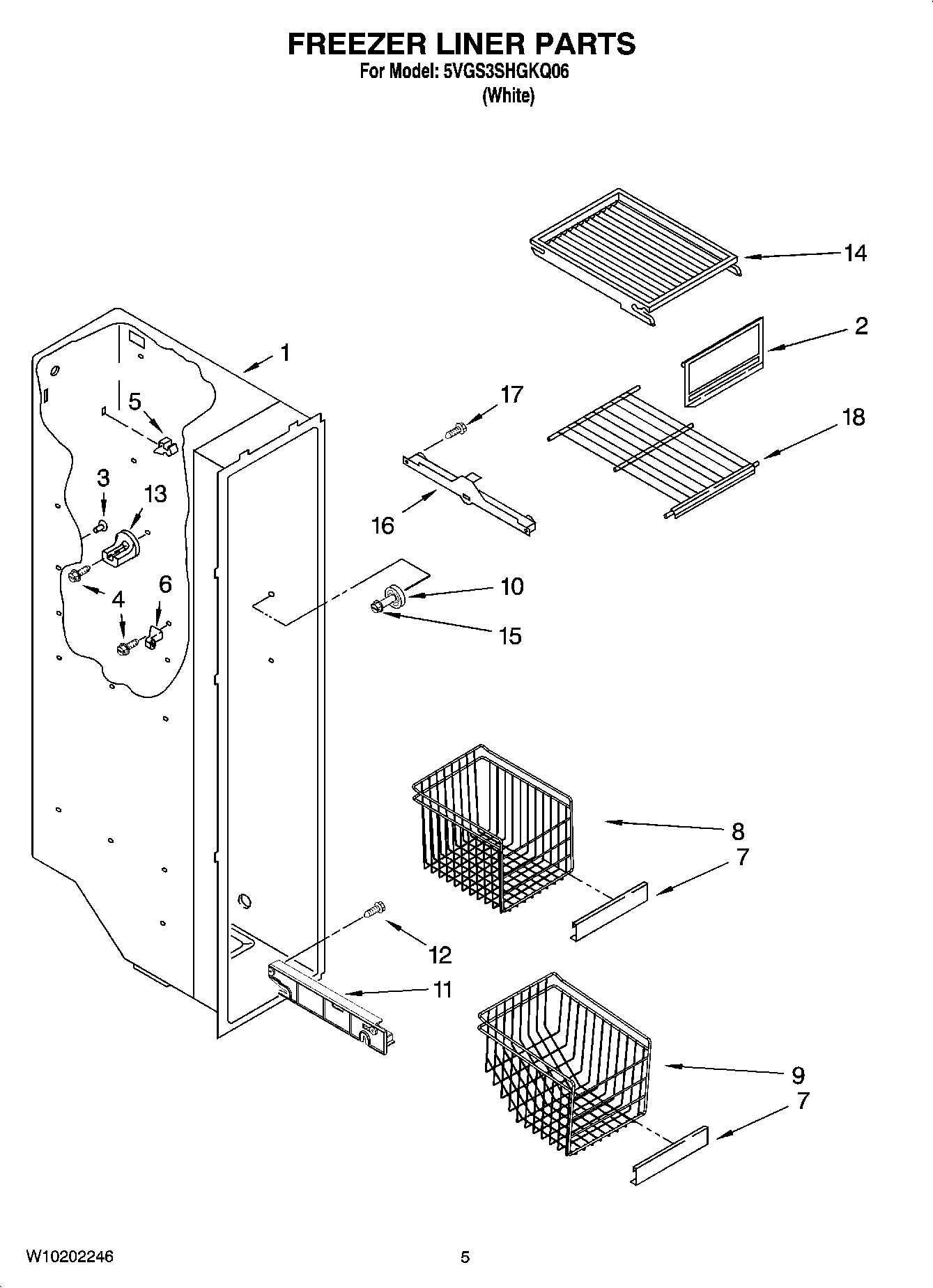

5VGS3SHGKQ06 04 – FREEZER LINER PARTS

5VGS3SHGKQ06 04 – FREEZER LINER PARTS

Written by

in

5VGS3SHGKQ06 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
22171712 Whirlpool Refrigerator Ice Door
3Grommet
4W10142289 Whirlpool Air Conditioner Screw
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
72195904K Whirlpool Refrigerator Basket Trim
8Basket, Tall
9Basket, Slope
10WP2196483 Whirlpool Refrigerator Shelf Stud
11Slide, Basket (Left Side)
11WP2261449 Whirlpool Refrigerator Track
12W10759522 Whirlpool Screw
13Stud, Rear
14Slide, Ice Door
15WP3400806 Whirlpool Screw
16W10845585 Whirlpool Refrigerator Track
16W10845583 Whirlpool Refrigerator Track
17718257 Whirlpool Dishwasher Screw
18WP2174249K Whirlpool Refrigerator Wire Shelf
