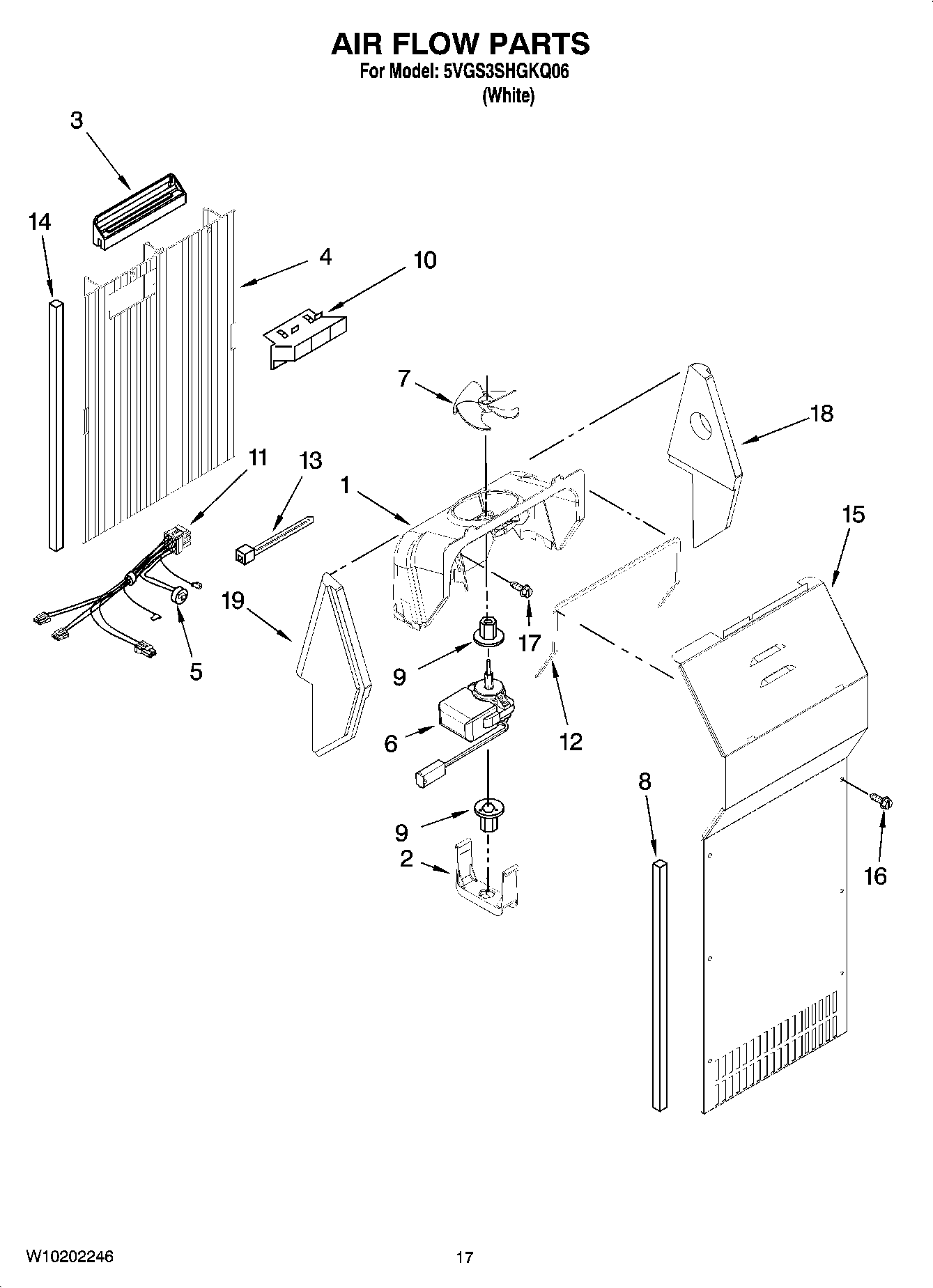

5VGS3SHGKQ06 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Diffuser, Air Duct
44388357 Whirlpool Refrigerator Evaporator Cover
5Bi-Metal, Defrost
6WP2321275 Whirlpool Refrigerator Evaporator Motor
7WP2169142 Whirlpool Fan Blade
8WP2304241 Whirlpool Refrigerator Gasket
9WP2176759 Whirlpool Refrigerator Grommet
102182146 Whirlpool Refrigerator Duct
11W10242395 Whirlpool Wire Harness
12WP2155789 Whirlpool Refrigerator Gasket
13WPW10339879 Whirlpool Wire Tie
144388500 Whirlpool Refrigerator Gasket
164389654 Whirlpool Screw
17WP489478 Whirlpool Refrigerator Screw
184388358 Whirlpool Refrigerator Support Bracket
