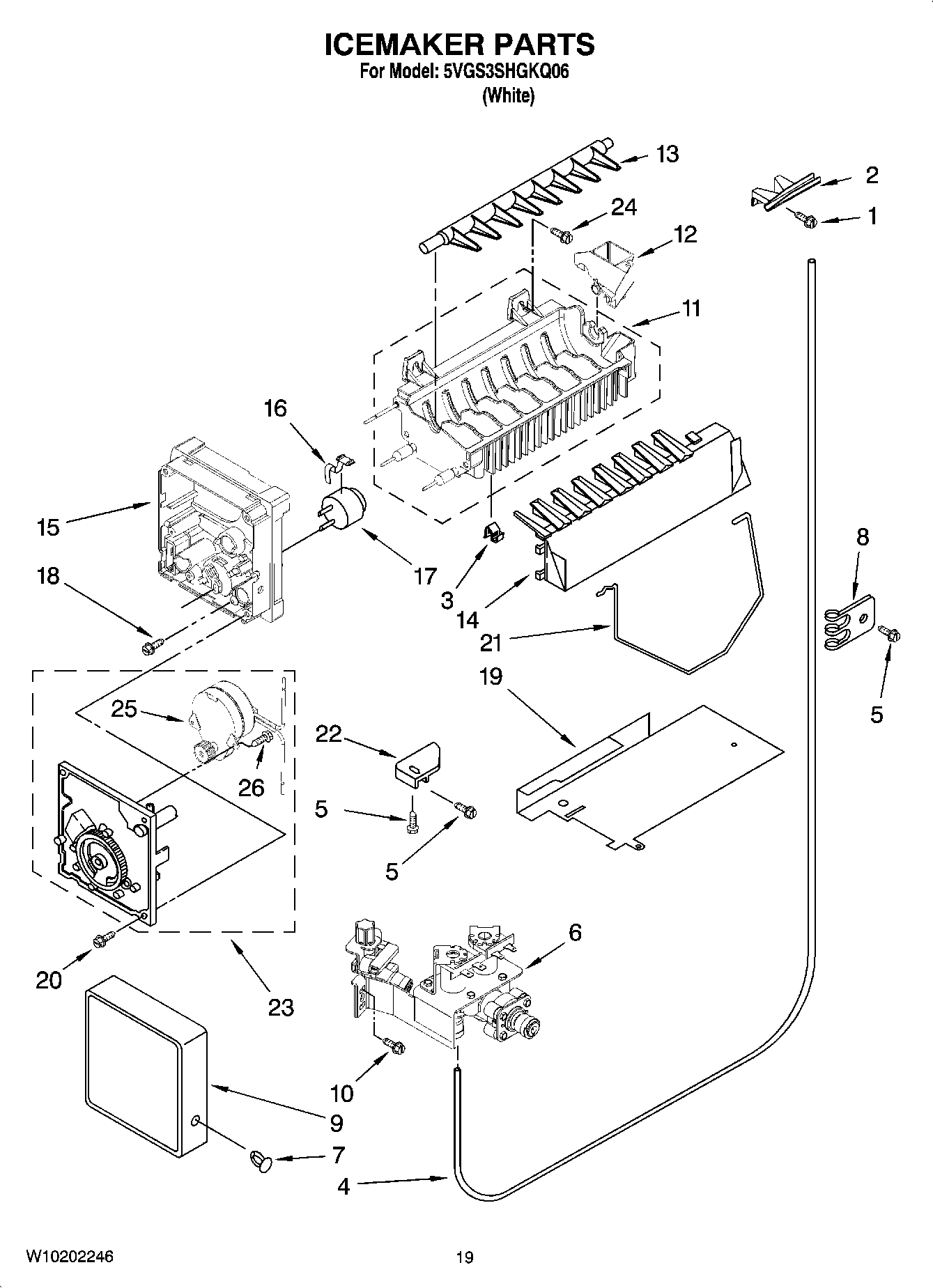

5VGS3SHGKQ06 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

5VGS3SHGKQ06 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

5VGS3SHGKQ06 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
Miscellaneous
350942 Whirlpool Spray Paint
TORX SCREW WRENCH
72017 Whirlpool Appliance Touch-Up Paint White
212643 Whirlpool Refrigerator Permagum Sealer
799344 Whirlpool Refrigerator Paint
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6WPW10158157 Whirlpool Refrigerator Inlet Valve
7WP489115 Whirlpool Refrigerator Rivet
8WP488366 Whirlpool Refrigerator Clamp
9WPW10289690 Whirlpool Ice Maker Cover
10WPW10141625 Whirlpool Refrigerator Screw Assembly
11WPW10122523 Whirlpool Refrigerator Ice Mold
12W10122561 Whirlpool Refrigerator Cup Fill
13WP627843 Whirlpool Refrigerator Ejector Arm
14WP2182124 Whirlpool Refrigerator Stripper Arm
15WP2195914 Whirlpool Refrigerator Ice Maker Housing
16WP2315522 Whirlpool Refrigerator Clip
17WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
18W10001240 Whirlpool Refrigerator Screw
192256178 Whirlpool Shield Assembly
21W11342242 Whirlpool Refrigerator Ice Level Arm
22W11500948 Whirlpool Refrigerator Bracket
24WP488163 Whirlpool Refrigerator Screw
25W10190933 Whirlpool Refrigerator Motor Assembly
26Screw
100Complete Icemaker Assembly
