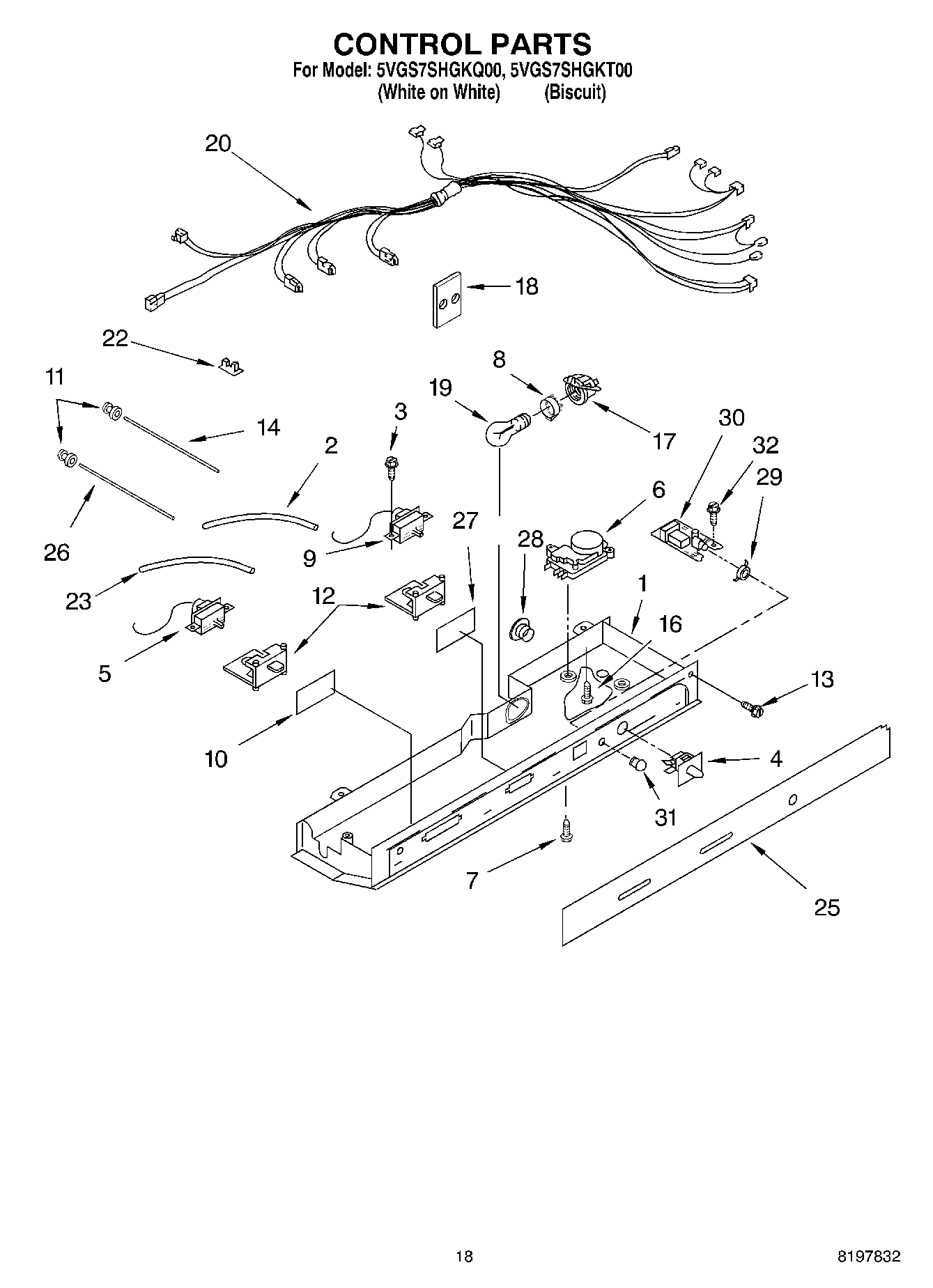

5VGS7SHGKT00 11 – CONTROLadmin2025-04-26T12:21:41+00:005VGS7SHGKT00 11 – CONTROL ProductsPositionProduct12200135 Whirlpool Refrigerator Control Box2WP2196003 Whirlpool Refrigerator Bar Riser4WP2149705 Whirlpool Refrigerator Door Switch5Thermostat (FC)6WP2188379 Whirlpool Refrigerator Defrost Timer7489392 Whirlpool Refrigerator Screw8WP2175210 Whirlpool Refrigerator Shroud9WP2161460 Whirlpool Refrigerator Thermostat102172940 Whirlpool Window11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19WP67002552 Whirlpool Refrigerator Light Bulb20Control Box Harness22CLIP, WIRING25Escutcheon, Control Box26Light Bar (FC)27Window28940014 Whirlpool Refrigerator Primary Button Plug29Retainer, Light Lens30P.C. Board Filter Indicator31COVER, LIGHT LENS322006254 Whirlpool Refrigerator Screw
