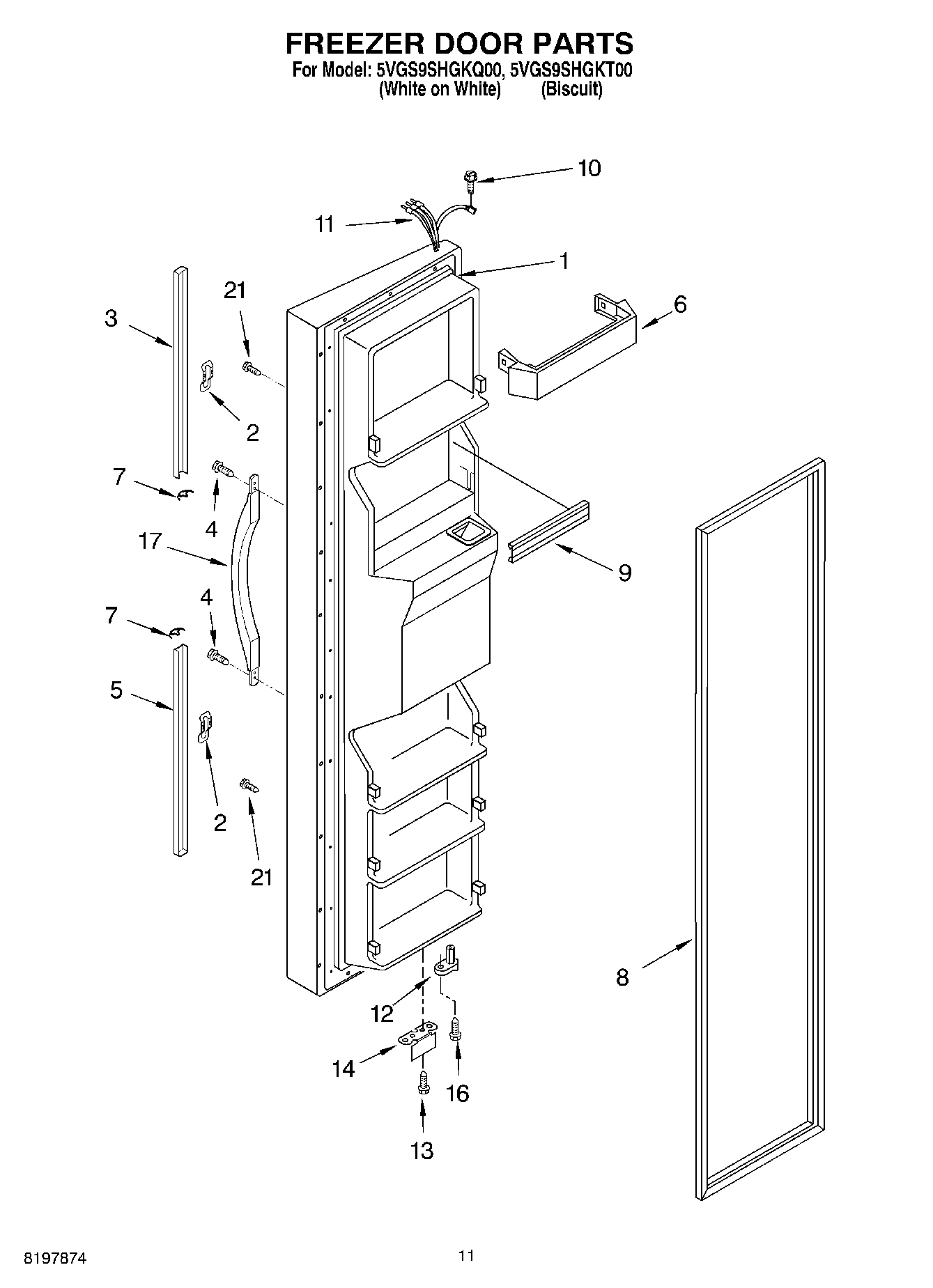

5VGS9SHGKT00 07 – FREEZER DOOR

5VGS9SHGKT00 07 – FREEZER DOOR

Written by

in

5VGS9SHGKT00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
2WP2195327 Whirlpool Refrigerator Clip
3Trim, Door-Top (Biscuit)
3Trim, Door-Top (White)
4WP489491 Whirlpool Refrigerator Screw
5Trim, Door-Bottom (Biscuit)
5Trim, Door-Bottom (White)
6WP2171157 Whirlpool Shelf Trim
7Jewelry, Handle
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
16WP3400012 Whirlpool Refrigerator Screw
17Handle (Biscuit)
17Handle (White)
21WP3400852 Whirlpool Refrigerator Screw
