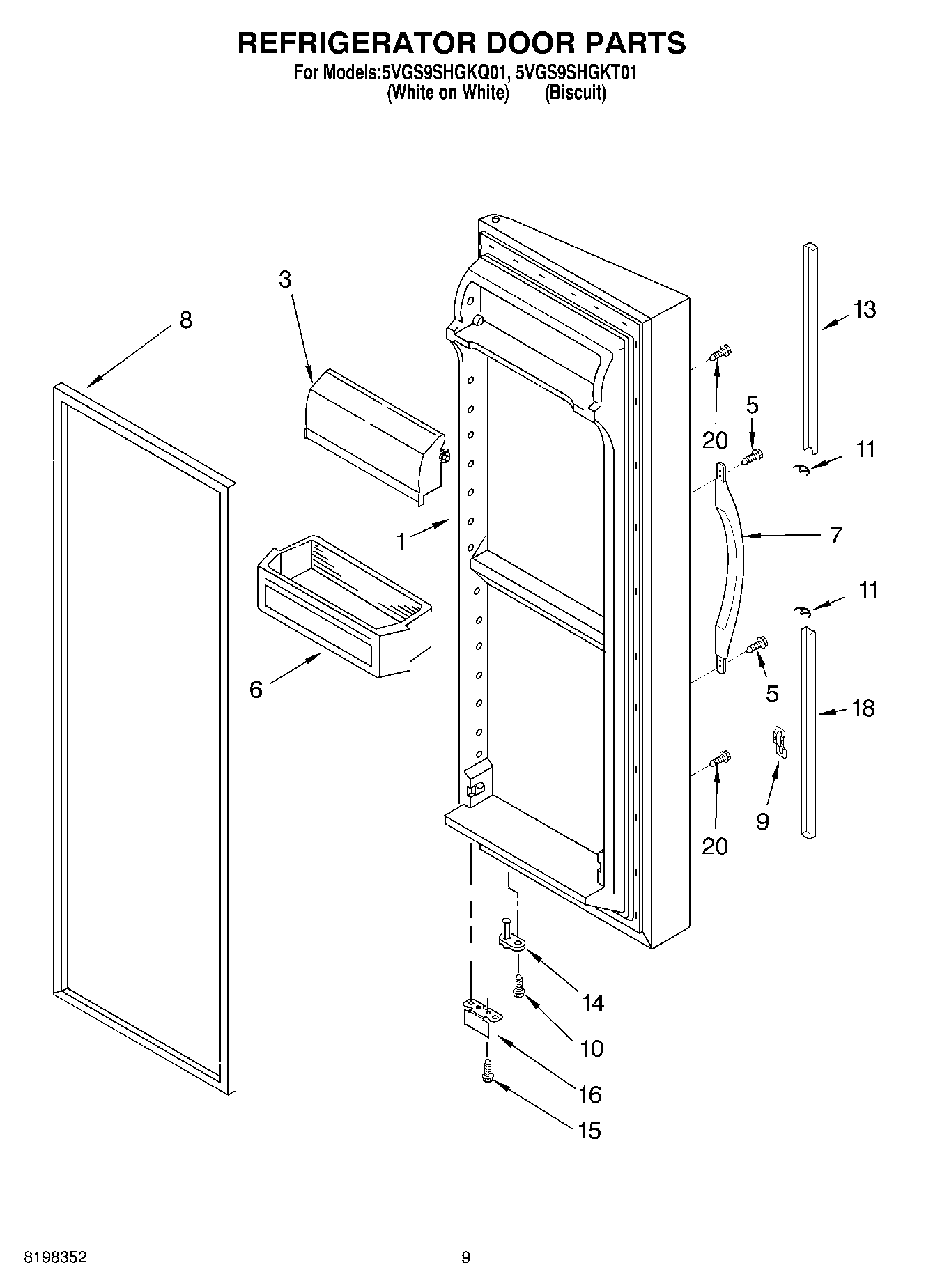

5VGS9SHGKT01 06 – REFRIGERATOR DOOR

5VGS9SHGKT01 06 – REFRIGERATOR DOOR

Written by

in

5VGS9SHGKT01 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.6) (White)
1Refrigerator Door (Includes Item No.6) (Biscuit)
3WP2256101 Whirlpool Dairy Door
5WP489491 Whirlpool Refrigerator Screw
6WP2203872 Whirlpool Refrigerator Cantilever Bin
7Handle (Biscuit)
7Handle (White)
82159075 Whirlpool Door Gasket Seal
9WP2195327 Whirlpool Refrigerator Clip
10WP3400012 Whirlpool Refrigerator Screw
11Jewelry, Handle
13Trim, Door-Top (White)
13Trim, Door-Top (Biscuit)
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop
18Trim, Door-Bottom (Biscuit)
18Trim, Door-Bottom (White)
20WP3400852 Whirlpool Refrigerator Screw
