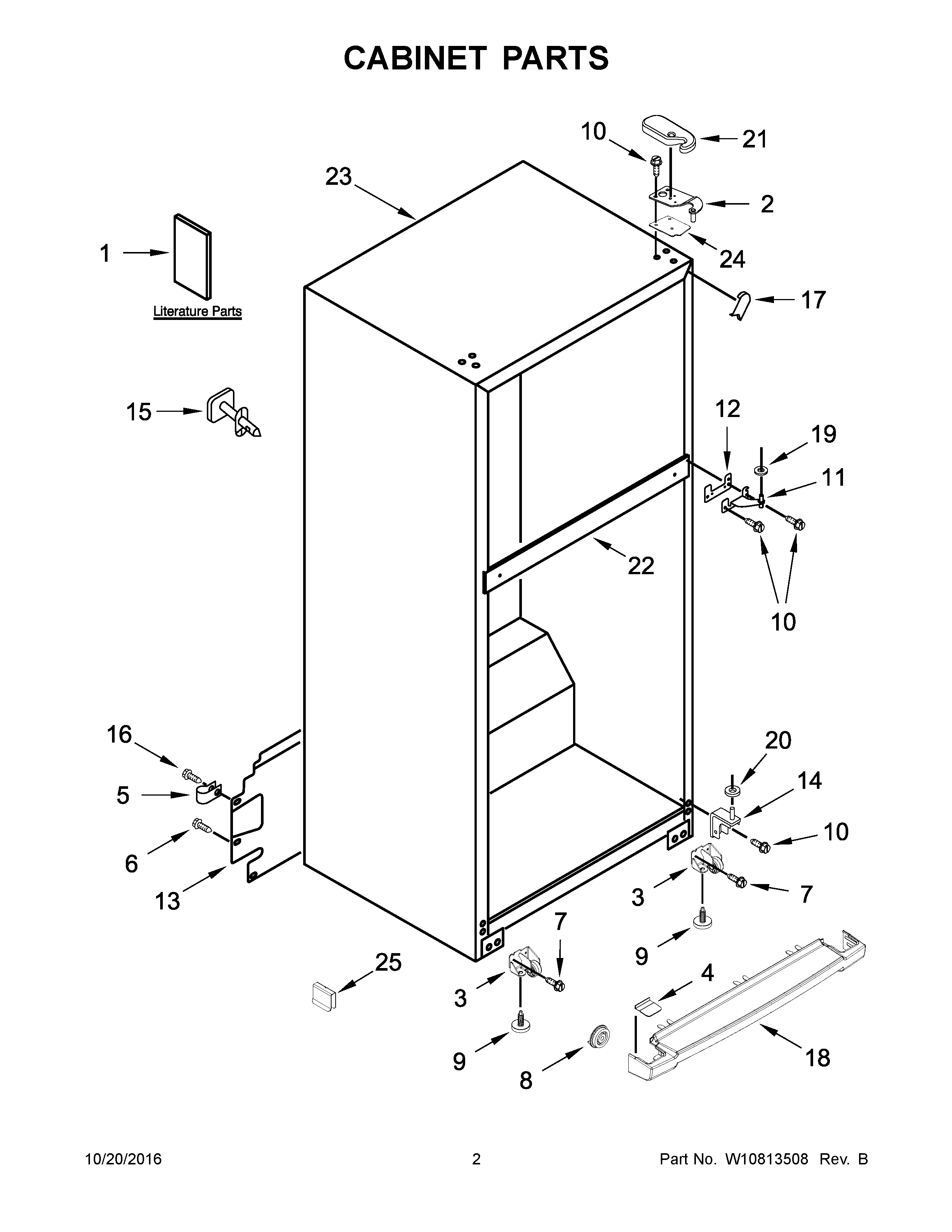

5VM1BXGFYA00 02 – CABINET PARTS

5VM1BXGFYA00 02 – CABINET PARTS

Written by

in

5VM1BXGFYA00 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10462294
1MAY W10469940
2MAY W10300069
3ROLLER, FRONT (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
4COVER, TOE GRILLE (GREY)
5MAY 489348
6MAY 489442
7MAY W10142287
8DRUM, TOE GRILLE
9Brake, Foot
10MAY 489497
11MAY 2254618
12MAY 2183852
13MAY W10425028
14MAY 2254473
16MAY 489427
17FILLER, CORNER (GREY)
18MAY W10353944
19WASHER, PLASTIC
20Washer (1/16)
21ACOVER, HINGE (RIGHT HAND (GREY))
21COVER, HINGE (LEFT HAND (GREY))
23LINER (NOT A SERVICEABLE PART)
24MAY W10883637
25CLIP, ROLLER
