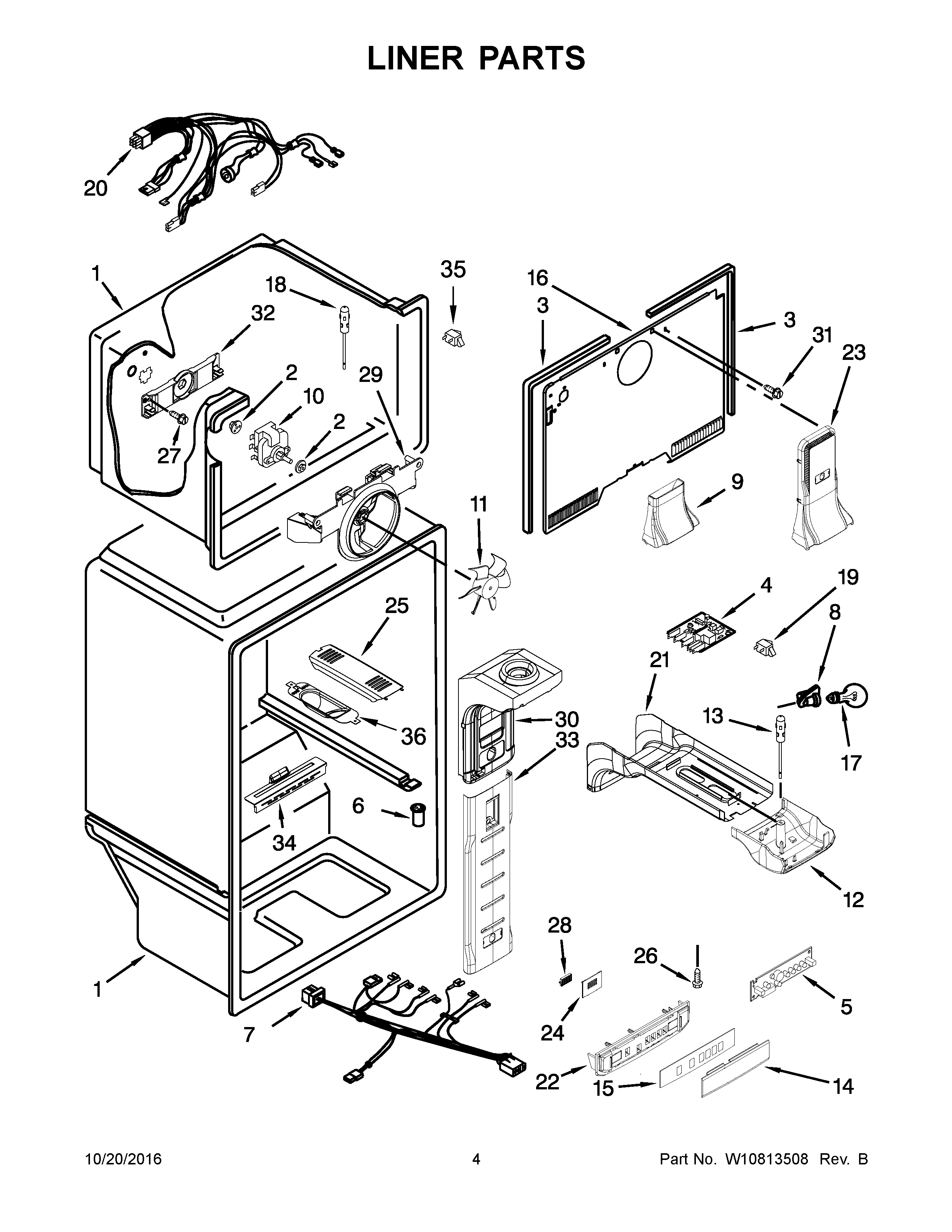

5VM1BXGFYA00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
4	MAY W10392195
5	MAY W10341559
6	MAY 2210509
7	MAY W10557787
8	MAY W10134764
9	ASSEMBLY, TOWER CONNECTION
10	MAY W10173141
11	MAY 2200509
12	MAY W10459450
13	THERMISTOR
14	LENS, FASCIA
15	MAY W10356943
16	MAY W10385129
17	BULB, LIGHT
18	THERMISTOR, EVAPORATOR
19	MAY 1118894
20	MAY W10637611
21	MAY W10305175
22	MAY W10383443
23	TOWER, AIR
24	GRILLE, AIR FILTER BOTTOM
25	LIGHT COVER, RC
26	MAY 489442
27	Screw
28	FILTER, AIR
29	MAY W10321162
30	AIR DIFFUSER BOTTOM
31	MAY 489478
32	Bracket, Fan Back
33	TOWER, MULTIFLOW AIR
34	MAY W10345375
35	SWITCH, ROCKER ARM
36	MAY W10300161
