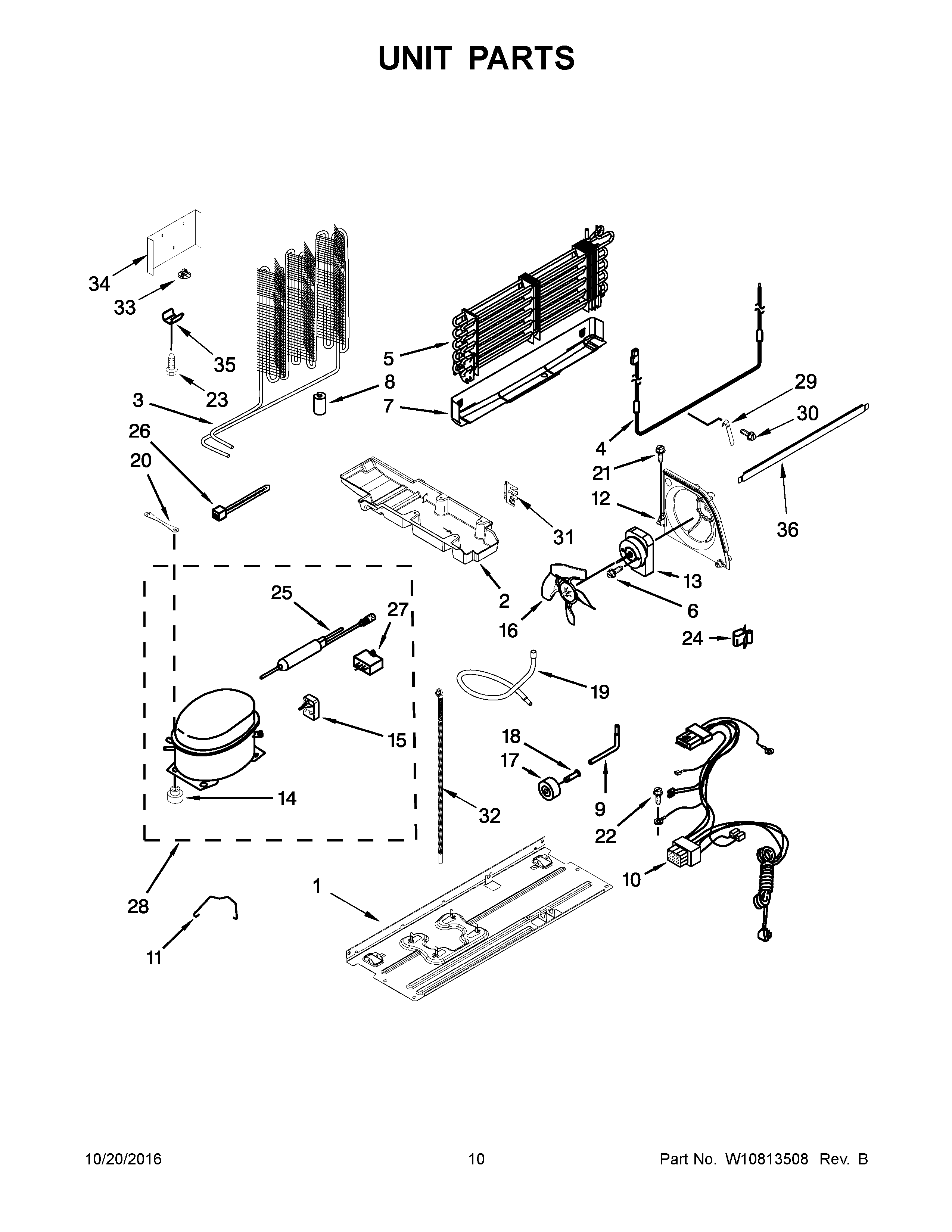

5VM1BXGFYA00 06 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16``)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (3/4``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
1	PLATE, UNIT MOUNTING
2	TRAY, DRAIN
3	CONDENSER
4	MAY W10405108
5	EVAPORATOR ASSY.
7	MAY W10314195
8	GROMMET, CONDENSER
9	MAY VS20001
10	MAY W10637517
11	STRAP, BALE
12	MAY 2315541
13	MOTOR, CONDENSER
14	GROMMET
15	START DEVICE
16	MAY W10817071
17	MAY W10475495
18	MAY 2179826
19	MAY W10466682
20	MAY W10236396
21	MAY 8533961
22	MAY 488500
23	MAY 8281232
24	MAY 2326941
25	DRIER
26	MAY 2263990
27	CAPACITOR
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY 2258429
30	MAY 489478
31	BRACKET, EVAPORATOR
32	MAY W10475011
33	MAY W10815861
34	MAY W10349515
35	CLIP, CONDENSER
36	MAY W10300902
