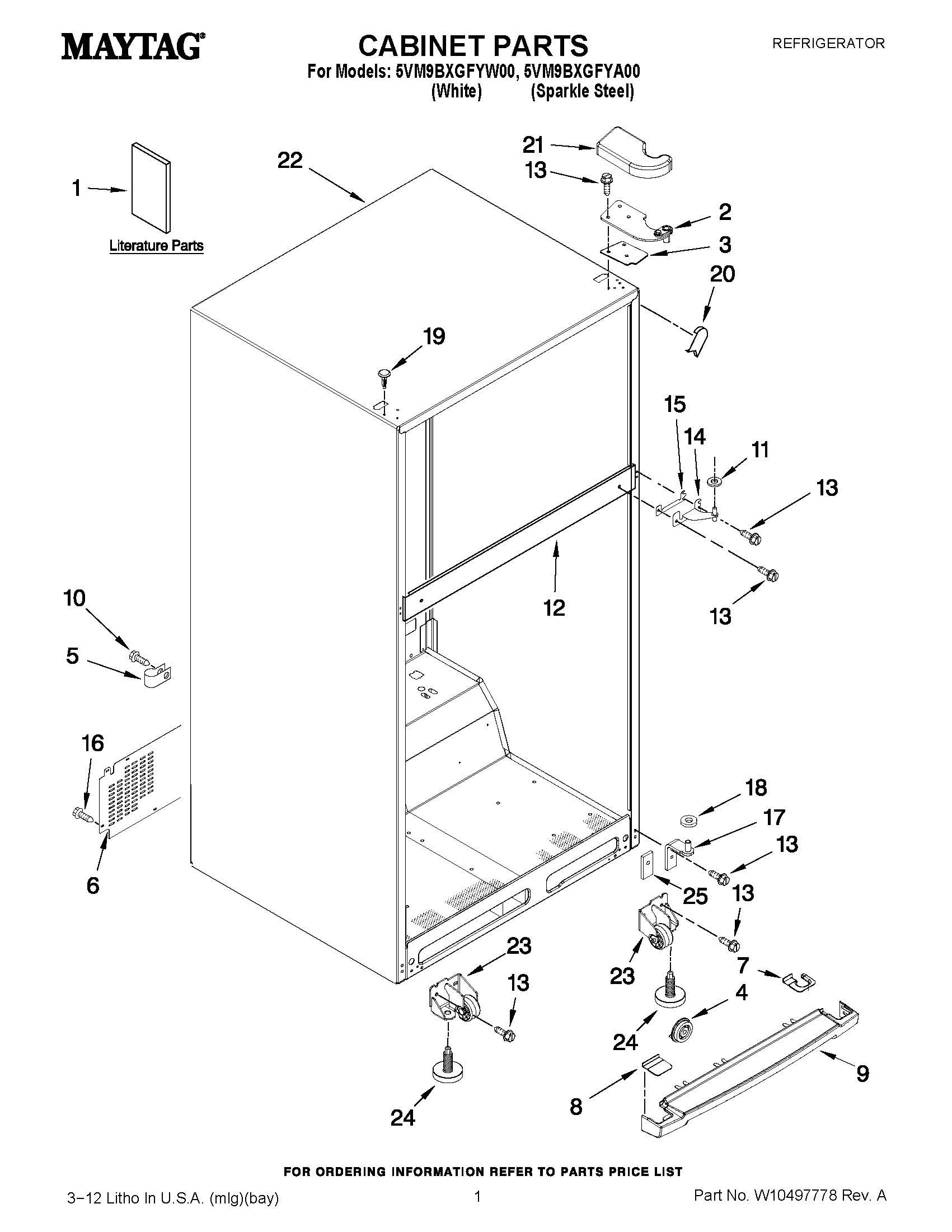

5VM9BXGFYA00 01 – CABINET PARTSadmin2025-04-26T11:27:49+00:005VM9BXGFYA00 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WIRING SHEET ARABIAN |
| 1 | MAY W10469939 |
| 1 | MAY W10462294 |
| 2 | HINGE (TOP) |
| 2 | MAY W10337503 |
| 3 | MAY W10338247 |
| 4 | DRUM, TOE GRILLE |
| 5 | CLAMP, TUBE |
| 6 | MAY W10425027 |
| 7 | ENDCAP, GRILLE HINGE (MIDNIGHT GREY) |
| 7 | ENDCAP, GRILLE HINGE (WHITE) |
| 8 | COVER, TOE GRILLE (GREY) |
| 8 | ENDCAP, GRILLE (WHITE) |
| 9 | MAY W10326386 |
| 9 | MAY W10353938 |
| 10 | MAY 2262176 |
| 11 | WASHER, PLASTIC |
| 13 | MAY 489497 |
| 14 | MAY 2254618 |
| 15 | MAY 2183852 |
| 16 | MAY 8281265 |
| 17 | MAY 2254473 |
| 18 | Washer (1/16) |
| 19 | PLUG, HOLE (GREY) |
| 19 | HOLE PLUG |
| 20 | FILLER, CORNER (GREY) |
| 20 | CORNER FILLER (WHITE) |
| 21 | COVER, HINGE (WHITE, LS) |
| 21 | COVER, HINGE (LEFT HAND (GREY)) |
| 21 | COVER, HINGE (RIGHT HAND (GREY)) |
| 21 | COVER, HINGE (WHITE, RS) |
| 22 | LINER (NOT A SERVICEABLE PART) |
| 23 | ROLLER, FRONT (RIGHT HAND) |
| 23 | ROLLER, FRONT (LEFT HAND) |
| 24 | Brake, Foot |
| 25 | MAY W10474788 |
