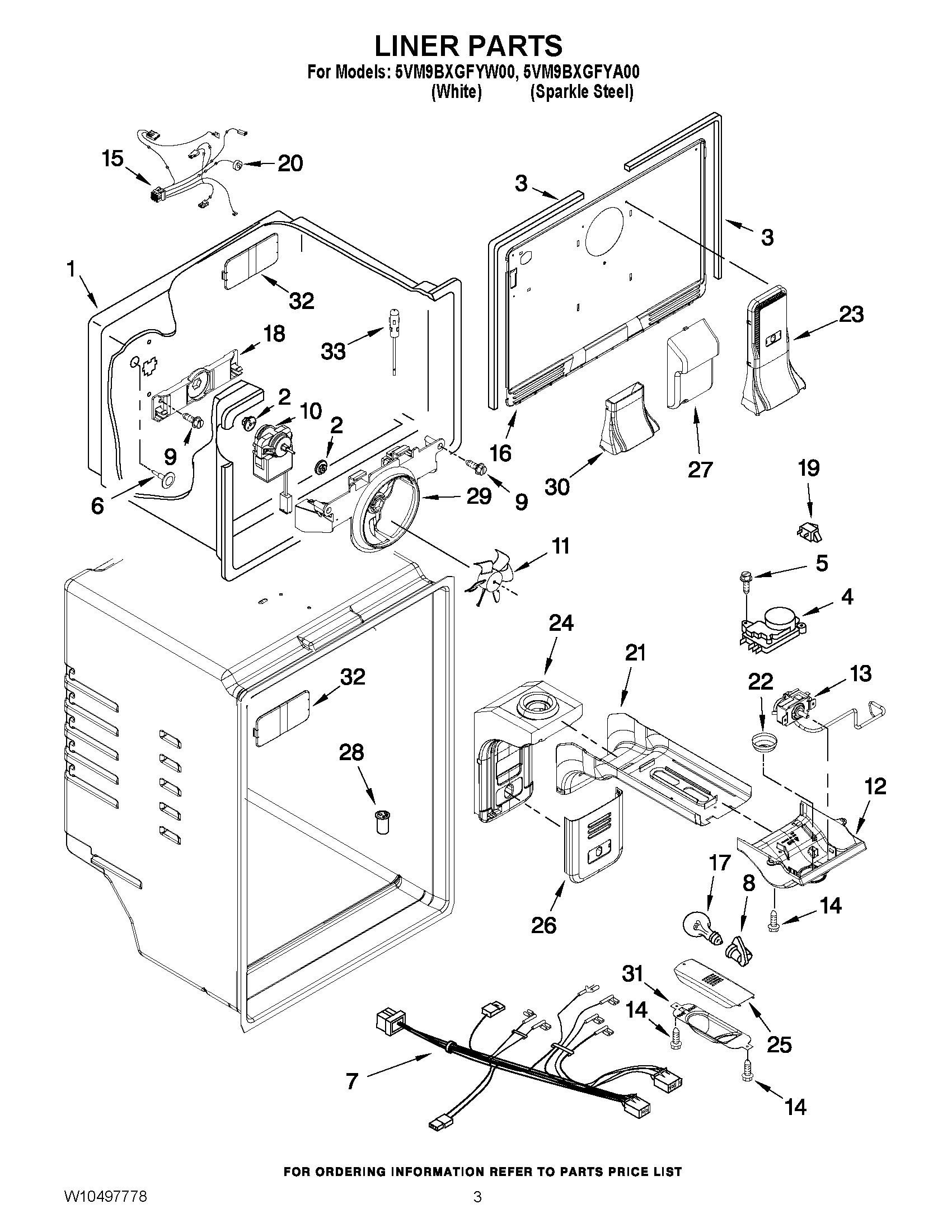

5VM9BXGFYA00 02 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254359
4	MAY 2321259
5	MAY 97787
6	MAY 941839
7	MAY W10403661
8	MAY W10134764
9	Screw
10	MAY W10173141
11	MAY 2200509
12	MAY W10440730
13	THERMOSTAT ASSEMBLY
14	MAY 489174
15	MAY W10495656
16	COVER-EVAPORATOR
17	BULB, LIGHT
18	Bracket, Fan Back
19	MAY 1118894
20	DEFROST, BI-METAL
21	MAY W10459451
22	KNOB
23	TOWER, AIR
24	AIR DIFFUSER ASSEMBLY
25	LIGHT COVER, RC
26	MAY W10310927
27	MAY W10339203
28	MAY 2210509
29	MAY W10321162
30	ASSEMBLY, TOWER CONNECTION
31	MAY W10300161
32	CUP, SCREW
33	THERMISTOR, EVAPORATOR
